OpenLxApp::WallStandardCase Class Reference
TThe WallStandardCase defines a wall with certain constraints for the provision of parameters and with certain constraints for the geometric representation. The WallStandardCase handles all cases of walls, that are extruded vertically: More...
#include <WallStandardCase.h>

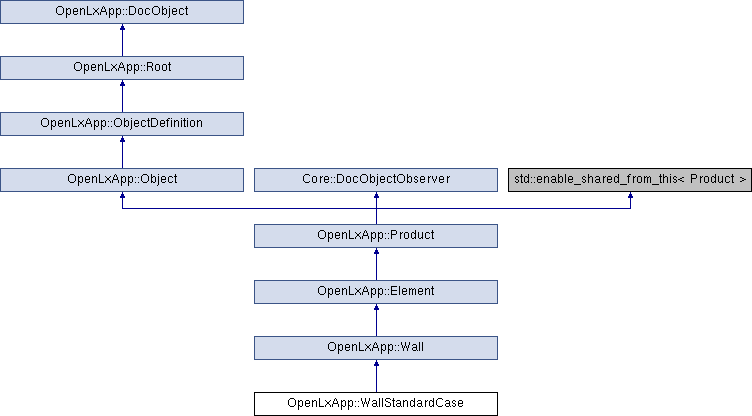

Inheritance diagram for OpenLxApp::WallStandardCase:
Public Member Functions | |
| virtual | ~WallStandardCase (void) |
| virtual bool | setGeometry (std::shared_ptr< Geometry > geo) override |
 Public Member Functions inherited from OpenLxApp::Wall | |
| void | setPredefinedType (WallTypeEnum aType) |
| WallTypeEnum | getPredefinedType () const |
| virtual | ~Wall (void) |
| Public Member Functions inherited from OpenLxApp::Element | |
| virtual | ~Element (void) |
| void | setPlacementRelativeTo (std::shared_ptr< Element > other) |
| void | setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition) |
| std::shared_ptr< Element > | getPlacementRelativeTo () const |
| bool | setLayer (int layernumber) |
| int | getLayer () const |
| void | addOpeningElement (std::shared_ptr< OpeningElement > aOpening) |
| void | removeOpeningElement (std::shared_ptr< OpeningElement > aOpening) |
| void | removeOpeningElements () |
| std::vector< std::shared_ptr< OpeningElement > > | getOpeningElements () const |
| void | addSubElement (std::shared_ptr< SubElement > aSubElement) |
| std::vector< std::shared_ptr< SubElement > > | getSubElements () const |
| void | removeSubElement (std::shared_ptr< SubElement > aSubElement) |
| void | removeSubElements () |
| std::shared_ptr< OpeningElement > | getFilledOpeningElement () const |
| void | setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition) |
| void | removeAssociatedMaterial () |
| std::shared_ptr< MaterialSelect > | getAssociatedMaterial () const |
| bool | isTemporary () const |
| void | setTemporary (bool on) |
| std::shared_ptr< Group > | getGroup () const |
| std::shared_ptr< Element > | copy () const |
| Topo::Cdwk_SAT_Attributes | get_Cdwk_SAT_Attributes () const |
| Base::String | getTag () const |
| void | setTag (const Base::String &aTag) |
| void | setCdwkAttributeData (const CdwkAttributeData &aData) |
| Public Member Functions inherited from OpenLxApp::Product | |
| virtual | ~Product (void) |
| std::shared_ptr< Geometry > | getGeometry () const |
| Geom::Trsf | getGeometryToWorldTransform () const |
| Geom::Bnd_Box | getBoundingBox () const |
| Geom::Ax2 | getLocalPlacement () const |
| void | setLocalPlacement (const Geom::Ax2 &pos) |
| Geom::Trsf | getTransform () const |
| Geom::Trsf | getLocalToWorldTransform () const |
| void | setTransform (const Geom::Trsf &t) |
| void | translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS) |
| void | rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS) |
| bool | getLocalAxes (Geom::Ax2 &localAxes) |
| void | setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength) |
| pConstShape | getShape () const |
| pConstShape | getLocalShape () const |
| void | setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1) |
| Draw::OglMaterial | getOglMaterial () const |
| void | setAmbientColor (const Base::Color &aCol) |
| void | setDiffuseColor (const Base::Color &aCol) |
| void | setSpecularColor (const Base::Color &aCol) |
| void | setEmissiveColor (const Base::Color &aCol) |
| void | setReflectiveColor (const Base::Color &aCol) |
| void | setShininess (int aVal) |
| void | setTransparency (int aVal) |
| void | setDrawStyle (const Draw::DrawStyle &ds) |
| Draw::DrawStyle | getDrawStyle () const |
| void | setLineWidth (float width) |
| void | setTexture (const Draw::Texture2 &tex, int faceIndex=-1) |
| void | setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform()) |
| std::shared_ptr< SpatialStructureElement > | getSpatialStructure () const |
| void | setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement) |
| void | setPositionNb (long value) |
| long | getPositionNb () const |
| bool | isVisible () const |
| void | setVisible (bool onoff) |
| bool | registerPythonClass (const std::string &aClassName, const std::string &aParentClassName) |
| virtual Base::GlobalId | getGlobalClassId () const |
| std::shared_ptr< PropertyInteger > | registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyEnum > | registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyDouble > | registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyButton > | registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyBool > | registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyString > | registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyColor > | registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< OpenLxApp::Property > | getProperty (const std::string &aName) const |
| std::map< std::string, std::shared_ptr< Property > > | getPropertyMap () const |
| std::shared_ptr< PropertyInteger > | getPropertyInteger (const std::string &aName) const |
| std::shared_ptr< PropertyEnum > | getPropertyEnum (const std::string &aName) const |
| std::shared_ptr< PropertyDouble > | getPropertyDouble (const std::string &aName) const |
| std::shared_ptr< PropertyButton > | getPropertyButton (const std::string &aName) const |
| std::shared_ptr< PropertyBool > | getPropertyBool (const std::string &aName) const |
| std::shared_ptr< PropertyString > | getPropertyString (const std::string &aName) const |
| std::shared_ptr< PropertyColor > | getPropertyColor (const std::string &aName) const |
| bool | isRegisteredProperty (const std::string &aName) const |
| virtual void | onPropertyChanged (const std::string &aPropertyName) |
| virtual void | onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt) |
| virtual void | translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt) |
| void | setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy) |
| void | setPropertyHeader (const Base::String &aDefaultName, int aTranslationId) |
| void | setPropertyHeader (const Base::String &aDefaultName) |
| void | setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId) |
| void | setPropertyGroupName (const Base::String &aDefaultName) |
| Base::String | getPropertyHeader () const |
| Base::String | getPropertyGroupName () const |
| std::shared_ptr< PropertyUser > | getPropertyUser (const std::string &aName) const |
| std::vector< std::shared_ptr< PropertyUser > > | getPropertyUser () const |
| std::vector< Base::String > | getPropertySetNames () const |
| std::shared_ptr< PropertySet > | getPropertySetByName (const Base::String &aName) const |
| ExternalPythonTypeObject * | getExternalPythonTypeObject () const |
| void | setExternalPythonTypeObject (ExternalPythonTypeObject *aObj) |
| void | removeExternalTypeObject () |
| Public Member Functions inherited from OpenLxApp::Object | |
| virtual | ~Object (void) |
| Public Member Functions inherited from OpenLxApp::ObjectDefinition | |
| virtual | ~ObjectDefinition (void) |
| std::vector< std::shared_ptr< ObjectDefinition > > | getDecompositionObjects () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllDecompositionObjects () const |
| std::shared_ptr< ObjectDefinition > | getDecomposedObject () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllDecomposedObjects () const |
| void | addAggregationObject (std::shared_ptr< ObjectDefinition > aObject) |
| void | addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects) |
| void | removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject) |
| void | removeAggregationObjects () |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAggregationObjects () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllAggregationObjects () const |
| std::shared_ptr< ObjectDefinition > | getAggregatedObject () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllAggregatedObjects () const |
| void | addAssociationObject (std::shared_ptr< Root > aObject) |
| std::vector< std::shared_ptr< Root > > | getAssociationObjects () const |
| std::shared_ptr< LxIfcBase::LxIfcProperty > | getIfcPropertySets () const |
| Public Member Functions inherited from OpenLxApp::Root | |
| void | setUserName (const Base::String &aName) |
| Base::String | getUserName () const |
| virtual | ~Root (void) |
| Base::GlobalId | getGlobalId () const |
| bool | setGlobalId (const Base::GlobalId &aGlobalId) |
| Public Member Functions inherited from OpenLxApp::DocObject | |
| std::shared_ptr< Document > | getDocument () const |
| bool | isNew () const |
| bool | isUpdated () const |
| bool | isValid () const |
| bool | hasErrors () const |
| void | touch () |
| LxIfc4::LxIfc4EntityEnum | getEntityType () const |
| std::string | getEntityTypeAsString () const |
| std::shared_ptr< Core::DbgInfo > | getDbgInfo () const |
| DocObject (Core::DocObject *aObject) | |
| virtual | ~DocObject (void) |
| Core::DocObject * | __getObj__ () const |
| Public Member Functions inherited from Core::DocObjectObserver | |
| virtual | ~DocObjectObserver () |
Protected Member Functions | |
| WallStandardCase () | |
| Protected Member Functions inherited from OpenLxApp::Wall | |
| Wall () | |
| Protected Member Functions inherited from OpenLxApp::Element | |
| Element () | |
| void | _copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const |
| Protected Member Functions inherited from OpenLxApp::Product | |
| void | onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override |
| Product () | |
| Protected Member Functions inherited from OpenLxApp::Object | |
| Object () | |
| Protected Member Functions inherited from OpenLxApp::ObjectDefinition | |
| ObjectDefinition () | |
| Protected Member Functions inherited from OpenLxApp::Root | |
| Root () | |
| Protected Member Functions inherited from OpenLxApp::DocObject | |
| DocObject () | |
Additional Inherited Members | |
| Public Types inherited from OpenLxApp::Wall | |
| enum | WallTypeEnum { WallTypeEnum::MOVABLE, WallTypeEnum::PARAPET, WallTypeEnum::PARTITIONING, WallTypeEnum::PLUMBINGWALL, WallTypeEnum::SHEAR, WallTypeEnum::SOLIDWALL, WallTypeEnum::STANDARD, WallTypeEnum::POLYGONAL, WallTypeEnum::ELEMENTEDWALL, WallTypeEnum::USERDEFINED, WallTypeEnum::NOTDEFINED } |
| Protected Attributes inherited from OpenLxApp::DocObject | |
| Core::DocObject * | _coreObj = nullptr |
Detailed Description
TThe WallStandardCase defines a wall with certain constraints for the provision of parameters and with certain constraints for the geometric representation. The WallStandardCase handles all cases of walls, that are extruded vertically:
- along the positive z axis of the wall object coordinate system, and
- along the positive z axis of the global (world) coordinate system
and have a single thickness along the path for each wall layer, i.e.:
- parallel sides for straight walls
- co-centric sides for curved walls.
and have either:
- a straight line axis (straight wall), or
- a circular arc axis (round wall).
and shall not have
- aggregated components, that is, parts aggregated to a wall by RelAggregates
- shape representation for 'Body' not being an extrusion, or clipped extrusion
The following parameter have to be provided:
Constructor & Destructor Documentation
◆ ~WallStandardCase()
|
virtual |
◆ WallStandardCase()
|
inlineprotected |
Member Function Documentation
◆ setGeometry()
|
overridevirtual |
Reimplemented from OpenLxApp::Product.
The documentation for this class was generated from the following file:
- D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/OpenLxApp/include/OpenLxApp/WallStandardCase.h
