OpenLxApp::Geometry Class Reference
Geometric Items

Super-class of all Geometries (aka GeometricRepresentationItems) More...

#include <Geometry.h>

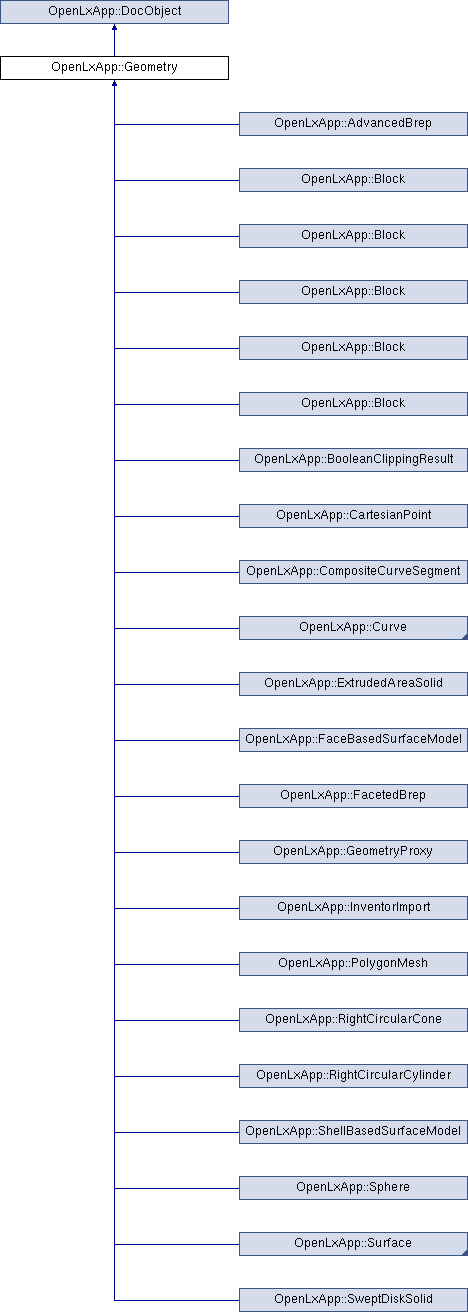

Inheritance diagram for OpenLxApp::Geometry:
OpenLxApp::DocObject OpenLxApp::AdvancedBrep OpenLxApp::Block OpenLxApp::Block OpenLxApp::Block OpenLxApp::Block OpenLxApp::Block OpenLxApp::BooleanClippingResult OpenLxApp::CartesianPoint OpenLxApp::CompositeCurveSegment OpenLxApp::Curve OpenLxApp::ExtrudedAreaSolid OpenLxApp::FaceBasedSurfaceModel OpenLxApp::FacetedBrep OpenLxApp::GeometryProxy OpenLxApp::InventorImport OpenLxApp::PolygonMesh OpenLxApp::RightCircularCone OpenLxApp::RightCircularCylinder OpenLxApp::ShellBasedSurfaceModel OpenLxApp::Sphere OpenLxApp::Surface OpenLxApp::SweptDiskSolid

Public Member Functions

virtual ~Geometry (void)

pShape computeShape (bool checkShape=false)

pConstShape getShape (void) const

double getPrecision () const

void setPrecision (double p)

Geom::Bnd_Box getBoundingBox () const

- Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document > getDocument () const

bool isNew () const

bool isUpdated () const

bool isValid () const

bool hasErrors () const

void touch ()

LxIfc4::LxIfc4EntityEnum getEntityType () const

std::string getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo > getDbgInfo () const

 DocObject (Core::DocObject *aObject)

virtual ~DocObject (void)

Core::DocObject * __getObj__ () const


Protected Member Functions

 Geometry ()

- Protected Member Functions inherited from OpenLxApp::DocObject
 DocObject ()


Additional Inherited Members

- Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject * _coreObj = nullptr


Detailed Description

Super-class of all Geometries (aka GeometricRepresentationItems)

Constructor & Destructor Documentation

◆ ~Geometry()

virtual OpenLxApp::Geometry::~Geometry ( void  )
virtual

◆ Geometry()

OpenLxApp::Geometry::Geometry ( )
inlineprotected

Member Function Documentation

◆ computeShape()

pShape OpenLxApp::Geometry::computeShape ( bool  checkShape = false)

◆ getBoundingBox()

Geom::Bnd_Box OpenLxApp::Geometry::getBoundingBox ( ) const

◆ getPrecision()

double OpenLxApp::Geometry::getPrecision ( ) const

◆ getShape()

pConstShape OpenLxApp::Geometry::getShape ( void  ) const

◆ setPrecision()

void OpenLxApp::Geometry::setPrecision ( double  p)
The documentation for this class was generated from the following file:
