A SubElement extends an Element. Together with the (parent) Element it describes an entity with multiple geometries. The spatial structure of SubElements is defined by their parent Elements. More...

#include <SubElement.h>

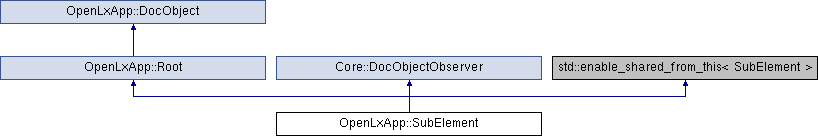

Inheritance diagram for OpenLxApp::SubElement:

Public Member Functions
virtual	~SubElement (void)

Misc
std::shared_ptr< Element >	getElement () const

std::shared_ptr< SubElement >	copy () const

Representation
bool	setGeometry (std::shared_ptr< Geometry > geo)

std::shared_ptr< Geometry >	getGeometry () const

Geom::Trsf	getGeometryToWorldTransform () const

Geom::Bnd_Box	getBoundingBox () const

Placement
Geom::Ax2	getLocalPlacement () const

void	setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf	getTransform () const

Geom::Trsf	getLocalToWorldTransform () const

void	setTransform (const Geom::Trsf &t)

void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool	getLocalAxes (Geom::Ax2 &localAxes)

void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

Topology
pConstShape	getShape () const

pConstShape	getLocalShape () const

Rendering
void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial	getOglMaterial () const

void	setAmbientColor (const Base::Color &aCol)

void	setDiffuseColor (const Base::Color &aCol)

void	setSpecularColor (const Base::Color &aCol)

void	setEmissiveColor (const Base::Color &aCol)

void	setReflectiveColor (const Base::Color &aCol)

void	setShininess (int aVal)

void	setTransparency (int aVal)

void	setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle	getDrawStyle () const

void	setLineWidth (float width)

void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

Attributes
void	setPositionNb (long value)

long	getPositionNb () const

bool	isVisible () const

void	setVisible (bool onoff)

void	setAssociatedMaterial (std::shared_ptr< Material > aMaterial)

std::shared_ptr< Material >	getAssociatedMaterial () const

void	removeAssociatedMaterial ()

Python
bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId	getGlobalClassId () const

Properties
std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const

std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const

bool	isRegisteredProperty (const std::string &aName) const

virtual void	onPropertyChanged (const std::string &aPropertyName)

virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

Base::String	getPropertyHeader () const

Base::String	getPropertyGroupName () const

Public Member Functions inherited from OpenLxApp::Root
void	setUserName (const Base::String &aName)

Base::String	getUserName () const

virtual	~Root (void)

Base::GlobalId	getGlobalId () const

bool	setGlobalId (const Base::GlobalId &aGlobalId)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Public Member Functions inherited from Core::DocObjectObserver
virtual	~DocObjectObserver ()

Protected Member Functions
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

	SubElement ()

Protected Member Functions inherited from OpenLxApp::Root
	Root ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

A SubElement extends an Element. Together with the (parent) Element it describes an entity with multiple geometries. The spatial structure of SubElements is defined by their parent Elements.

Constructor & Destructor Documentation

◆ ~SubElement()

virtual OpenLxApp::SubElement::~SubElement ( void )

virtual

◆ SubElement()

OpenLxApp::SubElement::SubElement ( )

inlineprotected

Member Function Documentation

◆ copy()

std::shared_ptr<SubElement> OpenLxApp::SubElement::copy ( ) const

◆ getAssociatedMaterial()

std::shared_ptr<Material> OpenLxApp::SubElement::getAssociatedMaterial ( ) const

◆ getBoundingBox()

Geom::Bnd_Box OpenLxApp::SubElement::getBoundingBox ( ) const

◆ getDrawStyle()

Draw::DrawStyle OpenLxApp::SubElement::getDrawStyle ( ) const

◆ getElement()

std::shared_ptr<Element> OpenLxApp::SubElement::getElement ( ) const

◆ getGeometry()

std::shared_ptr<Geometry> OpenLxApp::SubElement::getGeometry ( ) const

◆ getGeometryToWorldTransform()

Geom::Trsf OpenLxApp::SubElement::getGeometryToWorldTransform ( ) const

◆ getGlobalClassId()

virtual Base::GlobalId OpenLxApp::SubElement::getGlobalClassId ( ) const

virtual

◆ getLocalAxes()

bool OpenLxApp::SubElement::getLocalAxes ( Geom::Ax2 & localAxes )

◆ getLocalPlacement()

Geom::Ax2 OpenLxApp::SubElement::getLocalPlacement ( ) const

◆ getLocalShape()

pConstShape OpenLxApp::SubElement::getLocalShape ( ) const

◆ getLocalToWorldTransform()

Geom::Trsf OpenLxApp::SubElement::getLocalToWorldTransform ( ) const

◆ getOglMaterial()

Draw::OglMaterial OpenLxApp::SubElement::getOglMaterial ( ) const

◆ getPositionNb()

long OpenLxApp::SubElement::getPositionNb ( ) const

◆ getProperty()

std::shared_ptr<OpenLxApp::Property> OpenLxApp::SubElement::getProperty ( const std::string & aName ) const

◆ getPropertyBool()

std::shared_ptr<PropertyBool> OpenLxApp::SubElement::getPropertyBool ( const std::string & aName ) const

◆ getPropertyButton()

std::shared_ptr<PropertyButton> OpenLxApp::SubElement::getPropertyButton ( const std::string & aName ) const

◆ getPropertyColor()

std::shared_ptr<PropertyColor> OpenLxApp::SubElement::getPropertyColor ( const std::string & aName ) const

◆ getPropertyDouble()

std::shared_ptr<PropertyDouble> OpenLxApp::SubElement::getPropertyDouble ( const std::string & aName ) const

◆ getPropertyEnum()

std::shared_ptr<PropertyEnum> OpenLxApp::SubElement::getPropertyEnum ( const std::string & aName ) const

◆ getPropertyGroupName()

Base::String OpenLxApp::SubElement::getPropertyGroupName ( ) const

◆ getPropertyHeader()

Base::String OpenLxApp::SubElement::getPropertyHeader ( ) const

◆ getPropertyInteger()

std::shared_ptr<PropertyInteger> OpenLxApp::SubElement::getPropertyInteger ( const std::string & aName ) const

◆ getPropertyMap()

std::map<std::string, std::shared_ptr<Property> > OpenLxApp::SubElement::getPropertyMap ( ) const

◆ getPropertyString()

std::shared_ptr<PropertyString> OpenLxApp::SubElement::getPropertyString ( const std::string & aName ) const

◆ getShape()

pConstShape OpenLxApp::SubElement::getShape ( ) const

◆ getTransform()

Geom::Trsf OpenLxApp::SubElement::getTransform ( ) const

◆ isRegisteredProperty()

bool OpenLxApp::SubElement::isRegisteredProperty ( const std::string & aName ) const

◆ isVisible()

bool OpenLxApp::SubElement::isVisible ( ) const

◆ onChange()

void OpenLxApp::SubElement::onChange	(	Core::DocObject *	aCaller,
		const Core::DocObjectObserverMsg &	aReason
	)

overrideprotectedvirtual

Reimplemented from Core::DocObjectObserver.

◆ onPropertyChanged()

virtual void OpenLxApp::SubElement::onPropertyChanged ( const std::string & aPropertyName )

virtual

◆ onScaling()

virtual void OpenLxApp::SubElement::onScaling	(	const Geom::Vec &	aVec,
		const Geom::Pnt &	aScaleBasePnt
	)

virtual

◆ registerPropertyBool()

std::shared_ptr<PropertyBool> OpenLxApp::SubElement::registerPropertyBool	(	const std::string &	aName,
		bool	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyButton()

std::shared_ptr<PropertyButton> OpenLxApp::SubElement::registerPropertyButton	(	const std::string &	aName,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyColor()

std::shared_ptr<PropertyColor> OpenLxApp::SubElement::registerPropertyColor	(	const std::string &	aName,
		Base::Color	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyDouble()

std::shared_ptr<PropertyDouble> OpenLxApp::SubElement::registerPropertyDouble	(	const std::string &	aName,
		double	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyEnum()

std::shared_ptr<PropertyEnum> OpenLxApp::SubElement::registerPropertyEnum	(	const std::string &	aName,
		int	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyInteger()

std::shared_ptr<PropertyInteger> OpenLxApp::SubElement::registerPropertyInteger	(	const std::string &	aName,
		int	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPropertyString()

std::shared_ptr<PropertyString> OpenLxApp::SubElement::registerPropertyString	(	const std::string &	aName,
		Base::String	aDefaultValue,
		Property::Visible	aVisible = `Property::VISIBLE`,
		Property::Editable	aEditable = `Property::EDITABLE`,
		int	aTranslationId = `-1`
	)

◆ registerPythonClass()

bool OpenLxApp::SubElement::registerPythonClass	(	const std::string &	aClassName,
		const std::string &	aParentClassName
	)

◆ removeAssociatedMaterial()

void OpenLxApp::SubElement::removeAssociatedMaterial ( )

◆ rotate()

void OpenLxApp::SubElement::rotate	(	const Geom::Ax1 &	axis,
		double	angle,
		Geom::CoordSpace	aCoordSpace = `Geom::CoordSpace::WCS`
	)

◆ setAmbientColor()

void OpenLxApp::SubElement::setAmbientColor ( const Base::Color & aCol )

◆ setAssociatedMaterial()

void OpenLxApp::SubElement::setAssociatedMaterial ( std::shared_ptr< Material > aMaterial )

◆ setDiffuseColor()

void OpenLxApp::SubElement::setDiffuseColor ( const Base::Color & aCol )

◆ setDrawStyle()

void OpenLxApp::SubElement::setDrawStyle ( const Draw::DrawStyle & ds )

◆ setEmissiveColor()

void OpenLxApp::SubElement::setEmissiveColor ( const Base::Color & aCol )

◆ setGeometry()

bool OpenLxApp::SubElement::setGeometry ( std::shared_ptr< Geometry > geo )

◆ setLengthAndCrossTexture()

void OpenLxApp::SubElement::setLengthAndCrossTexture	(	const Draw::Texture2 &	lengthTexture,
		const Draw::Texture2 &	crossTexture,
		const Draw::Texture2Transform &	lengthTextureTrsf = `Draw::Texture2Transform()`,
		const Draw::Texture2Transform &	crossTextureTrsf = `Draw::Texture2Transform()`
	)

◆ setLineWidth()

void OpenLxApp::SubElement::setLineWidth ( float width )

◆ setLocalAxes()

void OpenLxApp::SubElement::setLocalAxes	(	const Geom::Dir &	zHeight,
		const Geom::Dir &	xLength
	)

◆ setLocalPlacement()

void OpenLxApp::SubElement::setLocalPlacement ( const Geom::Ax2 & pos )

◆ setOglMaterial()

void OpenLxApp::SubElement::setOglMaterial	(	const Draw::OglMaterial &	mat,
		int	faceIndex = `-1`
	)

◆ setPositionNb()

void OpenLxApp::SubElement::setPositionNb ( long value )

◆ setPropertyGroupName()

void OpenLxApp::SubElement::setPropertyGroupName	(	const Base::String &	aDefaultName,
		int	aTranslationId
	)

◆ setPropertyHeader()

void OpenLxApp::SubElement::setPropertyHeader	(	const Base::String &	aDefaultName,
		int	aTranslationId
	)

◆ setReflectiveColor()

void OpenLxApp::SubElement::setReflectiveColor ( const Base::Color & aCol )

◆ setShininess()

void OpenLxApp::SubElement::setShininess ( int aVal )

◆ setSpecularColor()

void OpenLxApp::SubElement::setSpecularColor ( const Base::Color & aCol )

◆ setStandardManipulatorPolicy()

void OpenLxApp::SubElement::setStandardManipulatorPolicy ( const Core::StandardManipulatorPolicy & aPolicy )

◆ setTexture()

void OpenLxApp::SubElement::setTexture	(	const Draw::Texture2 &	tex,
		int	faceIndex = `-1`
	)

◆ setTransform()

void OpenLxApp::SubElement::setTransform ( const Geom::Trsf & t )

◆ setTransparency()

void OpenLxApp::SubElement::setTransparency ( int aVal )

◆ setVisible()

void OpenLxApp::SubElement::setVisible ( bool onoff )

◆ translate()

void OpenLxApp::SubElement::translate	(	const Geom::Vec &	aVec,
		Geom::CoordSpace	aCoordSpace = `Geom::CoordSpace::WCS`
	)

◆ translateAfterScaled()

virtual void OpenLxApp::SubElement::translateAfterScaled	(	const Geom::Vec &	aVec,
		const Geom::Pnt &	aScaleBasePnt
	)

virtual

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/OpenLxApp/include/OpenLxApp/SubElement.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~SubElement()

◆ SubElement()

Member Function Documentation

◆ copy()

◆ getAssociatedMaterial()

◆ getBoundingBox()

◆ getDrawStyle()

◆ getElement()

◆ getGeometry()

◆ getGeometryToWorldTransform()

◆ getGlobalClassId()

◆ getLocalAxes()

◆ getLocalPlacement()

◆ getLocalShape()

◆ getLocalToWorldTransform()

◆ getOglMaterial()

◆ getPositionNb()

◆ getProperty()

◆ getPropertyBool()

◆ getPropertyButton()

◆ getPropertyColor()

◆ getPropertyDouble()

◆ getPropertyEnum()

◆ getPropertyGroupName()

◆ getPropertyHeader()

◆ getPropertyInteger()

◆ getPropertyMap()

◆ getPropertyString()

◆ getShape()

◆ getTransform()

◆ isRegisteredProperty()

◆ isVisible()

◆ onChange()

◆ onPropertyChanged()

◆ onScaling()

◆ registerPropertyBool()

◆ registerPropertyButton()

◆ registerPropertyColor()

◆ registerPropertyDouble()

◆ registerPropertyEnum()

◆ registerPropertyInteger()

◆ registerPropertyString()

◆ registerPythonClass()

◆ removeAssociatedMaterial()

◆ rotate()

◆ setAmbientColor()

◆ setAssociatedMaterial()

◆ setDiffuseColor()

◆ setDrawStyle()

◆ setEmissiveColor()

◆ setGeometry()

◆ setLengthAndCrossTexture()

◆ setLineWidth()

◆ setLocalAxes()

◆ setLocalPlacement()

◆ setOglMaterial()

◆ setPositionNb()

◆ setPropertyGroupName()

◆ setPropertyHeader()

◆ setReflectiveColor()

◆ setShininess()

◆ setSpecularColor()

◆ setStandardManipulatorPolicy()

◆ setTexture()

◆ setTransform()

◆ setTransparency()

◆ setVisible()

◆ translate()

◆ translateAfterScaled()
