A Member is a structural member designed to carry loads between or beyond points of support. It is not required to be load bearing. The orientation of the member (being horizontal, vertical or sloped) is not relevant to its definition (in contrary to Beam and Column). An IMember represents a linear structural element from an architectural or structural modeling point of view and shall be used if it cannot be expressed more specifically as either an Beam or an Column. More...

#include <Member.h>

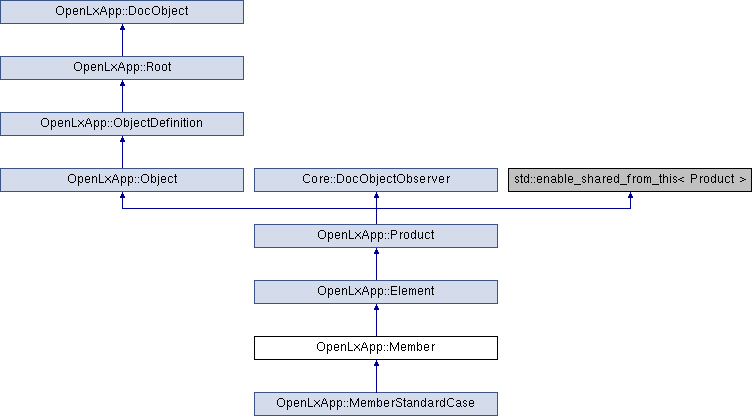

Inheritance diagram for OpenLxApp::Member:

Public Types
enum	MemberTypeEnum { MemberTypeEnum::BRACE, MemberTypeEnum::CHORD, MemberTypeEnum::COLLAR, MemberTypeEnum::MEMBER, MemberTypeEnum::MULLION, MemberTypeEnum::PLATE, MemberTypeEnum::POST, MemberTypeEnum::PURLIN, MemberTypeEnum::RAFTER, MemberTypeEnum::STRINGER, MemberTypeEnum::STRUT, MemberTypeEnum::STUD, MemberTypeEnum::USERDEFINED, MemberTypeEnum::NOTDEFINED }

Public Member Functions
virtual	~Member (void)

void	setPredefinedType (MemberTypeEnum aType)

MemberTypeEnum	getPredefinedType () const

Public Member Functions inherited from OpenLxApp::Element
virtual	~Element (void)

void	setPlacementRelativeTo (std::shared_ptr< Element > other)

void	setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)

std::shared_ptr< Element >	getPlacementRelativeTo () const

bool	setLayer (int layernumber)

int	getLayer () const

void	addOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElements ()

std::vector< std::shared_ptr< OpeningElement > >	getOpeningElements () const

void	addSubElement (std::shared_ptr< SubElement > aSubElement)

std::vector< std::shared_ptr< SubElement > >	getSubElements () const

void	removeSubElement (std::shared_ptr< SubElement > aSubElement)

void	removeSubElements ()

std::shared_ptr< OpeningElement >	getFilledOpeningElement () const

void	setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)

void	removeAssociatedMaterial ()

std::shared_ptr< MaterialSelect >	getAssociatedMaterial () const

bool	isTemporary () const

void	setTemporary (bool on)

std::shared_ptr< Group >	getGroup () const

std::shared_ptr< Element >	copy () const

Topo::Cdwk_SAT_Attributes	get_Cdwk_SAT_Attributes () const

Base::String	getTag () const

void	setTag (const Base::String &aTag)

void	setCdwkAttributeData (const CdwkAttributeData &aData)

Public Member Functions inherited from OpenLxApp::Product
virtual	~Product (void)

virtual bool	setGeometry (std::shared_ptr< Geometry > geo)

std::shared_ptr< Geometry >	getGeometry () const

Geom::Trsf	getGeometryToWorldTransform () const

Geom::Bnd_Box	getBoundingBox () const

Geom::Ax2	getLocalPlacement () const

void	setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf	getTransform () const

Geom::Trsf	getLocalToWorldTransform () const

void	setTransform (const Geom::Trsf &t)

void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool	getLocalAxes (Geom::Ax2 &localAxes)

void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

pConstShape	getShape () const

pConstShape	getLocalShape () const

void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial	getOglMaterial () const

void	setAmbientColor (const Base::Color &aCol)

void	setDiffuseColor (const Base::Color &aCol)

void	setSpecularColor (const Base::Color &aCol)

void	setEmissiveColor (const Base::Color &aCol)

void	setReflectiveColor (const Base::Color &aCol)

void	setShininess (int aVal)

void	setTransparency (int aVal)

void	setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle	getDrawStyle () const

void	setLineWidth (float width)

void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

std::shared_ptr< SpatialStructureElement >	getSpatialStructure () const

void	setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)

void	setPositionNb (long value)

long	getPositionNb () const

bool	isVisible () const

void	setVisible (bool onoff)

bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId	getGlobalClassId () const

std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const

std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const

bool	isRegisteredProperty (const std::string &aName) const

virtual void	onPropertyChanged (const std::string &aPropertyName)

virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyHeader (const Base::String &aDefaultName)

void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyGroupName (const Base::String &aDefaultName)

Base::String	getPropertyHeader () const

Base::String	getPropertyGroupName () const

std::shared_ptr< PropertyUser >	getPropertyUser (const std::string &aName) const

std::vector< std::shared_ptr< PropertyUser > >	getPropertyUser () const

std::vector< Base::String >	getPropertySetNames () const

std::shared_ptr< PropertySet >	getPropertySetByName (const Base::String &aName) const

ExternalPythonTypeObject *	getExternalPythonTypeObject () const

void	setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)

void	removeExternalTypeObject ()

Public Member Functions inherited from OpenLxApp::Object
virtual	~Object (void)

Public Member Functions inherited from OpenLxApp::ObjectDefinition
virtual	~ObjectDefinition (void)

std::vector< std::shared_ptr< ObjectDefinition > >	getDecompositionObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecompositionObjects () const

std::shared_ptr< ObjectDefinition >	getDecomposedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecomposedObjects () const

void	addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)

void	removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	removeAggregationObjects ()

std::vector< std::shared_ptr< ObjectDefinition > >	getAggregationObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregationObjects () const

std::shared_ptr< ObjectDefinition >	getAggregatedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregatedObjects () const

void	addAssociationObject (std::shared_ptr< Root > aObject)

std::vector< std::shared_ptr< Root > >	getAssociationObjects () const

std::shared_ptr< LxIfcBase::LxIfcProperty >	getIfcPropertySets () const

Public Member Functions inherited from OpenLxApp::Root
void	setUserName (const Base::String &aName)

Base::String	getUserName () const

virtual	~Root (void)

Base::GlobalId	getGlobalId () const

bool	setGlobalId (const Base::GlobalId &aGlobalId)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Public Member Functions inherited from Core::DocObjectObserver
virtual	~DocObjectObserver ()

Protected Member Functions
	Member ()

Protected Member Functions inherited from OpenLxApp::Element
	Element ()

void	_copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const

Protected Member Functions inherited from OpenLxApp::Product
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

	Product ()

Protected Member Functions inherited from OpenLxApp::Object
	Object ()

Protected Member Functions inherited from OpenLxApp::ObjectDefinition
	ObjectDefinition ()

Protected Member Functions inherited from OpenLxApp::Root
	Root ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

A Member is a structural member designed to carry loads between or beyond points of support. It is not required to be load bearing. The orientation of the member (being horizontal, vertical or sloped) is not relevant to its definition (in contrary to Beam and Column). An IMember represents a linear structural element from an architectural or structural modeling point of view and shall be used if it cannot be expressed more specifically as either an Beam or an Column.

See also: Documentation from IFC4: IfcMember

Member Enumeration Documentation

◆ MemberTypeEnum

enum OpenLxApp::Member::MemberTypeEnum

strong

Enumerator
BRACE
CHORD
COLLAR
MEMBER
MULLION
PLATE
POST
PURLIN
RAFTER
STRINGER
STRUT
STUD
USERDEFINED
NOTDEFINED

Constructor & Destructor Documentation

◆ ~Member()

virtual OpenLxApp::Member::~Member ( void )

virtual

◆ Member()

OpenLxApp::Member::Member ( )

inlineprotected

Member Function Documentation

◆ getPredefinedType()

MemberTypeEnum OpenLxApp::Member::getPredefinedType ( ) const

◆ setPredefinedType()

void OpenLxApp::Member::setPredefinedType ( MemberTypeEnum aType )

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/OpenLxApp/include/OpenLxApp/Member.h
