#include <PropertyContainer.h>

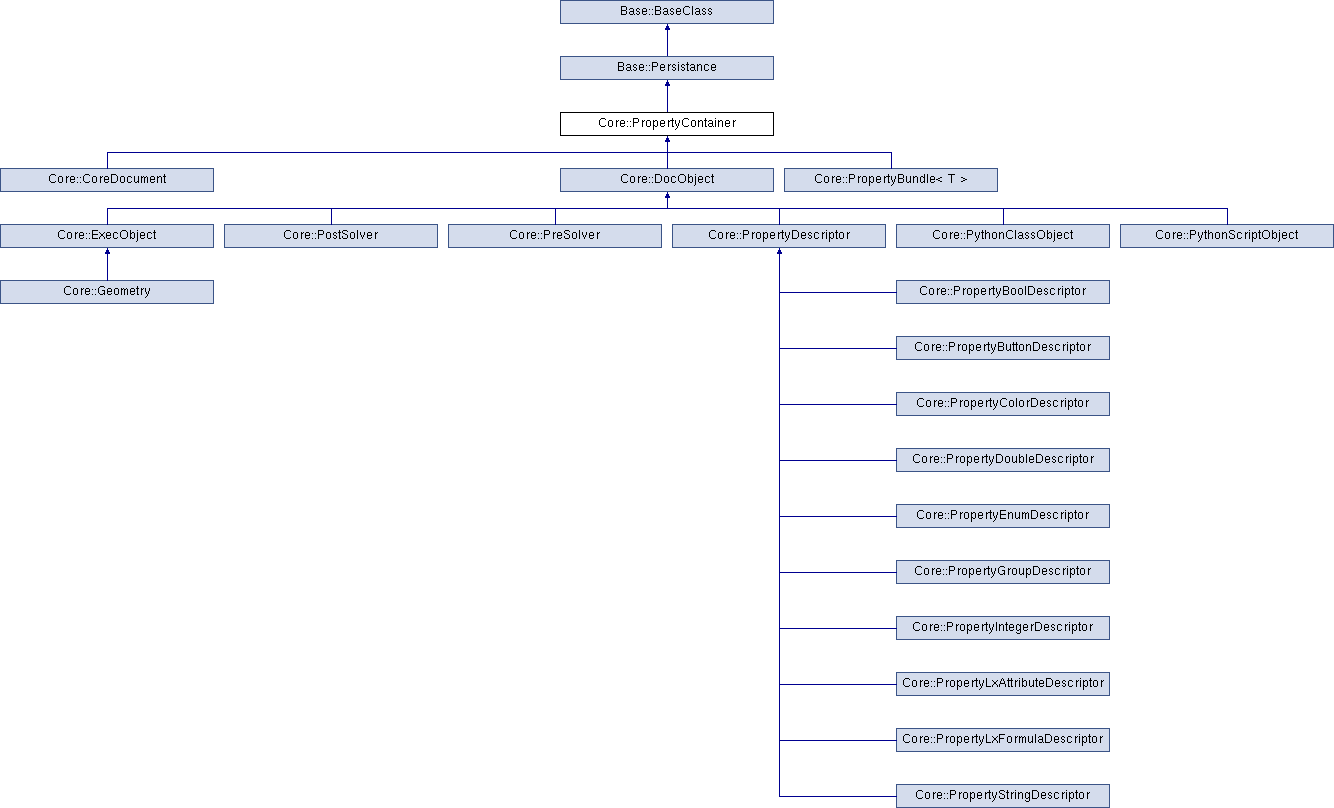

Inheritance diagram for Core::PropertyContainer:

Public Types
enum	CheckStatus { CheckStatus::IsNew, CheckStatus::IsUpdated }

Public Member Functions
	PropertyContainer (void)

	PropertyContainer (const PropertyContainer &rhs)

virtual	~PropertyContainer (void)=default

bool	addProperty (Core::Property *p, const std::string &name)

Core::Property *	addProperty (Base::Type t, const std::string &name, const Core::Variant &defaultValue)
	Adds a property to the PropertyContainer. Returns the added property on success, '0' on failure. More...

Core::PropertyUser *	addPropertyUser (const std::string &name, const Core::Variant &value)
	Convenience method for Python bindings. More...

void	removeProperty (Core::Property *p, std::string pName)
	Removes a property from the PropertyContainer and deletes it. More...

void	removeAllProperties ()
	Removes all properties from the PropertyContainer and deletes them. More...

Core::Property *	getPropertyByName (const std::string &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...

Core::Property *	getPropertyByName (const Base::String &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...

template<typename T >
T *	getPropertyByName (const std::string &name) const
	Returns the property of type T with name 'name'. Returns 'nullptr' on failure. More...

void	getPropertyMap (Core::PropertyMap &) const
	Fills a PropertyMap. More...

std::vector< std::pair< Core::Property *, std::string > >	getPropertiesAndNameByType (Base::Type type) const
	Returns all properties of type 'type'. More...

std::vector< Core::Property * >	getPropertiesByType (Base::Type type) const

std::vector< Core::Property * >	getPropertiesByTypes (const std::vector< Base::Type > &type) const

bool	setPropertyFromVariant (const std::string &name, const Core::Variant &value)
	Sets a property to value. More...

bool	setProperty (const std::string &name, double value)

bool	setProperty (const std::string &name, int value)

bool	setProperty (const std::string &name, const Geom::Vec &value)

bool	setProperty (const std::string &name, const std::list< Geom::Vec > &value)

bool	setProperty (const std::string &name, const Geom::Trsf &value)

bool	setProperty (const std::string &name, const std::string &value)

bool	setProperty (const std::string &name, const char *value)

bool	setProperty (const std::string &name, const Base::String &value)

bool	setProperty (const std::string &name, const Geom::Pnt &value)

bool	setProperty (const std::string &name, const Geom::Pnt2d &value)

bool	setProperty (const std::string &name, const std::vector< Geom::Pnt > &value)

bool	setProperty (const std::string &name, const std::vector< Geom::Pnt2d > &value)

bool	setProperty (const std::string &name, const MD5 &value)

bool	setProperty (const std::string &name, bool value)

bool	setProperty (const std::string &name, Core::DocObject *value)

bool	setProperty (const std::string &name, const Core::DocObject *value)

bool	setProperty (const std::string &name, const boost::unordered_set< Core::DocObject * > &value)

bool	setProperty (const std::string &name, const std::list< Core::DocObject * > &value)

bool	setProperty (const std::string &name, const std::vector< int > &value)

bool	setProperty (const std::string &name, const QFont &value)

bool	setProperty (const std::string &name, const Draw::DrawStyle &value)

bool	setProperty (const std::string &name, const Draw::Arrowheads &value)

bool	setProperty (const std::string &name, const Geom::Dir &value)

bool	setProperty (const std::string &name, const Geom::Dir2d &value)

bool	setProperty (const std::string &name, const Base::Color &value)

bool	setProperty (const std::string &name, const Geom::Ax1 &value)

bool	setProperty (const std::string &name, const Geom::Ax2 &value)

bool	setProperty (const std::string &name, const Draw::Texture2Transform &value)

bool	setProperty (const std::string &name, const std::list< std::list< Geom::Pnt > > &value)

bool	setProperty (const std::string &name, const std::list< double > &value)

bool	setProperty (const std::string &name, pBrepData &value)

virtual bool	onBeforeChange (Core::Property *p, const Core::Variant &newValue=Core::Variant())

virtual void	onChanged (Core::Property *p)
	Is called after a property in a PropertyContainer has been changed. More...

virtual void	onDeleted ()
	Is called when a PropertyContainer's status is set to MarkedForDelete. More...

virtual void	onNew ()
	Is called when a PropertyContainer's status is set to New. More...

virtual void	save (Base::AbstractWriter &writer, Base::PersistanceVersion &version)
	Saves the PropertyContainer to writer. More...

virtual void	restore (Base::AbstractXMLReader &reader, Base::PersistanceVersion &version)
	Restores the PropertyContainer from reader in specified version. More...

bool	enableNotify (const bool enable)

bool	isNotifyEnabled (void) const
	Returns whether notification of changes to the field values in the container is propagated to its auditors. More...

void	touch ()
	Sets all properties of this PropertyContainer to updated. More...

bool	isDeleted () const

bool	isStatusDeleted () const
	Returns true if the status is set to 'Deleted'. More...

bool	isMarkedForDelete () const
	Returns true if the status is set to 'MarkedForDelete'. More...

bool	isMarkedForDeleteFinal () const
	Returns true if the status is set to 'MarkedForDeleteFinal'. More...

bool	isDeletedFinal () const
	Returns true if the status is set to 'DeletedFinal'. More...

bool	isNew () const
	Returns true if the status is set to 'New'. More...

bool	isUpdated () const
	Returns true if the status is set to 'Updated'. More...

bool	isValid () const
	Returns true if the status is set to 'Valid'. More...

bool	hasErrors () const
	Returns true if the status is set to 'Error'. More...

void	setData (const std::string &key, void *data)
	Adds arbitrary data for this key to the PropertyContainer (Used in SDK) More...

void *	getData (const std::string &key, bool *ok=nullptr) const
	Returns data for this key from the PropertyContainer (Used in SDK) More...

void	removeData (const std::string &key)
	Removes the data from the PropertyContainer (Used in SDK) More...

bool	hasSameValuesAs (const PropertyContainer *container) const
	Returns 'true' if all values in 'container' match the corresponding property in this PropertyContainer. More...

void	setPropertyValues (const PropertyContainer *other)
	Copies the property values from 'other' PropertyContainer to this PropertyContainer. More...

template<typename T >
T	getPropertyValueByName (const std::string &propertyName, bool *ok=0) const
	Returns the property value T with this name. If ok=true T holds a valid value. More...

virtual void	ensureIntegrity ()

void	integrityMaintained ()

void	integrityLost ()
	Sets _integrity to false. More...

bool	checkIntegrity ()
	Returns the value of _integrity. More...

Core::PropertyValueMap	getPropertyValueMap () const
	Returns a map with the name of the property and its PropertyValue as a struct of the property type and the Core::Variant value. More...

std::map< std::string, Core::Variant >	getKeyValueMap () const
	Returns all keys and sub keys with their values of this container. More...

bool	setPropertyFromKeyValue (const std::string &propertyName, const std::string &key, const Core::Variant &value)
	Sets the key in a property to value. More...

std::set< Core::Property * >	getUpdatedProperties () const
	Returns all properties that were updated since the last recompute. More...

void	setUpdated ()
	Sets the status to 'Updated' if the old status was 'Valid'. More...

void	setUpdated (const Core::Property *p)

void	setHasErrors ()
	Sets the status to 'Error'. More...

void	setNew ()
	Sets the status to 'New'. More...

void	setValid ()
	Sets the status to 'Valid'. More...

void	setDeleted ()
	Sets the status to 'Delete'. More...

void	setMarkedForDelete ()
	Sets the status to 'MarkedForDelete'. More...

void	setMarkedForDeleteFinal ()
	Sets the status to 'MarkedForDeleteFinal'. More...

void	setDeleteFinal ()
	Sets the status to 'DeleteFinal'. More...

unsigned int	getPropertyChangeStatus () const

CheckStatus	getCheckStatus () const
	Gets checkStatus. More...

void	setCheckStatus (CheckStatus status)
	Sets checkStatus. More...

void	setAllPropertiesValid ()
	Sets the status of all properties to 'Valid'. More...

void	setPropertyValues (const Core::PropertyValueMap &other)
	Copies the property values from a Core::PropertyValueMap to this PropertyContainer. More...

std::vector< Core::Property * >	getPropertiesOrdered () const
	Returns the properties in the init order. More...

void	__setCheckIsNew__ ()
	For internal use only. More...

virtual bool	check_lx (char f, char n)

bool	rollBack ()
	Brings back the PropertyContainer to its last valid status. More...

void	saveLastValidPropertyMap ()
	Saves the last valid property map, p.e. before a recompute to enable a rollback. More...

const Core::PropertyValueMap &	getLastValidPropertyMap () const
	Returns the last valid PropertyValueMap. More...

Public Member Functions inherited from Base::Persistance
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistanceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Public Attributes
bool	isRestored = false

Protected Types
enum	Status { Status::New = 1, Status::Updated = 2, Status::Valid = 3, Status::MarkedForDelete = 4, Status::MarkedForDeleteFinal, Status::Deleted, Status::DeletedFinal, Status::Error }

Protected Member Functions
void	addPropertiesFrom (const Core::PropertyContainer *other)
	Adds copy of all properties from other to this PropertyContainer. More...

virtual void	setStatus (Status status)

Status	getStatus () const

bool	checkForAlreadyExistingProperty (Core::Property *property)

virtual void	restoreProperty (Core::Property *property, const Base::String &name, Base::AbstractXMLReader &reader, Base::PersistanceVersion &version)
	Restores property from from reader in specified version. More...

Protected Attributes
unsigned int	_changedProperties

Friends
class	PostInitClass

class	CoreDocument

class	ObjectExecutor

Additional Inherited Members
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (std::string n, int id)

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (std::string s, Base::Type classTypeId, int id)

Member Enumeration Documentation

◆ CheckStatus

enum Core::PropertyContainer::CheckStatus

strong

Enumerator
IsNew
IsUpdated

◆ Status

enum Core::PropertyContainer::Status

strongprotected

Enumerator
New
Updated
Valid
MarkedForDelete
MarkedForDeleteFinal
Deleted
DeletedFinal
Error

Constructor & Destructor Documentation

◆ PropertyContainer() [1/2]

Core::PropertyContainer::PropertyContainer ( void )

◆ PropertyContainer() [2/2]

Core::PropertyContainer::PropertyContainer ( const PropertyContainer & rhs )

◆ ~PropertyContainer()

virtual Core::PropertyContainer::~PropertyContainer ( void )

virtualdefault

Member Function Documentation

◆ setCheckIsNew()

void Core::PropertyContainer::__setCheckIsNew__ ( )

For internal use only.

◆ addPropertiesFrom()

void Core::PropertyContainer::addPropertiesFrom ( const Core::PropertyContainer * other )

protected

Adds copy of all properties from other to this PropertyContainer.

◆ addProperty() [1/2]

bool Core::PropertyContainer::addProperty	(	Core::Property *	p,
		const std::string &	name
	)

Adds a property to the PropertyContainer. The PropertyContainer takes ownership of the property. Returns 'true' on success, 'false' on failure.

◆ addProperty() [2/2]

Core::Property* Core::PropertyContainer::addProperty	(	Base::Type	t,
		const std::string &	name,
		const Core::Variant &	defaultValue
	)

Adds a property to the PropertyContainer. Returns the added property on success, '0' on failure.

◆ addPropertyUser()

Core::PropertyUser* Core::PropertyContainer::addPropertyUser	(	const std::string &	name,
		const Core::Variant &	value
	)

Convenience method for Python bindings.

◆ check_lx()

virtual bool Core::PropertyContainer::check_lx	(	char *	f,
		char *	n
	)

virtual

◆ checkForAlreadyExistingProperty()

bool Core::PropertyContainer::checkForAlreadyExistingProperty ( Core::Property * property )

protected

◆ checkIntegrity()

bool Core::PropertyContainer::checkIntegrity ( )

Returns the value of _integrity.

◆ enableNotify()

bool Core::PropertyContainer::enableNotify ( const bool enable )

Sets whether notification will be propagated on changing the values of the contained properties. The old value of the flag is returned.

◆ ensureIntegrity()

virtual void Core::PropertyContainer::ensureIntegrity ( )

virtual

Is called in enableNotify(true), at the end of this method the state of the container (object) has to be completely consistent (i.e. all properties that need to match other properties, match them) and _integrity should be set to true

◆ getCheckStatus()

CheckStatus Core::PropertyContainer::getCheckStatus ( ) const

Gets checkStatus.

◆ getData()

void* Core::PropertyContainer::getData	(	const std::string &	key,
		bool *	ok = `nullptr`
	)		const

Returns data for this key from the PropertyContainer (Used in SDK)

◆ getKeyValueMap()

std::map<std::string, Core::Variant> Core::PropertyContainer::getKeyValueMap ( ) const

Returns all keys and sub keys with their values of this container.

◆ getLastValidPropertyMap()

const Core::PropertyValueMap& Core::PropertyContainer::getLastValidPropertyMap ( ) const

Returns the last valid PropertyValueMap.

◆ getPropertiesAndNameByType()

std::vector<std::pair<Core::Property*, std::string> > Core::PropertyContainer::getPropertiesAndNameByType ( Base::Type type ) const

Returns all properties of type 'type'.

◆ getPropertiesByType()

std::vector<Core::Property*> Core::PropertyContainer::getPropertiesByType ( Base::Type type ) const

◆ getPropertiesByTypes()

std::vector<Core::Property*> Core::PropertyContainer::getPropertiesByTypes ( const std::vector< Base::Type > & type ) const

◆ getPropertiesOrdered()

std::vector<Core::Property*> Core::PropertyContainer::getPropertiesOrdered ( ) const

Returns the properties in the init order.

◆ getPropertyByName() [1/3]

Core::Property* Core::PropertyContainer::getPropertyByName ( const std::string & name ) const

inline

Returns the property with name 'name'. Returns '0' on failure.

◆ getPropertyByName() [2/3]

Core::Property* Core::PropertyContainer::getPropertyByName ( const Base::String & name ) const

inline

Returns the property with name 'name'. Returns '0' on failure.

◆ getPropertyByName() [3/3]

template<typename T >

T* Core::PropertyContainer::getPropertyByName ( const std::string & name ) const

inline

Returns the property of type T with name 'name'. Returns 'nullptr' on failure.

◆ getPropertyChangeStatus()

unsigned int Core::PropertyContainer::getPropertyChangeStatus ( ) const

◆ getPropertyMap()

void Core::PropertyContainer::getPropertyMap ( Core::PropertyMap & ) const

Fills a PropertyMap.

◆ getPropertyValueByName()

template<typename T >

T Core::PropertyContainer::getPropertyValueByName	(	const std::string &	propertyName,
		bool *	ok = `0`
	)		const

inline

Returns the property value T with this name. If ok=true T holds a valid value.

◆ getPropertyValueMap()

Core::PropertyValueMap Core::PropertyContainer::getPropertyValueMap ( ) const

Returns a map with the name of the property and its PropertyValue as a struct of the property type and the Core::Variant value.

◆ getStatus()

Status Core::PropertyContainer::getStatus ( ) const

protected

◆ getUpdatedProperties()

std::set<Core::Property*> Core::PropertyContainer::getUpdatedProperties ( ) const

Returns all properties that were updated since the last recompute.

◆ hasErrors()

bool Core::PropertyContainer::hasErrors ( ) const

Returns true if the status is set to 'Error'.

◆ hasSameValuesAs()

bool Core::PropertyContainer::hasSameValuesAs ( const PropertyContainer * container ) const

Returns 'true' if all values in 'container' match the corresponding property in this PropertyContainer.

◆ integrityLost()

void Core::PropertyContainer::integrityLost ( )

Sets _integrity to false.

◆ integrityMaintained()

void Core::PropertyContainer::integrityMaintained ( )

Sets _integrity to true If you know for certain the state of the container (object) is completely consistent (i.e. all properties that need to match other properties, match them), make sure to always call this method after enableNotify(false) and do it before enableNotify(true) is called

◆ isDeleted()

bool Core::PropertyContainer::isDeleted ( ) const

Returns true if the status of the PropertyContainer is set to MarkedForDelete, Deleted or DeletedFinal

◆ isDeletedFinal()

bool Core::PropertyContainer::isDeletedFinal ( ) const

Returns true if the status is set to 'DeletedFinal'.

◆ isMarkedForDelete()

bool Core::PropertyContainer::isMarkedForDelete ( ) const

Returns true if the status is set to 'MarkedForDelete'.

◆ isMarkedForDeleteFinal()

bool Core::PropertyContainer::isMarkedForDeleteFinal ( ) const

Returns true if the status is set to 'MarkedForDeleteFinal'.

◆ isNew()

bool Core::PropertyContainer::isNew ( ) const

Returns true if the status is set to 'New'.

◆ isNotifyEnabled()

bool Core::PropertyContainer::isNotifyEnabled ( void ) const

Returns whether notification of changes to the field values in the container is propagated to its auditors.

◆ isStatusDeleted()

bool Core::PropertyContainer::isStatusDeleted ( ) const

Returns true if the status is set to 'Deleted'.

◆ isUpdated()

bool Core::PropertyContainer::isUpdated ( ) const

Returns true if the status is set to 'Updated'.

◆ isValid()

bool Core::PropertyContainer::isValid ( ) const

Returns true if the status is set to 'Valid'.

◆ onBeforeChange()

virtual bool Core::PropertyContainer::onBeforeChange	(	Core::Property *	p,
		const Core::Variant &	newValue = `Core::Variant()`
	)

virtual

Is called before a property in a PropertyContainer has been changed. Checks if the change is possible - returns true if it is, otherwise returns false, Can be used to update other variables in the container according to the change being made. Beware, newValue is an optional argument - whenever you use it, make sure that this condition holds true: newValue.getType() != Core::Variant::Type::Undefined, otherwise you are checking invalid data

◆ onChanged()

virtual void Core::PropertyContainer::onChanged ( Core::Property * p )

virtual

Is called after a property in a PropertyContainer has been changed.

Reimplemented in Core::DocObject.

◆ onDeleted()

virtual void Core::PropertyContainer::onDeleted ( )

virtual

Is called when a PropertyContainer's status is set to MarkedForDelete.

◆ onNew()

virtual void Core::PropertyContainer::onNew ( )

virtual

Is called when a PropertyContainer's status is set to New.

◆ removeAllProperties()

void Core::PropertyContainer::removeAllProperties ( )

Removes all properties from the PropertyContainer and deletes them.

◆ removeData()

void Core::PropertyContainer::removeData ( const std::string & key )

Removes the data from the PropertyContainer (Used in SDK)

◆ removeProperty()

void Core::PropertyContainer::removeProperty	(	Core::Property *	p,
		std::string	pName
	)

Removes a property from the PropertyContainer and deletes it.

◆ restore()

virtual void Core::PropertyContainer::restore	(	Base::AbstractXMLReader &	reader,
		Base::PersistanceVersion &	version
	)

virtual

Restores the PropertyContainer from reader in specified version.

Implements Base::Persistance.

Reimplemented in Core::PythonClassObject, and Core::PythonScriptObject.

◆ restoreProperty()

virtual void Core::PropertyContainer::restoreProperty	(	Core::Property *	property,
		const Base::String &	name,
		Base::AbstractXMLReader &	reader,
		Base::PersistanceVersion &	version
	)

protectedvirtual

Restores property from from reader in specified version.

◆ rollBack()

bool Core::PropertyContainer::rollBack ( )

Brings back the PropertyContainer to its last valid status.

◆ save()

virtual void Core::PropertyContainer::save	(	Base::AbstractWriter &	writer,
		Base::PersistanceVersion &	version
	)

virtual

Saves the PropertyContainer to writer.

Implements Base::Persistance.

Reimplemented in Core::PythonClassObject, and Core::PythonScriptObject.

◆ saveLastValidPropertyMap()

void Core::PropertyContainer::saveLastValidPropertyMap ( )

Saves the last valid property map, p.e. before a recompute to enable a rollback.

◆ setAllPropertiesValid()

void Core::PropertyContainer::setAllPropertiesValid ( )

Sets the status of all properties to 'Valid'.

◆ setCheckStatus()

void Core::PropertyContainer::setCheckStatus ( CheckStatus status )

Sets checkStatus.

◆ setData()

void Core::PropertyContainer::setData	(	const std::string &	key,
		void *	data
	)

Adds arbitrary data for this key to the PropertyContainer (Used in SDK)

◆ setDeleted()

void Core::PropertyContainer::setDeleted ( )

Sets the status to 'Delete'.

◆ setDeleteFinal()

void Core::PropertyContainer::setDeleteFinal ( )

Sets the status to 'DeleteFinal'.

◆ setHasErrors()

void Core::PropertyContainer::setHasErrors ( )

Sets the status to 'Error'.

◆ setMarkedForDelete()

void Core::PropertyContainer::setMarkedForDelete ( )

Sets the status to 'MarkedForDelete'.

◆ setMarkedForDeleteFinal()

void Core::PropertyContainer::setMarkedForDeleteFinal ( )

Sets the status to 'MarkedForDeleteFinal'.

◆ setNew()

void Core::PropertyContainer::setNew ( )

Sets the status to 'New'.

◆ setProperty() [1/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		double	value
	)

◆ setProperty() [2/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		int	value
	)

◆ setProperty() [3/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Vec &	value
	)

◆ setProperty() [4/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::list< Geom::Vec > &	value
	)

◆ setProperty() [5/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Trsf &	value
	)

◆ setProperty() [6/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::string &	value
	)

◆ setProperty() [7/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const char *	value
	)

◆ setProperty() [8/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Base::String &	value
	)

◆ setProperty() [9/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Pnt &	value
	)

◆ setProperty() [10/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Pnt2d &	value
	)

◆ setProperty() [11/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::vector< Geom::Pnt > &	value
	)

◆ setProperty() [12/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::vector< Geom::Pnt2d > &	value
	)

◆ setProperty() [13/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const MD5 &	value
	)

◆ setProperty() [14/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		bool	value
	)

◆ setProperty() [15/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		Core::DocObject *	value
	)

◆ setProperty() [16/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Core::DocObject *	value
	)

◆ setProperty() [17/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const boost::unordered_set< Core::DocObject * > &	value
	)

◆ setProperty() [18/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::list< Core::DocObject * > &	value
	)

◆ setProperty() [19/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::vector< int > &	value
	)

◆ setProperty() [20/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const QFont &	value
	)

◆ setProperty() [21/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Draw::DrawStyle &	value
	)

◆ setProperty() [22/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Draw::Arrowheads &	value
	)

◆ setProperty() [23/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Dir &	value
	)

◆ setProperty() [24/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Dir2d &	value
	)

◆ setProperty() [25/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Base::Color &	value
	)

◆ setProperty() [26/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Ax1 &	value
	)

◆ setProperty() [27/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Geom::Ax2 &	value
	)

◆ setProperty() [28/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const Draw::Texture2Transform &	value
	)

◆ setProperty() [29/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::list< std::list< Geom::Pnt > > &	value
	)

◆ setProperty() [30/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		const std::list< double > &	value
	)

◆ setProperty() [31/31]

bool Core::PropertyContainer::setProperty	(	const std::string &	name,
		pBrepData &	value
	)

◆ setPropertyFromKeyValue()

bool Core::PropertyContainer::setPropertyFromKeyValue	(	const std::string &	propertyName,
		const std::string &	key,
		const Core::Variant &	value
	)

Sets the key in a property to value.

◆ setPropertyFromVariant()

bool Core::PropertyContainer::setPropertyFromVariant	(	const std::string &	name,
		const Core::Variant &	value
	)

Sets a property to value.

◆ setPropertyValues() [1/2]

void Core::PropertyContainer::setPropertyValues ( const PropertyContainer * other )

Copies the property values from 'other' PropertyContainer to this PropertyContainer.

◆ setPropertyValues() [2/2]

void Core::PropertyContainer::setPropertyValues ( const Core::PropertyValueMap & other )

Copies the property values from a Core::PropertyValueMap to this PropertyContainer.

◆ setStatus()

virtual void Core::PropertyContainer::setStatus ( Status status )

protectedvirtual

◆ setUpdated() [1/2]

void Core::PropertyContainer::setUpdated ( )

Sets the status to 'Updated' if the old status was 'Valid'.

◆ setUpdated() [2/2]

void Core::PropertyContainer::setUpdated ( const Core::Property * p )

◆ setValid()

void Core::PropertyContainer::setValid ( )

Sets the status to 'Valid'.

◆ touch()

void Core::PropertyContainer::touch ( )

Sets all properties of this PropertyContainer to updated.

Friends And Related Function Documentation

◆ CoreDocument

friend class CoreDocument

friend

◆ ObjectExecutor

friend class ObjectExecutor

friend

◆ PostInitClass

friend class PostInitClass

friend

Member Data Documentation

◆ _changedProperties

unsigned int Core::PropertyContainer::_changedProperties

protected

◆ isRestored

bool Core::PropertyContainer::isRestored = false

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/Core/include/Core/PropertyContainer.h

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Member Enumeration Documentation

◆ CheckStatus

◆ Status

Constructor & Destructor Documentation

◆ PropertyContainer() [1/2]

◆ PropertyContainer() [2/2]

◆ ~PropertyContainer()

Member Function Documentation

◆ __setCheckIsNew__()

◆ addPropertiesFrom()

◆ addProperty() [1/2]

◆ addProperty() [2/2]

◆ addPropertyUser()

◆ check_lx()

◆ checkForAlreadyExistingProperty()

◆ checkIntegrity()

◆ enableNotify()

◆ ensureIntegrity()

◆ getCheckStatus()

◆ getData()

◆ getKeyValueMap()

◆ getLastValidPropertyMap()

◆ getPropertiesAndNameByType()

◆ getPropertiesByType()

◆ getPropertiesByTypes()

◆ getPropertiesOrdered()

◆ getPropertyByName() [1/3]

◆ getPropertyByName() [2/3]

◆ getPropertyByName() [3/3]

◆ getPropertyChangeStatus()

◆ getPropertyMap()

◆ getPropertyValueByName()

◆ getPropertyValueMap()

◆ getStatus()

◆ getUpdatedProperties()

◆ hasErrors()

◆ hasSameValuesAs()

◆ integrityLost()

◆ integrityMaintained()

◆ isDeleted()

◆ isDeletedFinal()

◆ isMarkedForDelete()

◆ isMarkedForDeleteFinal()

◆ isNew()

◆ isNotifyEnabled()

◆ isStatusDeleted()

◆ isUpdated()

◆ isValid()

◆ onBeforeChange()

◆ onChanged()

◆ onDeleted()

◆ onNew()

◆ removeAllProperties()

◆ removeData()

◆ removeProperty()

◆ restore()

◆ restoreProperty()

◆ rollBack()

◆ save()

◆ saveLastValidPropertyMap()

◆ setAllPropertiesValid()

◆ setCheckStatus()

◆ setData()

◆ setDeleted()

◆ setDeleteFinal()

◆ setHasErrors()

◆ setMarkedForDelete()

◆ setMarkedForDeleteFinal()

◆ setNew()

◆ setProperty() [1/31]

◆ setProperty() [2/31]

◆ setProperty() [3/31]

◆ setCheckIsNew()
