Core::Property Class Reference

#include <Property.h>

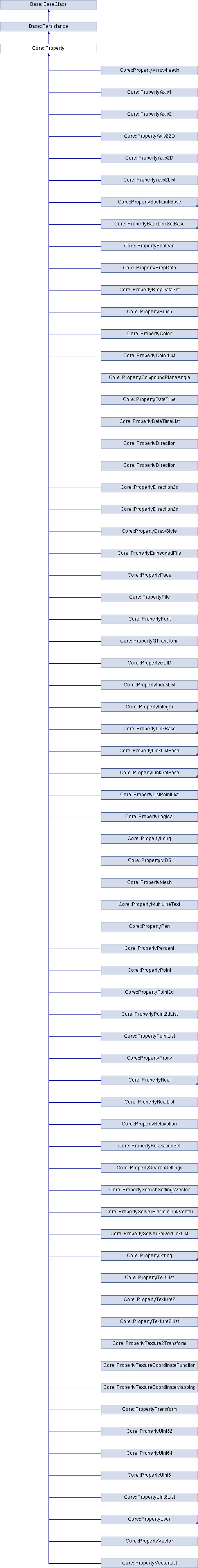

Inheritance diagram for Core::Property:

Public Types
enum	Status { New = 1 << 1, Valid = 1 << 2, Updated = 1 << 3 }

Public Member Functions
	Property (void)
virtual	~Property (void)
void	setName (const std::string &name)
std::string	getName () const
Core::PropertyContainer *	getContainer () const
void	setContainer (Core::PropertyContainer *container)
void	addToContainer (const std::string &name)
virtual Core::Variant	getVariant (void) const =0
virtual bool	setValueFromVariant (const Core::Variant &value)=0
virtual bool	setKeyValue (const std::string &key, const Core::Variant &value)
	Sets a sub key in this property. More...
virtual std::map< std::string, Core::Variant >	getKeyValueMap () const
	Returns all keys and their values of this property. More...
Core::Variant	getVariantFromKey (const std::string &key) const
	Gets the variant for a key. More...
std::vector< std::string >	getKeys () const
	Returns all keys of this property. More...
virtual void	copyValue (Core::Property *p)=0
virtual void	deepCopy (Core::Property *p, Core::CoreDocument *dest_doc, DocObjectMap &copyMap)
bool	enableNotify (bool on)
bool	isNotifyEnabled (void) const
void	touch ()
bool	setWillChangeStatusOnChange (bool on)
long	getTransactionNumber () const
bool	isUpdated () const
	Checks if the property was updated. More...
bool	isTheOnlyUpdatedPropertyInContainer () const
	Checks if this is the only updated property in the container. More...
virtual const Core::PropertyKind	getPropertyKind (void) const
virtual void	setPropertyKind (Core::PropertyKind p)
bool	hasValue () const
	Returns 'true' if the property has a value. This is mainly for optional properties. More...
virtual bool	isOptional () const
	Checks if this is an optional property. More...
void	setHasValue (bool yesno)
	is called when a property holds a value. For optional properties. More...
virtual bool	isEqual (const Property *) const =0
	compare properties More...
virtual bool	isLink () const
	Check if Property is of type PropertyLink, LinkSet etc. For better performance. More...
virtual std::shared_ptr< Core::DbgInfo >	getDbgInfo () const
	Returns the debug information for this property. More...
void	setStatus (const Property::Status &in)
Property::Status	getStatus () const
bool	isDefaultValue () const
void	setDefaultValue (bool on)
void	accept (Core::CoreVisitor *visitor)
virtual bool	createSQL (Base::AbstractWriter &writer, Base::PersistanceVersion &save_version, bool data) override
	This method is used to save properties or very small amounts of data to an XML document. More...
Public Member Functions inherited from Base::Persistance
virtual void	save (Base::AbstractWriter &, Base::PersistanceVersion &)=0
	This method is used to save properties or very small amounts of data to an XML document. More...
virtual void	restore (Base::AbstractXMLReader &, Base::PersistanceVersion &)=0
	This method is used to restore properties from an XML document. More...
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...
virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...
virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...
Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const
template<typename T >
bool	isDerivedFrom () const
	BaseClass ()
	Construction. More...
virtual	~BaseClass ()
	Destruction. More...

Static Public Member Functions
static void	registerProperties (Base::Type t, const Core::PropertyValueMap &pvm)
	Registers the properties with default values for type 't'. More...
static bool	getRegisteredProperties (Base::Type t, Core::PropertyValueMap &pvm)
	Returns the properties with default values of type t;. More...
static const char *	getXMLPropertyAttributeName ()
static const char *	getXMLPropertyAttributeValue ()
static void	setXMLPropertyAttributeName (const char *)
static void	setXMLPropertyAttributeValue (const char *)
Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)
static void	init (void)
static void *	create (void)
static void	setIfcNameAndID (std::string n, int id)

Protected Member Functions
void	hasSetValue (void)
	Should be called by all setValue() methods after the value was changed. More...
bool	aboutToSetValue (const Core::Variant &newValue=Core::Variant())

Additional Inherited Members
Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)
static void	initIfcTypes (std::string s, Base::Type classTypeId, int id)

Member Enumeration Documentation

Status

enum Core::Property::Status

Enumerator
New
Valid
Updated

Constructor & Destructor Documentation

Property()

Core::Property::Property

(

void

)

~Property()

virtual Core::Property::~Property ( void  )

virtual

Member Function Documentation

aboutToSetValue()

bool Core::Property::aboutToSetValue ( const Core::Variant &  newValue = Core::Variant() )

protected

Should be called by all setValue() methods before the value is changed, returns true if the change is validated by container (false otherwise), so far only properties (and only their setValue() methods, copyValue() doesn't use it) in the following files use the container validation functionality: PropertyReal, PropertyInteger, PropertyLogical, PropertyDrawStyle

accept()

void Core::Property::accept

(

Core::CoreVisitor *

visitor

)

addToContainer()

void Core::Property::addToContainer

(

const std::string &

name

)

copyValue()

virtual void Core::Property::copyValue ( Core::Property *  p )

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyEnum, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyPoint2d, Core::PropertyUInt8, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyUInt32, Core::PropertyAxis2List, Core::PropertyListPointList, Core::PropertyTextureCoordinateMapping, Core::PropertyBackLinkSetBase, Core::PropertyMultiLineText, Core::PropertyUInt64, Core::PropertyAxis22D, Core::PropertyRealList, Core::PropertyDirection2d, Core::PropertyArrowheads, Core::PropertyTexture2Transform, Core::PropertyAxis2D, Core::PropertyColorList, Core::PropertyPointList, Core::PropertyGTransform, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertySearchSettingsVector, Core::PropertyRelaxationSet, Core::PropertyMD5, Core::PropertyDateTimeList, Core::PropertyVectorList, Core::PropertyLong, Core::PropertyGUID, Core::PropertyTextList, Core::PropertyLinkBase, Core::PropertyAxis2, Core::PropertyBackLinkBase, Core::PropertyProxy, Core::PropertyString, Core::PropertyLinkSetBase, Core::PropertyDirection, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyLogical, Core::PropertyAxis1, Core::PropertyColor, Core::PropertyLinkListBase, Core::PropertySearchSettings, Core::PropertyPoint, Core::PropertyRelaxation, Core::PropertyBrush, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyFont, Core::PropertyMesh, Core::PropertyBoolean, Core::PropertyBrepData, Core::PropertyCompoundPlaneAngle, Core::PropertyFace, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyDateTime, Core::PropertyPen, Core::PropertyReal, Core::PropertyTransform, Core::PropertyVector, Core::PropertyDrawStyle, Core::PropertyFile, Core::PropertyPercent, and Core::PropertyInteger.

createSQL()

virtual bool Core::Property::createSQL ( Base::AbstractWriter &  , Base::PersistanceVersion &  , bool    )

overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Reimplemented from Base::Persistance.

Reimplemented in Core::PropertyGUID, Core::PropertyString, Core::PropertyLinkBase, Core::PropertyBoolean, Core::PropertyDateTime, Core::PropertyInteger, and Core::PropertyReal.

deepCopy()

virtual void Core::Property::deepCopy ( Core::Property *  p, Core::CoreDocument *  dest_doc, DocObjectMap &  copyMap  )

virtual

Reimplemented in Core::PropertyLinkBase, Core::PropertyLinkSetBase, and Core::PropertyLinkListBase.

enableNotify()

bool Core::Property::enableNotify ( bool  on )

inline

Controls whether to call container's aboutToSetValue() and hasSetValue(), if the parameter is false the integrity of the container is lost, when the parameter is true and the integrity isn't intact ensureIntegrity is called to resolve this

getContainer()

Core::PropertyContainer* Core::Property::getContainer

(

)

const

getDbgInfo()

virtual std::shared_ptr<Core::DbgInfo> Core::Property::getDbgInfo ( ) const

virtual

Returns the debug information for this property.

Reimplemented in Core::PropertyBackLinkSetBase, Core::PropertyAxis22D, Core::PropertyGUID, Core::PropertyTexture2Transform, Core::PropertyLinkSetBase, Core::PropertyAxis2, Core::PropertyLinkListBase, Core::PropertyLinkBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyBackLinkBase, Core::PropertyTransform, and Core::PropertyDrawStyle.

getKeys()

std::vector<std::string> Core::Property::getKeys

(

)

const

Returns all keys of this property.

getKeyValueMap()

virtual std::map<std::string, Core::Variant> Core::Property::getKeyValueMap ( ) const

virtual

Returns all keys and their values of this property.

Reimplemented in Core::PropertyArrowheads, Core::PropertyAxis2, Core::PropertyPoint, Core::PropertyDrawStyle, Core::PropertyLinkBase, Core::PropertyColor, and Core::PropertyLinkSetBase.

getName()

std::string Core::Property::getName ( ) const

inline

getPropertyKind()

virtual const Core::PropertyKind Core::Property::getPropertyKind ( void  ) const

virtual

Reimplemented in Core::PropertyBackLinkSetBase, Core::PropertyLinkSetBase, Core::PropertyBackLinkBase, Core::PropertyLinkListBase, Core::PropertyLinkBase, Core::PropertySolverElementLinkVector, and Core::PropertySolverSolverLinkList.

getRegisteredProperties()

static bool Core::Property::getRegisteredProperties ( Base::Type  t, Core::PropertyValueMap &  pvm  )

static

Returns the properties with default values of type t;.

getStatus()

Property::Status Core::Property::getStatus ( ) const

inline

getTransactionNumber()

long Core::Property::getTransactionNumber ( ) const

inline

getVariant()

virtual Core::Variant Core::Property::getVariant ( void  ) const

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyPoint2d, Core::PropertyUInt8, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyListPointList, Core::PropertyAxis2List, Core::PropertyUInt32, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyMultiLineText, Core::PropertyUInt64, Core::PropertyAxis22D, Core::PropertyPointList, Core::PropertyColorList, Core::PropertyRealList, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertyArrowheads, Core::PropertyTexture2Transform, Core::PropertyGTransform, Core::PropertyAxis2D, Core::PropertyDateTimeList, Core::PropertyRelaxationSet, Core::PropertyVectorList, Core::PropertyDirection2d, Core::PropertySearchSettingsVector, Core::PropertyMD5, Core::PropertyGUID, Core::PropertyLong, Core::PropertyTextList, Core::PropertyAxis2, Core::PropertyBackLinkBase, Core::PropertyProxy, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyString, Core::PropertyDirection, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyLogical, Core::PropertyAxis1, Core::PropertyColor, Core::PropertySearchSettings, Core::PropertyLinkBase, Core::PropertyMesh, Core::PropertyPoint, Core::PropertyRelaxation, Core::PropertyBrepData, Core::PropertyBrush, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyLinkSetBase, Core::PropertyFont, Core::PropertyTransform, Core::PropertyBoolean, Core::PropertyCompoundPlaneAngle, Core::PropertyFace, Core::PropertyDateTime, Core::PropertyFile, Core::PropertyLinkListBase, Core::PropertyPen, Core::PropertyReal, Core::PropertyVector, Core::PropertyDrawStyle, Core::PropertyPercent, and Core::PropertyInteger.

getVariantFromKey()

Core::Variant Core::Property::getVariantFromKey

(

const std::string &

key

)

const

Gets the variant for a key.

getXMLPropertyAttributeName()

static const char* Core::Property::getXMLPropertyAttributeName ( )

static

getXMLPropertyAttributeValue()

static const char* Core::Property::getXMLPropertyAttributeValue ( )

static

hasSetValue()

void Core::Property::hasSetValue ( void  )

protected

Should be called by all setValue() methods after the value was changed.

hasValue()

bool Core::Property::hasValue

(

)

const

Returns 'true' if the property has a value. This is mainly for optional properties.

isDefaultValue()

bool Core::Property::isDefaultValue ( ) const

inline

isEqual()

virtual bool Core::Property::isEqual ( const Property *  ) const

pure virtual

compare properties

Implemented in Core::PropertyUInt8List, Core::PropertyEnum, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyPoint2d, Core::PropertyUInt8, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyListPointList, Core::PropertyAxis2List, Core::PropertyUInt32, Core::PropertyBackLinkSetBase, Core::PropertyTextureCoordinateMapping, Core::PropertyMultiLineText, Core::PropertyUInt64, Core::PropertyAxis22D, Core::PropertyPointList, Core::PropertyColorList, Core::PropertyRealList, Core::PropertyTexture2Transform, Core::PropertyGTransform, Core::PropertyAxis2D, Core::PropertyBrepDataSet, Core::PropertyArrowheads, Core::PropertyDirection2d, Core::PropertyDateTimeList, Core::PropertyGUID, Core::PropertyRelaxationSet, Core::PropertyVectorList, Core::PropertySearchSettingsVector, Core::PropertyMD5, Core::PropertyLong, Core::PropertyTextList, Core::PropertyLinkSetBase, Core::PropertyAxis2, Core::PropertyLinkListBase, Core::PropertyLinkBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyString, Core::PropertyBackLinkBase, Core::PropertyProxy, Core::PropertyTexture2, Core::PropertyUser, Core::PropertyAxis1, Core::PropertyLogical, Core::PropertyPoint, Core::PropertyColor, Core::PropertyDirection, Core::PropertySearchSettings, Core::PropertyMesh, Core::PropertyRelaxation, Core::PropertyTransform, Core::PropertyBrepData, Core::PropertyBrush, Core::PropertyCompoundPlaneAngle, Core::PropertyEmbeddedFile, Core::PropertyBoolean, Core::PropertyDrawStyle, Core::PropertyFont, Core::PropertyDateTime, Core::PropertyFace, Core::PropertyReal, Core::PropertyFile, Core::PropertyPen, Core::PropertyVector, Core::PropertyPercent, and Core::PropertyInteger.

isLink()

virtual bool Core::Property::isLink ( ) const

inlinevirtual

Check if Property is of type PropertyLink, LinkSet etc. For better performance.

Reimplemented in Core::PropertyLinkSetBase, Core::PropertyLinkListBase, Core::PropertyLinkBase, Core::PropertySolverElementLinkVector, and Core::PropertySolverSolverLinkList.

isNotifyEnabled()

bool Core::Property::isNotifyEnabled ( void  ) const

inline

isOptional()

virtual bool Core::Property::isOptional ( ) const

inlinevirtual

Checks if this is an optional property.

Reimplemented in Core::PropertyLengthOpt.

isTheOnlyUpdatedPropertyInContainer()

bool Core::Property::isTheOnlyUpdatedPropertyInContainer

(

)

const

Checks if this is the only updated property in the container.

isUpdated()

bool Core::Property::isUpdated

(

)

const

Checks if the property was updated.

registerProperties()

static void Core::Property::registerProperties ( Base::Type  t, const Core::PropertyValueMap &  pvm  )

static

Registers the properties with default values for type 't'.

setContainer()

void Core::Property::setContainer

(

Core::PropertyContainer *

container

)

setDefaultValue()

void Core::Property::setDefaultValue ( bool  on )

inline

setHasValue()

void Core::Property::setHasValue

(

bool

yesno

)

is called when a property holds a value. For optional properties.

setKeyValue()

virtual bool Core::Property::setKeyValue ( const std::string &  key, const Core::Variant &  value  )

virtual

Sets a sub key in this property.

Reimplemented in Core::PropertyArrowheads, Core::PropertyLinkBase, Core::PropertyPoint, Core::PropertyAxis2, Core::PropertyColor, Core::PropertyLinkSetBase, and Core::PropertyDrawStyle.

setName()

void Core::Property::setName ( const std::string &  name )

inline

setPropertyKind()

virtual void Core::Property::setPropertyKind ( Core::PropertyKind  p )

virtual

setStatus()

void Core::Property::setStatus ( const Property::Status &  in )

inline

setValueFromVariant()

virtual bool Core::Property::setValueFromVariant ( const Core::Variant &  value )

pure virtual

Implemented in Core::PropertyUInt8List, Core::PropertyIndexList, Core::PropertyPoint2dList, Core::PropertyTexture2List, Core::PropertyTypedLinkList< T >, Core::PropertyPoint2d, Core::PropertyUInt8, Core::PropertyTextureCoordinateFunction, Core::PropertyLinkList, Core::PropertyUInt32, Core::PropertyAxis2List, Core::PropertyListPointList, Core::PropertyTextureCoordinateMapping, Core::PropertyBackLinkSetBase, Core::PropertyMultiLineText, Core::PropertyUInt64, Core::PropertyAxis22D, Core::PropertyRealList, Core::PropertyDirection2d, Core::PropertyTexture2Transform, Core::PropertyAxis2D, Core::PropertyArrowheads, Core::PropertyColorList, Core::PropertyPointList, Core::PropertyGTransform, Core::PropertyBrepDataSet, Core::PropertyDirection2d, Core::PropertySearchSettingsVector, Core::PropertyRelaxationSet, Core::PropertyMD5, Core::PropertyDateTimeList, Core::PropertyVectorList, Core::PropertyLong, Core::PropertyGUID, Core::PropertyTextList, Core::PropertyBackLinkBase, Core::PropertyProxy, Core::PropertyString, Core::PropertyDirection, Core::PropertyTexture2, Core::PropertyLogical, Core::PropertyUser, Core::PropertySearchSettings, Core::PropertyRelaxation, Core::PropertyBrush, Core::PropertyDirection, Core::PropertyEmbeddedFile, Core::PropertyLinkBase, Core::PropertyAxis2, Core::PropertyFont, Core::PropertyMesh, Core::PropertyPoint, Core::PropertyAxis1, Core::PropertyBoolean, Core::PropertyBrepData, Core::PropertyCompoundPlaneAngle, Core::PropertyLinkListBase, Core::PropertySolverElementLinkVector, Core::PropertySolverSolverLinkList, Core::PropertyDateTime, Core::PropertyFace, Core::PropertyLinkSetBase, Core::PropertyPen, Core::PropertyReal, Core::PropertyTransform, Core::PropertyVector, Core::PropertyColor, Core::PropertyFile, Core::PropertyPercent, Core::PropertyDrawStyle, and Core::PropertyInteger.

setWillChangeStatusOnChange()

bool Core::Property::setWillChangeStatusOnChange ( bool  on )

inline

setXMLPropertyAttributeName()

static void Core::Property::setXMLPropertyAttributeName ( const char *  )

static

setXMLPropertyAttributeValue()

static void Core::Property::setXMLPropertyAttributeValue ( const char *  )

static

touch()

void Core::Property::touch ( )

inline

Simulates the value being changed - calls aboutToSetValue() and hasSetValue(), aboutToSetValue() is called without the optional argument Core::Variant &newValue,

• more info at the PropertyContainer's onBeforeChange() method

---

The documentation for this class was generated from the following file:

• D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/Core/include/Core/Property.h
