A conic is a planar curve which could be produced by intersecting a plane with a cone. A conic is defined in terms of its intrinsic geometric properties rather than being described in terms of other geometry. A conic class always has a placement coordinate system defined by a two or three dimensional placement. The parametric representation is defined in terms of this placement coordinate system. (Definition from ISO/CD 16739:2011) More...

#include <Conic.h>

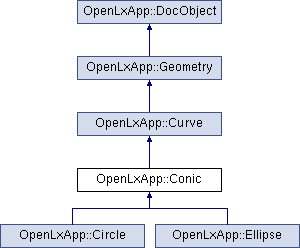

Inheritance diagram for OpenLxApp::Conic:

Public Member Functions
Geom::Ax2	getPosition () const

void	setPosition (const Geom::Ax2 &aValue)

virtual	~Conic (void)

Public Member Functions inherited from OpenLxApp::Curve
pConstWire	getWire () const

void	translate (const Geom::Vec &v)

void	transform (const Geom::Trsf &t)

void	reverse ()

double	firstParameter () const

double	lastParameter () const

void	d0 (double u, Geom::Pnt &p) const

void	d1 (double u, Geom::Pnt &p, Geom::Vec &v1) const

void	d2 (double u, Geom::Pnt &p, Geom::Vec &v1, Geom::Vec &v2) const

Geom::Pnt	value (double U) const

double	transformedParameter (double U, const Geom::Trsf &t) const

virtual	~Curve (void)

Public Member Functions inherited from OpenLxApp::Geometry
virtual	~Geometry (void)

pShape	computeShape (bool checkShape=false)

pConstShape	getShape (void) const

double	getPrecision () const

void	setPrecision (double p)

Geom::Bnd_Box	getBoundingBox () const

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Protected Member Functions
	Conic (void)

Protected Member Functions inherited from OpenLxApp::Curve
	Curve (void)

Protected Member Functions inherited from OpenLxApp::Geometry
	Geometry ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

A conic is a planar curve which could be produced by intersecting a plane with a cone. A conic is defined in terms of its intrinsic geometric properties rather than being described in terms of other geometry. A conic class always has a placement coordinate system defined by a two or three dimensional placement. The parametric representation is defined in terms of this placement coordinate system. (Definition from ISO/CD 16739:2011)

See also: Documentation from IFC4: IfcConic

Constructor & Destructor Documentation

◆ ~Conic()

virtual OpenLxApp::Conic::~Conic ( void )

virtual

◆ Conic()

OpenLxApp::Conic::Conic ( void )

inlineprotected

Member Function Documentation

◆ getPosition()

Geom::Ax2 OpenLxApp::Conic::getPosition ( ) const

◆ setPosition()

void OpenLxApp::Conic::setPosition ( const Geom::Ax2 & aValue )

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/OpenLxApp/include/OpenLxApp/Conic.h
