#include <Shape.h>

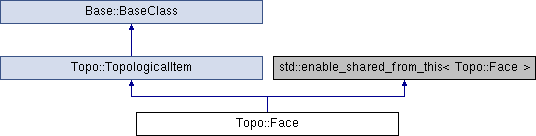

Inheritance diagram for Topo::Face:

Public Member Functions
	Face (void)

	Face (pConstFace rhs, bool deepCopy=false)

virtual	~Face (void)

virtual bool	getFaceNormal (const Geom::Pnt &pnt, Geom::Dir &dir, Geom::Pnt &pointOnFace) const =0
	Projects pnt on the face. Returns normal for this point and the calculated pointOnFace. More...

virtual void	copyFrom (pConstFace rhs, bool deepCopy=true)=0

virtual Core::DocObject *	getGeometry () const

virtual void	transform (const Geom::Trsf &)

virtual bool	getGeometricInformation (Topo::GeometricInformation &) const

Public Member Functions inherited from Topo::TopologicalItem
	TopologicalItem ()

virtual	~TopologicalItem (void)

virtual Topo::TopologicalItem::MesherType	getMesherType () const =0

virtual Topo::TopologicalItem::ModellingKernel	getModellingKernel () const =0

virtual pConstTopologicalItem	getOwner () const =0
	Returns top-level owner. Returns this if item is top-level. More...

virtual Topo::ShapeTool *	getShapeTool () const =0

virtual ENTITY *	getEntity () const

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

	BaseClass ()
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Protected Member Functions
	Face (ENTITY *ent)

virtual Topo::FaceTool *	getFaceTool () const =0

Protected Member Functions inherited from Topo::TopologicalItem
	TopologicalItem (ENTITY *)

Friends
class	FaceTool

Additional Inherited Members
Public Types inherited from Topo::TopologicalItem
enum	MesherType { MesherType::Default_Mesher, MesherType::Acis_Mesher, MesherType::Compound_Mesher }

enum	ModellingKernel { ModellingKernel::OCC, ModellingKernel::ACIS, ModellingKernel::CARVE, ModellingKernel::MIXED, ModellingKernel::UNKNOWN }

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (std::string n, int id)

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (std::string s, Base::Type classTypeId, int id)

Protected Attributes inherited from Topo::TopologicalItem
pConstTopologicalItem	source

Constructor & Destructor Documentation

◆ Face() [1/3]

Topo::Face::Face ( void )

◆ Face() [2/3]

Topo::Face::Face	(	pConstFace	rhs,
		bool	deepCopy = `false`
	)

◆ ~Face()

virtual Topo::Face::~Face ( void )

virtual

◆ Face() [3/3]

Topo::Face::Face ( ENTITY * ent )

inlineprotected

Member Function Documentation

◆ copyFrom()

virtual void Topo::Face::copyFrom	(	pConstFace	rhs,
		bool	deepCopy = `true`
	)

pure virtual

◆ getFaceNormal()

virtual bool Topo::Face::getFaceNormal	(	const Geom::Pnt &	pnt,
		Geom::Dir &	dir,
		Geom::Pnt &	pointOnFace
	)		const

pure virtual

Projects pnt on the face. Returns normal for this point and the calculated pointOnFace.

◆ getFaceTool()

virtual Topo::FaceTool* Topo::Face::getFaceTool ( ) const

protectedpure virtual

◆ getGeometricInformation()

virtual bool Topo::Face::getGeometricInformation ( Topo::GeometricInformation & ) const

inlinevirtual

Implements Topo::TopologicalItem.

◆ getGeometry()

virtual Core::DocObject* Topo::Face::getGeometry ( ) const

virtual

◆ transform()

virtual void Topo::Face::transform ( const Geom::Trsf & )

inlinevirtual

Friends And Related Function Documentation

◆ FaceTool

friend class FaceTool

friend

The documentation for this class was generated from the following file:

D:/CadworkJobs/Softwareprojekte/Lexocad/V27.0/lexocad/Topo/include/Topo/Shape.h
