OpenLxApp::PlateStandardCase Class Reference
The standard plate, PlateStandardCase, defines a plate with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The PlateStandardCase handles all cases of plates, that: More...
#include <PlateStandardCase.h>

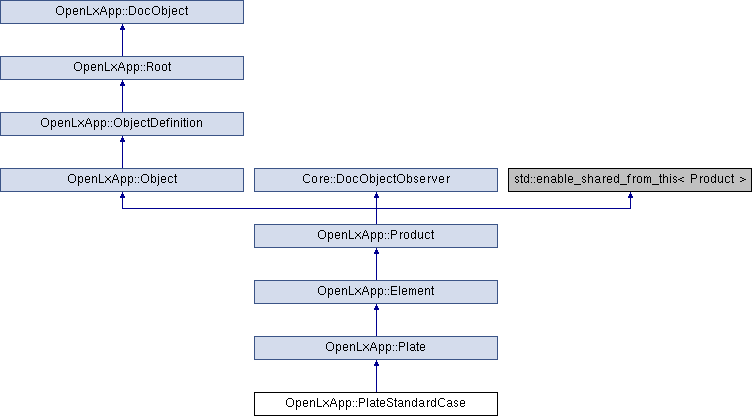

Inheritance diagram for OpenLxApp::PlateStandardCase:
Public Member Functions | |
| virtual | ~PlateStandardCase (void) |
 Public Member Functions inherited from OpenLxApp::Plate | |
| void | setPredefinedType (PlateTypeEnum aType) |
| PlateTypeEnum | getPredefinedType () const |
| virtual | ~Plate (void) |
| Public Member Functions inherited from OpenLxApp::Element | |
| void | setPlacementRelativeTo (std::shared_ptr< Element > other) |
| void | setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition) |
| std::shared_ptr< Element > | getPlacementRelativeTo () const |
| bool | setLayer (int layernumber) |
| int | getLayer () const |
| void | addOpeningElement (std::shared_ptr< OpeningElement > aOpening) |
| void | removeOpeningElement (std::shared_ptr< OpeningElement > aOpening) |
| void | removeOpeningElements () |
| std::vector< std::shared_ptr< OpeningElement > > | getOpeningElements () const |
| void | addParamCutHardElement (std::shared_ptr< Element > aElement) |
| void | addParamCutSoftElement (std::shared_ptr< Element > aElement) |
| void | removeParamCutHardElement (std::shared_ptr< Element > aElement) |
| void | removeParamCutSoftElement (std::shared_ptr< Element > aElement) |
| std::vector< std::shared_ptr< Element > > | getParamCutHardElements (bool includeAggregatedElements=false) const |
| std::vector< std::shared_ptr< Element > > | getParamCutSoftElements () const |
| bool | isParamCutHardElement () const |
| bool | isParamCutSoftElement () const |
| void | addSubElement (std::shared_ptr< SubElement > aSubElement) |
| std::vector< std::shared_ptr< SubElement > > | getSubElements () const |
| void | removeSubElement (std::shared_ptr< SubElement > aSubElement) |
| void | removeSubElements () |
| std::shared_ptr< OpeningElement > | getFilledOpeningElement () const |
| void | setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition) |
| void | removeAssociatedMaterial () |
| std::shared_ptr< MaterialSelect > | getAssociatedMaterial () const |
| bool | isTemporary () const |
| void | setTemporary (bool on) |
| std::shared_ptr< Group > | getGroup () const |
| std::shared_ptr< Element > | copy () const |
| Topo::Cdwk_SAT_Attributes | get_Cdwk_SAT_Attributes () const |
| Base::String | getTag () const |
| void | setTag (const Base::String &aTag) |
| void | setCdwkAttributeData (const CdwkAttributeData &aData) |
| std::string | getCadworkGroup () const |
| void | setBoundingBoxEnabled (bool enabled) |
| std::shared_ptr< OpenLxApp::Geometry > | getAxisRepresentation () const |
| bool | setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const |
| std::shared_ptr< OpenLxApp::Geometry > | getSolidModelRepresentation () const |
| bool | setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const |
| void | showAxisRepresentation () const |
| void | showSolidModelRepresentation () const |
| std::vector< std::shared_ptr< Element > > | getElementsConnectedAtEnd () const |
| std::vector< std::shared_ptr< Element > > | getElementsConnectedAtStart () const |
| std::vector< int > | getJointsTypeAtEnd () const |
| std::vector< int > | getJointsTypeAtStart () const |
| virtual | ~Element ()=default |
| Public Member Functions inherited from OpenLxApp::Product | |
| virtual bool | setGeometry (std::shared_ptr< Geometry > geo) |
| std::shared_ptr< Geometry > | getGeometry () const |
| Geom::Trsf | getGeometryToWorldTransform () const |
| Geom::Bnd_Box | getBoundingBox () const |
| Geom::Ax2 | getLocalPlacement () const |
| void | setLocalPlacement (const Geom::Ax2 &pos) |
| Geom::Trsf | getTransform () const |
| Geom::Trsf | getLocalToWorldTransform () const |
| void | setTransform (const Geom::Trsf &t) |
| void | translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS) |
| void | rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS) |
| bool | getLocalAxes (Geom::Ax2 &localAxes) |
| void | setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength) |
| pConstShape | getShape () const |
| pConstShape | getLocalShape () const |
| void | setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1) |
| Draw::OglMaterial | getOglMaterial () const |
| void | setAmbientColor (const Base::Color &aCol) |
| void | setDiffuseColor (const Base::Color &aCol) |
| void | setSpecularColor (const Base::Color &aCol) |
| void | setEmissiveColor (const Base::Color &aCol) |
| void | setReflectiveColor (const Base::Color &aCol) |
| void | setShininess (int aVal) |
| void | setTransparency (int aVal) |
| void | setDrawStyle (const Draw::DrawStyle &ds) |
| Draw::DrawStyle | getDrawStyle () const |
| void | setLineWidth (float width) |
| void | setTexture (const Draw::Texture2 &tex, int faceIndex=-1) |
| void | setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform()) |
| std::shared_ptr< SpatialStructureElement > | getSpatialStructure () const |
| void | setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement) |
| void | setPositionNb (long value) |
| long | getPositionNb () const |
| bool | isVisible () const |
| void | setVisible (bool onoff) |
| bool | registerPythonClass (const std::string &aClassName, const std::string &aParentClassName) |
| virtual Base::GlobalId | getGlobalClassId () const |
| std::shared_ptr< PropertyInteger > | registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyEnum > | registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyDouble > | registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyButton > | registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyBool > | registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyString > | registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< PropertyColor > | registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1) |
| std::shared_ptr< OpenLxApp::Property > | getProperty (const std::string &aName) const |
| std::map< std::string, std::shared_ptr< Property > > | getPropertyMap () const |
| std::shared_ptr< PropertyInteger > | getPropertyInteger (const std::string &aName) const |
| std::shared_ptr< PropertyEnum > | getPropertyEnum (const std::string &aName) const |
| std::shared_ptr< PropertyDouble > | getPropertyDouble (const std::string &aName) const |
| std::shared_ptr< PropertyButton > | getPropertyButton (const std::string &aName) const |
| std::shared_ptr< PropertyBool > | getPropertyBool (const std::string &aName) const |
| std::shared_ptr< PropertyString > | getPropertyString (const std::string &aName) const |
| std::shared_ptr< PropertyColor > | getPropertyColor (const std::string &aName) const |
| bool | isRegisteredProperty (const std::string &aName) const |
| void | updatePythonProductVersion () |
| virtual int | getScriptVersion () |
| virtual void | convertFromOldVersion (int pythonProductVersion) |
| virtual void | onPropertyChanged (const std::string &aPropertyName) |
| virtual void | onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt) |
| virtual void | translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt) |
| void | setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy) |
| void | setPropertyHeader (const Base::String &aDefaultName, int aTranslationId) |
| void | setPropertyHeader (const Base::String &aDefaultName) |
| void | setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId) |
| void | setPropertyGroupName (const Base::String &aDefaultName) |
| Base::String | getPropertyHeader () const |
| Base::String | getPropertyGroupName () const |
| std::shared_ptr< PropertyUser > | getPropertyUser (const std::string &aName) const |
| std::vector< std::shared_ptr< PropertyUser > > | getPropertyUser () const |
| std::vector< Base::String > | getPropertySetNames () const |
| std::shared_ptr< PropertySet > | getPropertySetByName (const Base::String &aName) const |
| virtual | ~Product (void) |
| ExternalPythonTypeObject * | getExternalPythonTypeObject () const |
| void | setExternalPythonTypeObject (ExternalPythonTypeObject *aObj) |
| void | removeExternalTypeObject () |
| Public Member Functions inherited from OpenLxApp::Object | |
| virtual | ~Object (void) |
| Public Member Functions inherited from OpenLxApp::ObjectDefinition | |
| std::vector< std::shared_ptr< ObjectDefinition > > | getDecompositionObjects () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllDecompositionObjects () const |
| std::shared_ptr< ObjectDefinition > | getDecomposedObject () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllDecomposedObjects () const |
| void | addAggregationObject (std::shared_ptr< ObjectDefinition > aObject) |
| void | addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects) |
| void | removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject) |
| void | removeAggregationObjects () |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAggregationObjects () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllAggregationObjects () const |
| std::shared_ptr< ObjectDefinition > | getAggregatedObject () const |
| std::vector< std::shared_ptr< ObjectDefinition > > | getAllAggregatedObjects () const |
| void | addAssociationObject (std::shared_ptr< Root > aObject) |
| std::vector< std::shared_ptr< Root > > | getAssociationObjects () const |
| std::shared_ptr< LxIfcBase::LxIfcProperty > | getIfcPropertySets () const |
| virtual | ~ObjectDefinition (void) |
| Public Member Functions inherited from OpenLxApp::Root | |
| Base::GlobalId | getGlobalId () const |
| bool | setGlobalId (const Base::GlobalId &aGlobalId) |
| void | setUserName (const Base::String &aName) |
| Base::String | getUserName () const |
| virtual | ~Root (void) |
| Public Member Functions inherited from OpenLxApp::DocObject | |
| std::shared_ptr< Document > | getDocument () const |
| bool | isNew () const |
| bool | isUpdated () const |
| bool | isValid () const |
| bool | hasErrors () const |
| void | touch () |
| LxIfc4::LxIfc4EntityEnum | getEntityType () const |
| std::string | getEntityTypeAsString () const |
| std::shared_ptr< Core::DbgInfo > | getDbgInfo () const |
| DocObject (Core::DocObject *aObject) | |
| virtual | ~DocObject (void) |
| Core::DocObject * | __getObj__ () const |
Protected Member Functions | |
| PlateStandardCase () | |
| Protected Member Functions inherited from OpenLxApp::Plate | |
| Plate () | |
| Protected Member Functions inherited from OpenLxApp::Element | |
| Element ()=default | |
| void | _copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const |
| Protected Member Functions inherited from OpenLxApp::Product | |
| void | onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override |
| Product () | |
| Protected Member Functions inherited from OpenLxApp::Object | |
| Object () | |
| Protected Member Functions inherited from OpenLxApp::ObjectDefinition | |
| ObjectDefinition () | |
| Protected Member Functions inherited from OpenLxApp::Root | |
| Root () | |
| Protected Member Functions inherited from OpenLxApp::DocObject | |
| DocObject () | |
Additional Inherited Members | |
| Public Types inherited from OpenLxApp::Plate | |
| enum | PlateTypeEnum { PlateTypeEnum::CURTAIN_PANEL, PlateTypeEnum::SHEET, PlateTypeEnum::USERDEFINED, PlateTypeEnum::NOTDEFINED } |
| Protected Attributes inherited from OpenLxApp::DocObject | |
| Core::DocObject * | _coreObj = nullptr |
Detailed Description
The standard plate, PlateStandardCase, defines a plate with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The PlateStandardCase handles all cases of plates, that:
- have a reference to the MaterialLayerSetUsage defining the material layers of the plate with thicknesses
- are based on an extrusion of a planar surface as defined by the plate profile
- have a constant thickness along the extrusion direction
- are consistent in using the correct material layer set offset to the base planar surface in regard to the shape representation
- are extruded perpendicular to the plane surface
The definitions of plate openings and niches are the same as given at the supertype Plate. The same agreements to the special types of plates, as defined in the PredefinedType attribute apply as well.
Constructor & Destructor Documentation
◆ ~PlateStandardCase()
|
virtual |
◆ PlateStandardCase()
|
inlineprotected |
The documentation for this class was generated from the following file:
- D:/CadworkJobs/SoftwareProjekte/Lexocad/LexoGit/Lexocad/lexocad/OpenLxApp/include/OpenLxApp/PlateStandardCase.h
