The standard beam, BeamStandardCase, defines a beam with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The BeamStandardCase handles all cases of beams, that: More...

#include <BeamStandardCase.h>

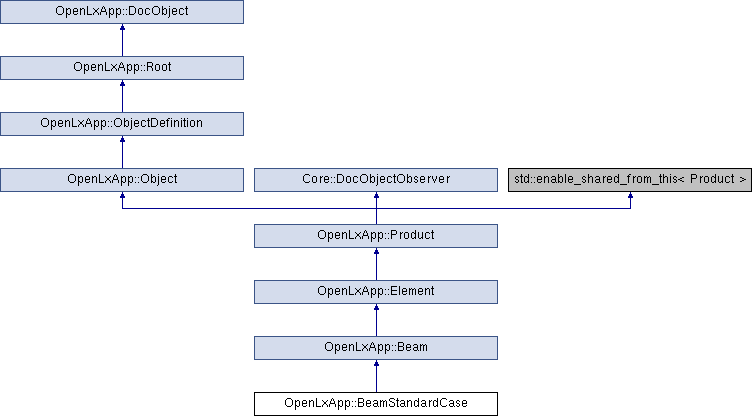

Inheritance diagram for OpenLxApp::BeamStandardCase:

Public Member Functions
virtual	~BeamStandardCase (void)

Public Member Functions inherited from OpenLxApp::Beam
void	setPredefinedType (BeamTypeEnum aType)

BeamTypeEnum	getPredefinedType () const

virtual	~Beam (void)

Public Member Functions inherited from OpenLxApp::Element
void	setPlacementRelativeTo (std::shared_ptr< Element > other)

void	setPlacementRelativeTo (std::shared_ptr< Element > other, bool keepGlobalPosition)

std::shared_ptr< Element >	getPlacementRelativeTo () const

bool	setLayer (int layernumber)

int	getLayer () const

void	addOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElement (std::shared_ptr< OpeningElement > aOpening)

void	removeOpeningElements ()

std::vector< std::shared_ptr< OpeningElement > >	getOpeningElements () const

void	addParamCutHardElement (std::shared_ptr< Element > aElement)

void	addParamCutSoftElement (std::shared_ptr< Element > aElement)

void	removeParamCutHardElement (std::shared_ptr< Element > aElement)

void	removeParamCutSoftElement (std::shared_ptr< Element > aElement)

std::vector< std::shared_ptr< Element > >	getParamCutHardElements (bool includeAggregatedElements=false) const

std::vector< std::shared_ptr< Element > >	getParamCutSoftElements () const

bool	isParamCutHardElement () const

bool	isParamCutSoftElement () const

void	addSubElement (std::shared_ptr< SubElement > aSubElement)

std::vector< std::shared_ptr< SubElement > >	getSubElements () const

void	removeSubElement (std::shared_ptr< SubElement > aSubElement)

void	removeSubElements ()

std::shared_ptr< OpeningElement >	getFilledOpeningElement () const

void	setAssociatedMaterial (std::shared_ptr< MaterialDefinition > aMaterialDefinition)

void	removeAssociatedMaterial ()

std::shared_ptr< MaterialSelect >	getAssociatedMaterial () const

bool	isTemporary () const

void	setTemporary (bool on)

std::shared_ptr< Group >	getGroup () const

std::shared_ptr< Element >	copy () const

Topo::Cdwk_SAT_Attributes	get_Cdwk_SAT_Attributes () const

Base::String	getTag () const

void	setTag (const Base::String &aTag)

void	setCdwkAttributeData (const CdwkAttributeData &aData)

std::string	getCadworkGroup () const

void	setBoundingBoxEnabled (bool enabled)

std::shared_ptr< OpenLxApp::Geometry >	getAxisRepresentation () const

bool	setAxisRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

std::shared_ptr< OpenLxApp::Geometry >	getSolidModelRepresentation () const

bool	setSolidModelRepresentation (std::shared_ptr< OpenLxApp::Geometry > aGeometry) const

void	showAxisRepresentation () const

void	showSolidModelRepresentation () const

std::vector< std::shared_ptr< Element > >	getElementsConnectedAtEnd () const

std::vector< std::shared_ptr< Element > >	getElementsConnectedAtStart () const

std::vector< int >	getJointsTypeAtEnd () const

std::vector< int >	getJointsTypeAtStart () const

virtual	~Element ()=default

Public Member Functions inherited from OpenLxApp::Product
virtual bool	setGeometry (std::shared_ptr< Geometry > geo)

std::shared_ptr< Geometry >	getGeometry () const

Geom::Trsf	getGeometryToWorldTransform () const

Geom::Bnd_Box	getBoundingBox () const

Geom::Ax2	getLocalPlacement () const

void	setLocalPlacement (const Geom::Ax2 &pos)

Geom::Trsf	getTransform () const

Geom::Trsf	getLocalToWorldTransform () const

void	setTransform (const Geom::Trsf &t)

void	translate (const Geom::Vec &aVec, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

void	rotate (const Geom::Ax1 &axis, double angle, Geom::CoordSpace aCoordSpace=Geom::CoordSpace::WCS)

bool	getLocalAxes (Geom::Ax2 &localAxes)

void	setLocalAxes (const Geom::Dir &zHeight, const Geom::Dir &xLength)

pConstShape	getShape () const

pConstShape	getLocalShape () const

void	setOglMaterial (const Draw::OglMaterial &mat, int faceIndex=-1)

Draw::OglMaterial	getOglMaterial () const

void	setAmbientColor (const Base::Color &aCol)

void	setDiffuseColor (const Base::Color &aCol)

void	setSpecularColor (const Base::Color &aCol)

void	setEmissiveColor (const Base::Color &aCol)

void	setReflectiveColor (const Base::Color &aCol)

void	setShininess (int aVal)

void	setTransparency (int aVal)

void	setDrawStyle (const Draw::DrawStyle &ds)

Draw::DrawStyle	getDrawStyle () const

void	setLineWidth (float width)

void	setTexture (const Draw::Texture2 &tex, int faceIndex=-1)

void	setLengthAndCrossTexture (const Draw::Texture2 &lengthTexture, const Draw::Texture2 &crossTexture, const Draw::Texture2Transform &lengthTextureTrsf=Draw::Texture2Transform(), const Draw::Texture2Transform &crossTextureTrsf=Draw::Texture2Transform())

std::shared_ptr< SpatialStructureElement >	getSpatialStructure () const

void	setSpatialStructure (std::shared_ptr< SpatialStructureElement > aSpatialStructureElement)

void	setPositionNb (long value)

long	getPositionNb () const

bool	isVisible () const

void	setVisible (bool onoff)

bool	registerPythonClass (const std::string &aClassName, const std::string &aParentClassName)

virtual Base::GlobalId	getGlobalClassId () const

std::shared_ptr< PropertyInteger >	registerPropertyInteger (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyEnum >	registerPropertyEnum (const std::string &aName, int aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyDouble >	registerPropertyDouble (const std::string &aName, double aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyButton >	registerPropertyButton (const std::string &aName, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyBool >	registerPropertyBool (const std::string &aName, bool aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyString >	registerPropertyString (const std::string &aName, Base::String aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< PropertyColor >	registerPropertyColor (const std::string &aName, Base::Color aDefaultValue, Property::Visible aVisible=Property::VISIBLE, Property::Editable aEditable=Property::EDITABLE, int aTranslationId=-1)

std::shared_ptr< OpenLxApp::Property >	getProperty (const std::string &aName) const

std::map< std::string, std::shared_ptr< Property > >	getPropertyMap () const

std::shared_ptr< PropertyInteger >	getPropertyInteger (const std::string &aName) const

std::shared_ptr< PropertyEnum >	getPropertyEnum (const std::string &aName) const

std::shared_ptr< PropertyDouble >	getPropertyDouble (const std::string &aName) const

std::shared_ptr< PropertyButton >	getPropertyButton (const std::string &aName) const

std::shared_ptr< PropertyBool >	getPropertyBool (const std::string &aName) const

std::shared_ptr< PropertyString >	getPropertyString (const std::string &aName) const

std::shared_ptr< PropertyColor >	getPropertyColor (const std::string &aName) const

bool	isRegisteredProperty (const std::string &aName) const

void	updatePythonProductVersion ()

virtual int	getScriptVersion ()

virtual void	convertFromOldVersion (int pythonProductVersion)

virtual void	onPropertyChanged (const std::string &aPropertyName)

virtual void	onScaling (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

virtual void	translateAfterScaled (const Geom::Vec &aVec, const Geom::Pnt &aScaleBasePnt)

void	setStandardManipulatorPolicy (const Core::StandardManipulatorPolicy &aPolicy)

void	setPropertyHeader (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyHeader (const Base::String &aDefaultName)

void	setPropertyGroupName (const Base::String &aDefaultName, int aTranslationId)

void	setPropertyGroupName (const Base::String &aDefaultName)

Base::String	getPropertyHeader () const

Base::String	getPropertyGroupName () const

std::shared_ptr< PropertyUser >	getPropertyUser (const std::string &aName) const

std::vector< std::shared_ptr< PropertyUser > >	getPropertyUser () const

std::vector< Base::String >	getPropertySetNames () const

std::shared_ptr< PropertySet >	getPropertySetByName (const Base::String &aName) const

virtual	~Product (void)

ExternalPythonTypeObject *	getExternalPythonTypeObject () const

void	setExternalPythonTypeObject (ExternalPythonTypeObject *aObj)

void	removeExternalTypeObject ()

Public Member Functions inherited from OpenLxApp::Object
virtual	~Object (void)

Public Member Functions inherited from OpenLxApp::ObjectDefinition
std::vector< std::shared_ptr< ObjectDefinition > >	getDecompositionObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecompositionObjects () const

std::shared_ptr< ObjectDefinition >	getDecomposedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllDecomposedObjects () const

void	addAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	addAggregationObjects (const std::vector< std::shared_ptr< ObjectDefinition >> &aObjects)

void	removeAggregationObject (std::shared_ptr< ObjectDefinition > aObject)

void	removeAggregationObjects ()

std::vector< std::shared_ptr< ObjectDefinition > >	getAggregationObjects () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregationObjects () const

std::shared_ptr< ObjectDefinition >	getAggregatedObject () const

std::vector< std::shared_ptr< ObjectDefinition > >	getAllAggregatedObjects () const

void	addAssociationObject (std::shared_ptr< Root > aObject)

std::vector< std::shared_ptr< Root > >	getAssociationObjects () const

std::shared_ptr< LxIfcBase::LxIfcProperty >	getIfcPropertySets () const

virtual	~ObjectDefinition (void)

Public Member Functions inherited from OpenLxApp::Root
Base::GlobalId	getGlobalId () const

bool	setGlobalId (const Base::GlobalId &aGlobalId)

void	setUserName (const Base::String &aName)

Base::String	getUserName () const

virtual	~Root (void)

Public Member Functions inherited from OpenLxApp::DocObject
std::shared_ptr< Document >	getDocument () const

bool	isNew () const

bool	isUpdated () const

bool	isValid () const

bool	hasErrors () const

void	touch ()

LxIfc4::LxIfc4EntityEnum	getEntityType () const

std::string	getEntityTypeAsString () const

std::shared_ptr< Core::DbgInfo >	getDbgInfo () const

	DocObject (Core::DocObject *aObject)

virtual	~DocObject (void)

Core::DocObject *	__getObj__ () const

Protected Member Functions
	BeamStandardCase ()

Protected Member Functions inherited from OpenLxApp::Beam
	Beam ()

Protected Member Functions inherited from OpenLxApp::Element
	Element ()=default

void	_copySubElems (App::Element *fromElem, std::shared_ptr< Element > toElem) const

Protected Member Functions inherited from OpenLxApp::Product
void	onChange (Core::DocObject *aCaller, const Core::DocObjectObserverMsg &aReason) override

	Product ()

Protected Member Functions inherited from OpenLxApp::Object
	Object ()

Protected Member Functions inherited from OpenLxApp::ObjectDefinition
	ObjectDefinition ()

Protected Member Functions inherited from OpenLxApp::Root
	Root ()

Protected Member Functions inherited from OpenLxApp::DocObject
	DocObject ()

Additional Inherited Members
Public Types inherited from OpenLxApp::Beam
enum	BeamTypeEnum { BeamTypeEnum::BEAM, BeamTypeEnum::JOIST, BeamTypeEnum::HOLLOWCORE, BeamTypeEnum::LINTEL, BeamTypeEnum::SPANDREL, BeamTypeEnum::T_BEAM, BeamTypeEnum::USERDEFINED, BeamTypeEnum::NOTDEFINED }

Static Public Member Functions inherited from OpenLxApp::Beam
static std::shared_ptr< Beam >	buildFrom2Points (std::shared_ptr< Document > aDoc, double aWidth, double aHeight, const Geom::Pnt &aPnt1, const Geom::Pnt &aPnt2)

Protected Attributes inherited from OpenLxApp::DocObject
Core::DocObject *	_coreObj = nullptr

Detailed Description

The standard beam, BeamStandardCase, defines a beam with certain constraints for the provision of material usage, parameters and with certain constraints for the geometric representation. The BeamStandardCase handles all cases of beams, that:

have a reference to the MaterialProfileSetUsage defining the material profile association of the beam with the cardinal point of its insertion relative to the local placement.
are consistent in using the correct cardinal point offset of the profile as compared to the 'Axis' and 'Body' shape representation
are based on a sweep of a planar profile, or set of profiles, as defined by the MaterialProfileSet
have an 'Axis' shape representation with constraints provided below in the geometry use definition
have a 'Body' shape representation with constraints provided below in the geometry use definition
- are extruded perpendicular to the profile definition plane
- have a start profile, or set of profiles, that is swept
- the sweeping operation can be linear extrusion, circular rotation, or a sweep along a directrix
- the start profile, or set of profiles can be swept unchanged, or might be changed uniformly by a taper definition

See also: Documentation from IFC4: IfcBeamStandardCase

Constructor & Destructor Documentation

◆ ~BeamStandardCase()

virtual OpenLxApp::BeamStandardCase::~BeamStandardCase ( void )

virtual

◆ BeamStandardCase()

OpenLxApp::BeamStandardCase::BeamStandardCase ( )

inlineprotected

The documentation for this class was generated from the following file:

D:/CadworkJobs/SoftwareProjekte/Lexocad/LexoGit/Lexocad/lexocad/OpenLxApp/include/OpenLxApp/BeamStandardCase.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~BeamStandardCase()

◆ BeamStandardCase()
