Topo::Wire Class Referenceabstract
Shapes

#include <Shape.h>

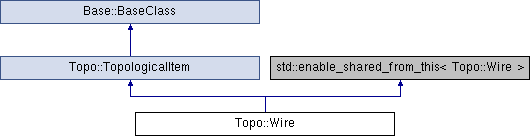

Inheritance diagram for Topo::Wire:
Topo::TopologicalItem Base::BaseClass

Public Member Functions

 Wire ()=default

virtual ~Wire ()=default

virtual void copyFrom (pConstWire rhs, bool deepCopy=true)=0

virtual int getEdgeCount () const =0

virtual pConstEdge getEdgeByIndex (int idx) const =0

virtual void transform (const Geom::Trsf &)

virtual bool isLoop () const

- Public Member Functions inherited from Topo::TopologicalItem
 TopologicalItem ()=default

virtual ~TopologicalItem ()=default

virtual MesherType getMesherType () const =0

virtual ModelingKernel getModelingKernel () const =0

virtual pConstTopologicalItem getOwner () const =0
 Returns top-level owner. Returns this if item is top-level. More...

virtual Topo::ShapeTool * getShapeTool () const =0

virtual bool getGeometricInformation (Topo::GeometricInformation &) const

virtual ENTITY * getEntity () const

- Public Member Functions inherited from Base::BaseClass
virtual Type getTypeId (void) const

template<typename T >
bool isDerivedFrom () const

bool isDerivedFrom (const Type type) const

void * operator new (size_t size)

void operator delete (void *p)

BaseClass * operator-> ()

BaseClass * operator-> () const

 BaseClass ()=default
 Construction. More...

virtual ~BaseClass ()
 Destruction. More...


Protected Member Functions

 Wire (ENTITY *ent)

virtual Topo::WireTool * getWireTool () const =0

- Protected Member Functions inherited from Topo::TopologicalItem
 TopologicalItem (ENTITY *)


Friends

class WireTool


Additional Inherited Members

- Public Types inherited from Topo::TopologicalItem
enum  MesherType { MesherType::Default_Mesher, MesherType::Acis_Mesher, MesherType::Compound_Mesher }

enum  ModelingKernel {
  ModelingKernel::OCC, ModelingKernel::ACIS, ModelingKernel::CARVE, ModelingKernel::MIXED,
  ModelingKernel::UNKNOWN
}

- Static Public Member Functions inherited from Base::BaseClass
static Type getClassTypeId (void)

static void init (void)

static void * create (void)

static void setIfcNameAndID (const std::string &n, int id)

- Public Attributes inherited from Base::BaseClass
long ____deadVal = 0xBADEAFFE

- Static Protected Member Functions inherited from Base::BaseClass
static void initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)

static void initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

- Protected Attributes inherited from Topo::TopologicalItem
pConstTopologicalItem source {}


Constructor & Destructor Documentation

◆ Wire() [1/2]

Topo::Wire::Wire ( )
default

◆ ~Wire()

virtual Topo::Wire::~Wire ( )
virtualdefault

◆ Wire() [2/2]

Topo::Wire::Wire ( ENTITY *  ent)
inlineprotected

Member Function Documentation

◆ copyFrom()

virtual void Topo::Wire::copyFrom ( pConstWire  rhs,
bool  deepCopy = true
)
pure virtual

◆ getEdgeByIndex()

virtual pConstEdge Topo::Wire::getEdgeByIndex ( int  idx) const
pure virtual

◆ getEdgeCount()

virtual int Topo::Wire::getEdgeCount ( ) const
pure virtual

◆ getWireTool()

virtual Topo::WireTool* Topo::Wire::getWireTool ( ) const
protectedpure virtual

◆ isLoop()

virtual bool Topo::Wire::isLoop ( ) const
inlinevirtual

◆ transform()

virtual void Topo::Wire::transform ( const Geom::Trsf &  )
inlinevirtual

Friends And Related Function Documentation

◆ WireTool

friend class WireTool
friend
The documentation for this class was generated from the following file:
