Geom::Geometry2d Class Referenceabstract

#include <Geometry2d.h>

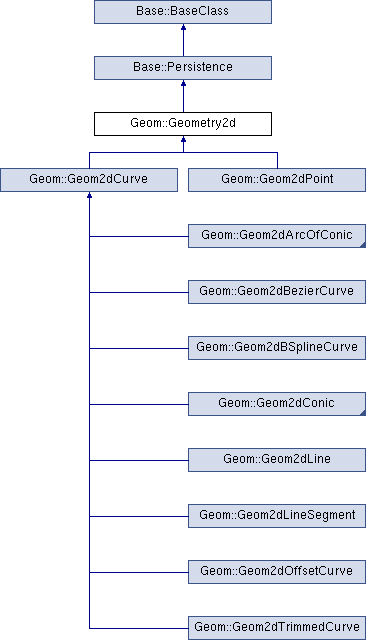

Inheritance diagram for Geom::Geometry2d:
Base::Persistence Base::BaseClass Geom::Geom2dCurve Geom::Geom2dPoint Geom::Geom2dArcOfConic Geom::Geom2dBezierCurve Geom::Geom2dBSplineCurve Geom::Geom2dConic Geom::Geom2dLine Geom::Geom2dLineSegment Geom::Geom2dOffsetCurve Geom::Geom2dTrimmedCurve

Public Member Functions

virtual ~Geometry2d ()

virtual TopoDS_Shape toShape () const =0

virtual const Handle (Geom2d_Geometry) &handle() const =0

virtual void save (Base::AbstractWriter &, Base::PersistenceVersion &) override
 This method is used to save properties or very small amounts of data to an XML document. More...

virtual void restore (Base::AbstractXMLReader &, Base::PersistenceVersion &) override
 This method is used to restore properties from an XML document. More...

virtual Geometry2d * clone (void) const =0
 returns a cloned object More...

- Public Member Functions inherited from Base::Persistence
virtual void saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
 This method is used to save large amounts of data to a binary file. More...

virtual void restoreDocFile (Base::Reader &, const Base::String &)
 This method is used to restore large amounts of data from a binary file. More...

virtual bool mustbeSaved () const
 Return 'true' if this object must always be saved in the file. More...

virtual bool createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
 This method is used to save properties or very small amounts of data to an XML document. More...

- Public Member Functions inherited from Base::BaseClass
virtual Type getTypeId (void) const

template<typename T >
bool isDerivedFrom () const

bool isDerivedFrom (const Type type) const

void * operator new (size_t size)

void operator delete (void *p)

BaseClass * operator-> ()

BaseClass * operator-> () const

 BaseClass ()=default
 Construction. More...

virtual ~BaseClass ()
 Destruction. More...


Protected Member Functions

 Geometry2d ()


Additional Inherited Members

- Static Public Member Functions inherited from Base::Persistence
static std::string encodeAttribute (const std::string &)

- Static Public Member Functions inherited from Base::BaseClass
static Type getClassTypeId (void)

static void init (void)

static void * create (void)

static void setIfcNameAndID (const std::string &n, int id)

- Public Attributes inherited from Base::BaseClass
long ____deadVal = 0xBADEAFFE

- Static Protected Member Functions inherited from Base::BaseClass
static void initSubclass (Base::Type &toInit, const char *ClassName, const char *ParentName, Type::instantiationMethod method=0)

static void initIfcTypes (const std::string &s, Base::Type classTypeId, int id)


Constructor & Destructor Documentation

◆ ~Geometry2d()

virtual Geom::Geometry2d::~Geometry2d ( )
virtual

◆ Geometry2d()

Geom::Geometry2d::Geometry2d ( )
protected

Member Function Documentation

◆ clone()

virtual Geometry2d* Geom::Geometry2d::clone ( void  ) const
pure virtual

returns a cloned object

Implemented in Geom::Geom2dArcOfConic, Geom::Geom2dConic, Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

◆ Handle()

virtual const Geom::Geometry2d::Handle ( Geom2d_Geometry  ) const &
pure virtual

Implemented in Geom::Geom2dArcOfConic, Geom::Geom2dConic, Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

◆ restore()

virtual void Geom::Geometry2d::restore ( Base::AbstractXMLReader &  ,
Base::PersistenceVersion &
)
overridevirtual

This method is used to restore properties from an XML document.

Implements Base::Persistence.

Reimplemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

◆ save()

virtual void Geom::Geometry2d::save ( Base::AbstractWriter &  ,
Base::PersistenceVersion &
)
overridevirtual

This method is used to save properties or very small amounts of data to an XML document.

Implements Base::Persistence.

Reimplemented in Geom::Geom2dTrimmedCurve, Geom::Geom2dOffsetCurve, Geom::Geom2dLineSegment, Geom::Geom2dLine, Geom::Geom2dArcOfParabola, Geom::Geom2dParabola, Geom::Geom2dArcOfHyperbola, Geom::Geom2dHyperbola, Geom::Geom2dArcOfEllipse, Geom::Geom2dEllipse, Geom::Geom2dArcOfCircle, Geom::Geom2dCircle, Geom::Geom2dBSplineCurve, Geom::Geom2dBezierCurve, and Geom::Geom2dPoint.

◆ toShape()

virtual TopoDS_Shape Geom::Geometry2d::toShape ( ) const
pure virtual

Implemented in Geom::Geom2dCurve, and Geom::Geom2dPoint.

The documentation for this class was generated from the following file:
