#include <CoreDocument.h>

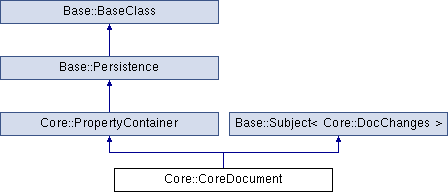

Inheritance diagram for Core::CoreDocument:

Public Types
enum	Status { SkipRecompute = 0, KeepTrailingDigits = 1, Closable = 2, Restoring = 3, Recomputing = 4, PartialRestore = 5, Importing = 6, PartialDoc = 7, AllowPartialRecompute = 8, TempDoc = 9, RestoreError = 10 }

Public Types inherited from Base::Subject< Core::DocChanges >
typedef Observer< Core::DocChanges >	ObserverType

typedef Core::DocChanges	MessageType

typedef Subject< Core::DocChanges >	SubjectType

Public Member Functions
int	getDocumentVersion () const
	Returns the version of the document. More...

bool	addObject (Core::DocObject *e)
	Adds an existing object to the document. More...

void	removeObject (Core::DocObject *e)
	Removes an object from the document. More...

virtual void	removeObjectFinal (Core::DocObject *e, bool deep=false)
	Removes an object from the document. More...

void	removeObjects (const std::vector< Core::DocObject * > &objects)
	Removes objects from the document. More...

virtual void	onFileOpened ()
	Is called when the file was opened, but before the message FileOpened gets emitted. Can be overwritten to add custom behavior. More...

void	onBeforeChangeProperty (const Core::DocObject Who, const Property What)
	callback from the Document objects before property will be changed More...

void	onChangedProperty (const Core::DocObject Who, const Property What)
	callback from the Document objects after property was changed More...

virtual bool	onChangedDebug (Core::DocObject o, Core::Property p)

Base::Type	getCopyType () const

void	clearCopyType ()
	Sets the copy type to Base::Type::badType(), next copied object will be copied as its own type. More...

Core::DocObject *	copyObject (Core::DocObject *o, DocObjectMap &copyMap)
	Creates a copy of 'o' and adds it to the document, provides map of pairs original-copy to see which object is a copy of another one. More...

Core::DocObject *	copyObject (Core::DocObject *o)

Core::DocObject *	copyToDifferentType (Core::DocObject *o, Base::Type typeToCreate, DocObjectMap &copyMap)
	Creates an object of type 'typeToCreate' and copy properties from 'o' to it. Provides map of pairs original-copy. More...

Core::DocObject *	copySharedObject (Core::DocObject *o, DocObjectMap &copyMap)
	Copy shared object. This is violating of the share, but in some cases this is useful. Use wisely!! More...

template<typename Type >
Type	copyObjectShallow (Type o)
	Creates a copy of 'o' and adds it to the document. Performs shallow copy. More...

std::vector< Core::DocObject * >	getObjects (bool includeDeletedObjects=false) const
	Returns all objects in the document. More...

std::vector< const Core::DocObject * >	getObjectsConst (bool includeDeletedObjects=false) const

virtual std::vector< Core::DocObject * >	getObjectsSorted () const
	Returns all objects topologically sorted. More...

Core::DocObject *	createObjectFromTypeName (const char *typeName)
	Creates an object from type name and adds it to the document. More...

Core::DocObject *	createObjectFromType (Base::Type type)
	Creates an object from type and adds it to the document. More...

std::vector< Core::DocObject * >	getObjectsByTypeName (const std::string &typeName) const
	Returns all objects of typeName. More...

virtual void	recompute ()
	Recomputes the document. More...

virtual void	recompute (std::function< void(DOCOBJECTS newObj, DOCOBJECTS updatedObj, DOCOBJECTS deletedObj, DOCOBJECTS_ERROR_MAP errorObj)> onRecomputedCB)

virtual bool	saveAs (const Base::String &filename)
	Saves the document under this name*. More...

Base::String	getTmpDirectory ()
	Returns the temporary directory. More...

bool	isActive () const
	Returns 'true' if the Document is the active Document. Otherwise returns 'false'. More...

virtual bool	isChanged ()
	Returns 'true' if the document is changed. More...

Core::DocObject *	getObjectByGlobalId (const Base::GlobalId &guid) const
	Returns the DocObject with this GUID. More...

std::string	getDocXMLAsString ()

bool	testStatusBits (Status pos) const
	return the status bits More...

void	setStatusBits (Status pos, bool on)
	set the status bits More...

methods for the UNDO REDO and Transaction handling
Introduce a new concept of transaction ID. Each transaction must be unique inside the document. Multiple transactions from different documents can be grouped together with the same transaction ID. When undo, Gui component can query getAvailableUndo(id) to see if it is possible to undo with a given ID. If there more than one undo transactions, meaning that there are other transactions before the given ID. The Gui component shall ask user if he wants to undo multiple steps. And if the user agrees, call undo(id) to unroll all transaction before and including the the one with the give ID. Same applies for redo. The new transaction ID describe here is fully backward compatible. Calling the APIs with a default id=0 gives the original behavior.
void	setUndoMode (int iMode)
	switch the level of Undo/Redo More...

int	getUndoMode (void) const
	switch the level of Undo/Redo More...

void	setTransactionMode (int iMode)
	switch the transaction mode More...

int	openTransaction (const char *name=0)

void	renameTransaction (const char *name, int id)
	Rename the current transaction if the id matches. More...

void	commitTransaction ()
	Commit the Command transaction. Do nothing If there is no Command transaction open. More...

void	abortTransaction ()
	Abort the actually running transaction. More...

bool	hasPendingTransaction () const
	Check if a transaction is open. More...

const char *	getPendingTransactionName () const
	Returns pending transaction name. Returns nullptr if there is no pending transaction. More...

int	getTransactionID (bool undo, unsigned pos=0) const
	Return the undo/redo transaction ID starting from the back. More...

bool	isTransactionEmpty () const

void	setUndoLimit (unsigned int UndoMemSize=0)
	Set the Undo limit in Byte! More...

void	setMaxUndoStackSize (unsigned int UndoMaxStackSize=20)
	Set the Undo limit as stack size. More...

unsigned int	getMaxUndoStackSize (void) const
	Set the Undo limit as stack size. More...

void	clearUndos ()
	Remove all stored Undos and Redos. More...

int	getAvailableUndos (int id=0) const
	Returns the number of stored Undos. If greater than 0 Undo will be effective. More...

std::vector< std::string >	getAvailableUndoNames () const
	Returns a list of the Undo names. More...

bool	undo (int id=0)
	Will UNDO one step, returns False if no undo was done (Undos == 0). More...

int	getAvailableRedos (int id=0) const
	Returns the number of stored Redos. If greater than 0 Redo will be effective. More...

std::vector< std::string >	getAvailableRedoNames () const
	Returns a list of the Redo names. More...

bool	redo (int id=0)
	Will REDO one step, returns False if no redo was done (Redos == 0). More...

bool	isPerformingTransaction () const
	returns true if the document is in an Transaction phase, e.g. currently performing a redo/undo or rollback More...

virtual Core::DocObject *	getObjectById (const DocObject::IdType &id) const
	Returns the object with this id. More...

Core::DocObject *	getObjectByUserName (const Base::String &s) const
	Returns the object with this userName. More...

void	setRecommendFileNameForSave (const Base::String &s)

virtual void	emitAndNotify (Core::DocChanges &aDocChanges)

Public Member Functions inherited from Core::PropertyContainer
	PropertyContainer (void)

	PropertyContainer (const PropertyContainer &rhs)

virtual	~PropertyContainer (void)=default

bool	addProperty (Core::Property *p, const std::string &name)

Core::Property *	addProperty (Base::Type t, const std::string &name, const Core::Variant &defaultValue)
	Adds a property to the PropertyContainer. Returns the added property on success, '0' on failure. More...

Core::PropertyUser *	addPropertyUser (const std::string &name, const Core::Variant &value)
	Convenience method for Python bindings. More...

void	removeProperty (Core::Property *p, std::string pName)
	Removes a property from the PropertyContainer and deletes it. More...

void	removeAllProperties ()
	Removes all properties from the PropertyContainer and deletes them. More...

Core::Property *	getPropertyByName (const std::string &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...

Core::Property *	getPropertyByName (const Base::String &name) const
	Returns the property with name 'name'. Returns '0' on failure. More...

virtual const char *	getPropertyName (const Property *prop) const
	get the name of a property More...

template<typename T >
T *	getPropertyByName (const std::string &name) const
	Returns the property of type T with name 'name'. Returns 'nullptr' on failure. More...

void	getPropertyMap (Core::PropertyMap &) const
	Fills a PropertyMap. More...

std::vector< std::pair< Core::Property *, std::string > >	getPropertiesAndNameByType (Base::Type type) const
	Returns all properties of type 'type'. More...

std::vector< Core::Property * >	getPropertiesByType (Base::Type type) const

void	getLinkProperties (std::vector< Core::Property * > &properties1, std::vector< Core::Property * > &properties2, std::vector< Core::Property * > &properties3) const

void	getPropertiesByType (Base::Type type, std::vector< Core::Property * > &props) const

std::vector< Core::Property * >	getPropertiesByTypes (const std::vector< Base::Type > &type) const

bool	setPropertyFromVariant (const std::string &name, const Core::Variant &value)
	Sets a property to value. More...

bool	setProperty (const std::string &name, double value)

bool	setProperty (const std::string &name, int value)

bool	setProperty (const std::string &name, const Geom::Vec &value)

bool	setProperty (const std::string &name, const std::list< Geom::Vec > &value)

bool	setProperty (const std::string &name, const Geom::Trsf &value)

bool	setProperty (const std::string &name, const std::string &value)

bool	setProperty (const std::string &name, const char *value)

bool	setProperty (const std::string &name, const Base::String &value)

bool	setProperty (const std::string &name, const Geom::Pnt &value)

bool	setProperty (const std::string &name, const Geom::Pnt2d &value)

bool	setProperty (const std::string &name, const std::vector< Geom::Pnt > &value)

bool	setProperty (const std::string &name, const std::vector< Geom::Pnt2d > &value)

bool	setProperty (const std::string &name, const MD5 &value)

bool	setProperty (const std::string &name, bool value)

bool	setProperty (const std::string &name, Core::DocObject *value)

bool	setProperty (const std::string &name, const Core::DocObject *value)

bool	setProperty (const std::string &name, const std::unordered_set< Core::DocObject * > &value)

bool	setProperty (const std::string &name, const std::list< Core::DocObject * > &value)

bool	setProperty (const std::string &name, const std::vector< int > &value)

bool	setProperty (const std::string &name, const QFont &value)

bool	setProperty (const std::string &name, const Draw::DrawStyle &value)

bool	setProperty (const std::string &name, const Draw::Arrowheads &value)

bool	setProperty (const std::string &name, const Geom::Dir &value)

bool	setProperty (const std::string &name, const Geom::Dir2d &value)

bool	setProperty (const std::string &name, const Base::Color &value)

bool	setProperty (const std::string &name, const Geom::Ax1 &value)

bool	setProperty (const std::string &name, const Geom::Ax2 &value)

bool	setProperty (const std::string &name, const Draw::Texture2Transform &value)

bool	setProperty (const std::string &name, const std::list< std::list< Geom::Pnt > > &value)

bool	setProperty (const std::string &name, const std::vector< double > &value)

bool	setProperty (const std::string &name, pBrepData &value)

virtual bool	onBeforeChange (Core::Property *p, const Core::Variant &newValue=Core::Variant())

virtual void	onChanged (Core::Property *p)
	Is called after a property in a PropertyContainer has been changed. More...

virtual void	onDeleted ()
	Is called when a PropertyContainer's status is set to MarkedForDelete. More...

virtual void	onNew ()
	Is called when a PropertyContainer's status is set to New. More...

virtual void	onPropertyStatusBitsChanged (const Property &, unsigned long)
	Is called when the Property StatusBits are changed. More...

virtual void	save (Base::AbstractWriter &writer, Base::PersistenceVersion &version)
	Saves the PropertyContainer to writer. More...

virtual void	restore (Base::AbstractXMLReader &reader, Base::PersistenceVersion &version)
	Restores the PropertyContainer from reader in specified version. More...

bool	enableNotify (const bool enable)

bool	isNotifyEnabled (void) const
	Returns whether notification of changes to the field values in the container is propagated to its auditors. More...

void	touch ()
	Sets all properties of this PropertyContainer to updated. More...

bool	isDeleted () const

bool	isStatusDeleted () const
	Returns true if the status is set to 'Deleted'. More...

bool	isMarkedForDelete () const
	Returns true if the status is set to 'MarkedForDelete'. More...

bool	isMarkedForDeleteFinal () const
	Returns true if the status is set to 'MarkedForDeleteFinal'. More...

bool	isDeletedFinal () const
	Returns true if the status is set to 'DeletedFinal'. More...

bool	isNew () const
	Returns true if the status is set to 'New'. More...

bool	isUpdated () const
	Returns true if the status is set to 'Updated'. More...

bool	isValid () const
	Returns true if the status is set to 'Valid'. More...

bool	hasErrors () const
	Returns true if the status is set to 'Error'. More...

void	setData (const std::string &key, void *data)
	Adds arbitrary data for this key to the PropertyContainer (Used in SDK) More...

void *	getData (const std::string &key, bool *ok=nullptr) const
	Returns data for this key from the PropertyContainer (Used in SDK) More...

void	removeData (const std::string &key)
	Removes the data from the PropertyContainer (Used in SDK) More...

bool	hasSameValuesAs (const PropertyContainer *container) const
	Returns 'true' if all values in 'container' match the corresponding property in this PropertyContainer. More...

void	setPropertyValues (const PropertyContainer *other)
	Copies the property values from 'other' PropertyContainer to this PropertyContainer. More...

template<typename T >
T	getPropertyValueByName (const std::string &propertyName, bool *ok=0) const
	Returns the property value T with this name. If ok=true T holds a valid value. More...

virtual void	ensureIntegrity ()

void	integrityMaintained ()

void	integrityLost ()
	Sets _integrity to false. More...

bool	checkIntegrity ()
	Returns the value of _integrity. More...

virtual bool	onChangedDebug (Core::Property *p)
	Is called after a property in a PropertyContainers has been changed, it ignores notify-flag. More...

virtual void	checkAfterOnDeleted ()

Core::PropertyValueMap	getPropertyValueMap () const
	Returns a map with the name of the property and its PropertyValue as a struct of the property type and the Core::Variant value. More...

std::map< std::string, Core::Variant >	getKeyValueMap () const
	Returns all keys and sub keys with their values of this container. More...

bool	setPropertyFromKeyValue (const std::string &propertyName, const std::string &key, const Core::Variant &value)
	Sets the key in a property to value. More...

std::set< Core::Property * >	getUpdatedProperties () const
	Returns all properties that were updated since the last recompute. More...

void	setUpdated ()
	Sets the status to 'Updated' if the old status was 'Valid'. More...

void	setUpdated (const Core::Property *p)

void	setHasErrors ()
	Sets the status to 'Error'. More...

void	setNew ()
	Sets the status to 'New'. More...

void	setValid ()
	Sets the status to 'Valid'. More...

void	setDeleted ()
	Sets the status to 'Delete'. More...

void	setMarkedForDelete ()
	Sets the status to 'MarkedForDelete'. More...

void	setMarkedForDeleteFinal ()
	Sets the status to 'MarkedForDeleteFinal'. More...

void	setDeleteFinal ()
	Sets the status to 'DeleteFinal'. More...

virtual void	breakLinks ()
	Sets all links of this container to null. More...

unsigned int	getPropertyChangeStatus () const

unsigned int	getLastPropertyChangeStatus () const

void	setAllPropertiesValid ()
	Sets the status of all properties to 'Valid'. More...

void	setPropertyValues (const Core::PropertyValueMap &other)
	Copies the property values from a Core::PropertyValueMap to this PropertyContainer. More...

std::vector< Core::Property * >	getPropertiesOrdered () const
	Returns the properties in the init order. More...

virtual bool	check_lx (const char f, const char n)

virtual Core::Property *	addDynamicProperty (const char type, const char name=0, const char group=0, const char doc=0, short attr=0, bool ro=false, bool hidden=false)

DynamicProperty::PropData	getDynamicPropertyData (const Property *prop) const

virtual bool	removeDynamicProperty (const char *name)

virtual std::vector< std::string >	getDynamicPropertyNames () const

virtual Core::Property *	getDynamicPropertyByName (const char *name) const

bool	rollBack ()
	Brings back the PropertyContainer to its last valid status. More...

void	saveLastValidPropertyMap ()
	Saves the last valid property map, p.e. before a recompute to enable a rollback. More...

const Core::PropertyValueMap &	getLastValidPropertyMap () const
	Returns the last valid PropertyValueMap. More...

Public Member Functions inherited from Base::Persistence
virtual void	saveDocFile (Base::AbstractWriter &, const Base::String &, const Base::String &)
	This method is used to save large amounts of data to a binary file. More...

virtual void	restoreDocFile (Base::Reader &, const Base::String &)
	This method is used to restore large amounts of data from a binary file. More...

virtual bool	mustbeSaved () const
	Return 'true' if this object must always be saved in the file. More...

virtual bool	createSQL (Base::AbstractWriter &, Base::PersistenceVersion &, bool)
	This method is used to save properties or very small amounts of data to an XML document. More...

Public Member Functions inherited from Base::BaseClass
virtual Type	getTypeId (void) const

template<typename T >
bool	isDerivedFrom () const

bool	isDerivedFrom (const Type type) const

void *	operator new (size_t size)

void	operator delete (void *p)

BaseClass *	operator-> ()

BaseClass *	operator-> () const

	BaseClass ()=default
	Construction. More...

virtual	~BaseClass ()
	Destruction. More...

Public Member Functions inherited from Base::Subject< Core::DocChanges >
	Subject ()

virtual	~Subject ()

void	attach (Observer< Core::DocChanges > *ToObserv)

void	detach (Observer< Core::DocChanges > *ToObserv)

void	detachAll ()

void	notify_internal (Core::DocChanges &rcReason, size_t deep)

void	notify (Core::DocChanges &rcReason)

Observer< Core::DocChanges > *	get (const char *Name)

void	resetObserverTime ()

std::map< std::string, double >	getObserverTime ()

Public Attributes
Core::PropertyText	name

Core::PropertyText	documentVersion

Core::PropertyText	compatibleInfo

Core::PropertyText	documentGUID

Core::PropertyIndex	documentChanges

Core::PropertyIndex	documentMaxID

Core::PropertyIndex	application_mainversion

Core::PropertyIndex	application_minorversion

Core::PropertyText	documentTypeName

Core::PropertyText	filename

Core::PropertyText	createdBy

Core::PropertyText	creationDate

Core::PropertyText	lastModifiedBy

Core::PropertyText	lastModifiedDate

Core::PropertyText	company

Core::PropertyText	comment

Core::PropertyText	projectNumber

Core::PropertyText	architect

Base::String	fileName

Public Attributes inherited from Core::PropertyContainer
bool	isRestored = false

Public Attributes inherited from Base::BaseClass
long	____deadVal = 0xBADEAFFE

Friends
class	CoreApplication

class	CoreDocument_Factory

class	PropertyGUID

class	DocumentTimeStampSentinel

Signals of the document
boost::signals2::signal< void(Core::DocChanges &)>	signalDocChanges
	Signals DocChanges (To be removed) More...

boost::signals2::signal< void(const Core::DocObject &)>	signalNewObject
	signal on new Object More...

boost::signals2::signal< void(const Core::DocObject &)>	signalDeletedObject
	signal on deleted Object More...

boost::signals2::signal< void(const Core::DocObject &, const Core::Property &)>	signalBeforeChangeObject
	signal on visibility changed Object More...

boost::signals2::signal< void(const Core::DocObject &, const Core::Property &)>	signalChangedObject
	signal on changed Object More...

boost::signals2::signal< void()>	signalBeforeRecompute
	Signals before recompute. More...

boost::signals2::signal< void(const std::vector< Core::DocObject * > &, const std::vector< Core::DocObject * > &, const std::vector< Core::DocObject * > &)>	signalRecomputed
	Signals NewObjects, UpdatedObjects, DeletedObjects being recomputed. More...

boost::signals2::signal< void()>	signalRecomputeError
	Signals a recompute error. More...

boost::signals2::signal< void(const std::map< Core::DocObject *, std::vector< std::string >> &)>	signalRecomputedErrorObjects
	Signals recomputed error DocObjects. More...

boost::signals2::signal< void(const std::vector< Core::LinkError > &)>	signalDefectLinks
	Signals defect links from object1 to object2. More...

boost::signals2::signal< void()>	signalNewFile
	Signals new file. More...

DocumentState	_state

ObjectMap	_all_objects_map

ObjectVector	_all_objects_vector

ObjectTypeMap	_immutableObjectsMap

ObjectTypeMap	_typeObjects

RelGraph *	_relGraph

RelGraph *	_relGraphBackLink

std::set< Core::DocObject * >	_references

std::map< Base::GlobalId, Core::DocObject * >	_guid_map

std::map< long, Core::DocObject * >	_ifcId_map

bool	_hasErrorObjectsInRecompute = false

bool	_needRestoreBeforeRecompute = false

size_t	_recomputeCnt = 0

bool	mSolvingEnabled = true

template<typename T >
T *	createObject ()

template<typename T >
T *	addImmutableObject (const Core::PropertyBundle< T > *po)

template<typename T >
T *	addImmutableObject_NoCheck (Core::PropertyBundle< T > *po)

template<typename T >
std::vector< T * >	getObjectsByType () const
	Return all object of given type and all derived classes. More...

template<typename T >
void	getObjectsByType (std::vector< T * > &objs) const
	Returns all objects of type 'T'. More...

void	getObjectsFromTypeMap (Base::Type t, std::vector< Core::DocObject * > &ret) const
	Returns all objects of type 'T'. More...

const ObjectTypeMap &	getTypeMap () const

void	addPropertyLinkError (const std::string &from, const std::string &to)

const DocumentState &	getDocumentState () const

bool	checkObjectLinks (const std::vector< const Core::DocObject * > &objvec, std::vector< Core::LinkError > *errors=nullptr)
	Checks the document for errors. Returns false if there is an error. More...

bool	checkObjectLinks (const std::vector< const Core::DocObject * > &objvec, const std::vector< const Core::DocObject * > &objToCheck, std::vector< Core::LinkError > *errors=nullptr)

bool	checkDeletedObjectLinks (const std::vector< const Core::DocObject * > &objToCheck, std::vector< Core::LinkError > *errors)

bool	checkObjectLinks (std::vector< Core::LinkError > *errors)

bool	checkDeletedObjectLinks (const std::vector< const Core::DocObject * > &objvec, const std::vector< const Core::DocObject * > &objToCheck, std::vector< Core::LinkError > *errors)

virtual std::vector< const Core::DocObject * >	getInner (const Core::DocObject me, std::function< bool(const Core::DocObject )> *allowToAddObject=0)
	Get ALL Links to me, also indirect. More...

virtual std::vector< const Core::DocObject * >	getOuter (const Core::DocObject *me)
	Get ALL Links from me, also indirect. More...

Core::Link	getAllLinksByProperties (const Core::DocObject *source) const

std::vector< const Core::DocObject * >	getLinksByProperties (const Core::DocObject *o) const

std::vector< PropertyLinkDesc >	getLinkDescByProperties (const Core::DocObject *o) const

std::vector< const Core::DocObject * >	getBackLinksByProperties (const Core::DocObject *source) const

void	removeLinkInProperties (const Core::DocObject source, Core::DocObject link)

void	removeBackLinkInProperties (const Core::DocObject source, Core::DocObject link)

std::string	dumpGraph (void)
	Returns a string representation of the graph. More...

virtual std::vector< std::string >	check_graph ()

virtual std::vector< const Core::DocObject * >	getLinksToMe (const Core::DocObject *o)
	Returns all objects that directly linked to 'o'. More...

virtual std::vector< const Core::DocObject * >	getBackLinksToMe (const Core::DocObject *o)
	Returns all objects that directly linked to 'o'. More...

virtual std::vector< const Core::DocObject * >	getLinksFromMe (const Core::DocObject *o)
	Returns all objects 'o' directly linked from 'o'. More...

virtual std::vector< const Core::DocObject * >	getBackLinksFromMe (const Core::DocObject *o)
	Returns all objects 'o' directly linked from 'o'. More...

virtual bool	maybeSave ()
	Can be overwritten to check if the undo stack is clean etc. More...

std::vector< Core::DocObject * >	getObjectsToSave ()
	Returns all objects that will be saved in document. Basically interface for build_savemap(). More...

bool	saveFile (bool toExport=false, bool saveBackupCopy=false)
	Saves the file. More...

bool	saveAsFile (const Base::String &filename=Base::String(), bool toExport=false, bool saveBackupCopy=false, const Base::String &initialDir=Base::String())
	Saves a new file under this name. More...

bool	saveCopy (const Base::String &filename)
	Saves a copy of the current document, no notify, only store the doc under this name. More...

bool	saveAsFileVersion (int aMajorVersion, int aMinorVersion, const Base::String &filename=Base::String(), bool toExport=false, bool saveBackupCopy=false, const Base::String &initialDir=Base::String(), bool dontRename=false)
	Saves a new file under this name. More...

void	setOnSaveChangeToDefaultUser (bool onoff)
	If true: Change to default user on next change. Usually from IFC User to Lexocad User. More...

bool	getOnSaveChangeToDefaultUser () const
	Return whether the user get changed to default user on next save. More...

bool	askAndSetNewFilename (QString &newFilename, const Base::String &initialDir=Base::String())
	Ask user for filename (if not already passed in as newFilename) and set it to document. Returns false if user cancelled the save. More...

void	setSaveBlocksUntilFinished (bool onoff)
	If true, saving will block until the whole save is finished and file is ready. More...

bool	getSaveBlocksUntilFinished () const
	Returns whether saving will block until the whole save is finished and file is ready. More...

virtual void	addInventorDirectory (const Base::String &)
	Inventor search directories - needs to be stored for IV/Z export, but SoInput is not OK... More...

virtual void	createGroundPlate_deprecated ()
	To overwrite. Deprecated, do not use. More...

void	setGuidPolicy (const Base::GlobalId_Policy &policy)
	Sets the default GUID policy. This determines what should be done if identical GUIDs are imported. More...

void	setGuidPolicy (const Base::String &suffix, const Base::GlobalId_Policy &policy)
	Sets the GUID policy for a file suffix. This determines what should be done if identical GUIDs are imported from files with this suffix. More...

Base::GlobalId_Policy	getGuidPolicy () const
	Returns the default GUID policy. More...

bool	getGuidPolicy (const Base::String &suffix, Base::GlobalId_Policy &policy) const
	Returns the GUID policy for a file suffix. More...

void	addReferenceFrom (Core::DocObject *from)

void	removeReferenceFrom (Core::DocObject *from)

bool	hasReferencesFrom (Core::DocObject *from) const

const std::set< Core::DocObject * > &	getReferences () const

void	setFullFileName (const Base::String &fullfilename)
	Sets the full file name including the path. More...

virtual const char *	subject_name (void)

virtual bool	restoreGlobalAttachment (Base::GlobalAttachment gAtta, std::istream , uint64_t streamsize, const Base::String &entryName)

bool	addFileToZip (const Base::String &entryName, const Base::String &path)

bool	restoreFileFromZip (const Base::String &entryName, const Base::String &targetpath, bool binaryMode)

void	forceBackupOnNextSave ()
	Modifies the _lastBackupFileTime to force backup when the document is saved next time. More...

bool	hasErrorObjectsInRecompute ()
	get result of last recompute More...

void	resetHasErrorObjectsInRecompute ()
	reset result of last recompute(); More...

size_t	getRecomputeCount () const
	get count of recomputes() More...

virtual void	setChanged (bool changed)

bool	getImmutableObjects (Base::Type t, ObjectSet &set) const

virtual Core::DocObject *	addImmutableObjectMaterial (Core::PropertyContainer *pc)

void	setImportedIFCFile (QString a)

QString	getImportedIFCFile ()

void	test_graph ()

void	onAddLink (PropertyLinkBaseBase p, Core::DocObject from, Core::DocObject *o)

void	onRemoveLink (PropertyLinkBaseBase p, Core::DocObject from, Core::DocObject *o)

void	onAddLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::list< Core::DocObject * > &linkList)

void	onRemoveLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::list< Core::DocObject * > &linkList)

void	onAddLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::unordered_set< Core::DocObject * > &linkSet)

void	onRemoveLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::unordered_set< Core::DocObject * > &linkSet)

void	onAddBackLink (PropertyLinkBaseBase p, Core::DocObject from, Core::DocObject *o)

void	onRemoveBackLink (PropertyLinkBaseBase p, Core::DocObject from, Core::DocObject *o)

void	onAddBackLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::list< Core::DocObject * > &linkList)

void	onRemoveBackLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::list< Core::DocObject * > &linkList)

void	onAddBackLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::unordered_set< Core::DocObject * > &linkSet)

void	onRemoveBackLinks (PropertyLinkBaseBase p, Core::DocObject from, const std::unordered_set< Core::DocObject * > &linkSet)

Core::DocObject::IdType	getUniqueObjectIdFromInteger (size_t input) const

void	breakLinks (Core::DocObject *from)

Core::Link	getInLinks (Core::DocObject *docObj)

Core::Link	getInBackLinks (Core::DocObject *docObj)

Core::Link	getOutLinks (Core::DocObject *docObj)

Core::Link	getOutBackLinks (Core::DocObject *docObj)

bool	checkRelGraph ()

bool	replaceLink (Core::DocObject old, Core::DocObject newLink)

static void	getDefaultVersionToSave (int &aMajorVersion, int &aMinorVersion)
	Returns application's mainversion to be saved in the document. More...

static void	getPreviousVersionToSave (int &aMajorVersion, int &aMinorVersion)
	Returns application's mainversion to be saved in the document saved as PREVIOUS version. More...

static QString	getPreviousVersionToSaveStr ()
	Returns application's version as string to be displayed in the menu for action Save as PREVIOUS version. More...

static std::pair< int, int >	getAppVersionFromDocument (Base::String filename)

	CoreDocument ()

	CoreDocument (const CoreDocument &rhs)

virtual	~CoreDocument ()

virtual void	deleteObject (Core::DocObject *o)
	Physically deletes an object without informing the object maps. More...

Core::DocObject::IdType	getUniqueObjectId () const
	Returns the next available unique id. More...

virtual void	addToDocumentMaps (Core::DocObject *o)
	Adds the object to all relevant maps. More...

Core::DocObject *	getImmutableObjectWithSameValues (Base::Type t, const Core::PropertyContainer *pc) const
	Returns the object that has the same values as 'pc'. Returns '0' if there is no such object. More...

virtual Core::DocObject *	restoreObject (const std::string &typeName, const std::string &typeHierarchy, const std::string &id)
	Tries to restore an object from a given type name. More...

void	restoreProperty (Core::Property *property, const Base::String &name, Base::AbstractXMLReader &reader, Base::PersistenceVersion &version) override
	Restores property from from reader in specified version. More...

virtual void	saveDocument (std::shared_ptr< Base::AbstractWriter > writer, int versionMajor2save, int versionMinor2save, bool showProgress)
	Saves the document. More...

virtual int	restoreDocument (Base::XMLReader &reader, Core::Attachments &attachments)
	Restores the document. Returns the doc version of the restored document. More...

virtual std::vector< Core::DocObject * >	build_savemap (std::vector< std::string > &delete_log)
	Build a map of the objects that get saved. Objects that are marked for delete get removed. More...

virtual void	addNewObjectsToGraph ()
	Adds objects with status 'New' to the graph. More...

void	resolveLinkInDocument (Core::PropertyLinkBase *link)
	After opening a document this method restores the links declared in the document header. More...

virtual bool	renameTypeFromOlderVersions (int, Base::String &)

virtual void	checkBeforeObjectRestoring (int, int)
	Is called before restoring objects of a document. More...

virtual void	checkAndConfigureOpenedDocument ()
	Is called when opening a document. Can be overwritten to do some custom check routines. More...

virtual void	checkAndConfigureOpenedDocumentAfterRecompute (int, int)
	Is called when opening a document after recompute. Can be overwritten to do some custom check routines. More...

virtual bool	convertFromOlderVersions (int docVersion, int appVersion)

virtual bool	getPatchedUserTypes (const Base::String &filename, std::map< QString, QString > &id2TypeMap)

virtual void	cleanUndoStack ()
	Cleans the undo stack. Must be overwritten. More...

virtual void	storeDirectory (const QString &, Base::AbstractWriter &)
	Stores directory at given path to zip stream. More...

virtual void	restoreDirectory (const QString &)
	Restores directory to temp. More...

virtual void	initDocument (bool)
	Initialize document.. Can be overwritten to do some custom initialization. More...

const ObjectMap &	getObjectMap () const
	Returns the object map. More...

void	createTempDirectory ()
	Creates the temporary directory. More...

void	cleanTempDirectory ()
	Cleans the temporary directory. More...

bool	maybe_add_GUID (const Base::GlobalId &guid, Core::DocObject *o)
	Adds a guid to the map IF this id is not in use yet. More...

void	add_GUID (const Base::GlobalId &guid, Core::DocObject *o)
	Adds a guid without checking. More...

void	remove_GUID (const Base::GlobalId &guid, Core::DocObject *o)
	Removes a guid without checking. More...

void	waitForSaveIsFinished ()
	Saving runs in Threads, wait for finish. More...

bool	isCatalogFile () const
	Returns true if this document's file is part of catalog. More...

bool	createBackupFile (const Base::String &path, bool savePath)

bool	createBackupFileAfterOpeningDoc (const Base::String &path, bool savePath)

void	__setEnableTimeStamps__ (bool aOnOff)

bool	__getEnableTimeStamps__ () const

void	_checkTransaction (Core::DocObject pcDelObj, const Property What, int line)
	checks if a valid transaction is open More...

int	_openTransaction (const char *name=0, int id=0)

void	_commitTransaction (bool notify=false)
	Internally called by App::Application to commit the Command transaction. More...

void	_abortTransaction ()
	Internally called by App::Application to abort the running transaction. More...

void	_clearRedos ()

Additional Inherited Members
Static Public Member Functions inherited from Base::Persistence
static std::string	encodeAttribute (const std::string &)

Static Public Member Functions inherited from Base::BaseClass
static Type	getClassTypeId (void)

static void	init (void)

static void *	create (void)

static void	setIfcNameAndID (const std::string &n, int id)

Protected Types inherited from Core::PropertyContainer
enum	Status { Status::New = 1, Status::Updated = 2, Status::Valid = 3, Status::MarkedForDelete = 4, Status::MarkedForDeleteFinal, Status::Deleted, Status::DeletedFinal, Status::Error }

Protected Types inherited from Base::Subject< Core::DocChanges >
typedef std::set< ObserverHolder, CompareObservers >	ObserverSetType

Protected Member Functions inherited from Core::PropertyContainer
virtual void	onBeforeChangeProperty (const Property *)

virtual void	onChangedProperty (const Property *)

void	addPropertiesFrom (const Core::PropertyContainer *other)
	Adds copy of all properties from other to this PropertyContainer. More...

virtual void	setStatus (Status status)

Status	getStatus () const

bool	checkForAlreadyExistingProperty (Core::Property *property)

void	addChangedProperties (unsigned int propertiesflags)

Static Protected Member Functions inherited from Base::BaseClass
static void	initSubclass (Base::Type &toInit, const char ClassName, const char ParentName, Type::instantiationMethod method=0)

static void	initIfcTypes (const std::string &s, Base::Type classTypeId, int id)

Protected Attributes inherited from Base::Subject< Core::DocChanges >
ObserverSetType	_ObserverSet

ObserverSetType	_ObserverSet_AddedLater
	Set of attached observers. More...

ObserverSetType	_ObserverSet_AddedLaterCopy
	Set of attached observers at running notify. More...

bool	_running_notify

bool	_allDetachedWhileRunningNotify

std::list< Core::DocChanges >	_messages_WhileRunningNotify

std::map< std::string, double >	_observerTime

Member Enumeration Documentation

◆ Status

enum Core::CoreDocument::Status

Enumerator
SkipRecompute
KeepTrailingDigits
Closable
Restoring
Recomputing
PartialRestore
Importing
PartialDoc
AllowPartialRecompute
TempDoc
RestoreError

Constructor & Destructor Documentation

◆ CoreDocument() [1/2]

Core::CoreDocument::CoreDocument ( )

protected

◆ CoreDocument() [2/2]

Core::CoreDocument::CoreDocument ( const CoreDocument & rhs )

protected

◆ ~CoreDocument()

virtual Core::CoreDocument::~CoreDocument ( )

protectedvirtual

Member Function Documentation

◆ getEnableTimeStamps()

bool Core::CoreDocument::__getEnableTimeStamps__ ( ) const

protected

◆ setEnableTimeStamps()

void Core::CoreDocument::__setEnableTimeStamps__ ( bool aOnOff )

protected

◆ _abortTransaction()

void Core::CoreDocument::_abortTransaction ( )

protected

Internally called by App::Application to abort the running transaction.

◆ _checkTransaction()

void Core::CoreDocument::_checkTransaction	(	Core::DocObject *	pcDelObj,
		const Property *	What,
		int	line
	)

protected

checks if a valid transaction is open

◆ _clearRedos()

void Core::CoreDocument::_clearRedos ( )

protected

◆ _commitTransaction()

void Core::CoreDocument::_commitTransaction ( bool notify = false )

protected

Internally called by App::Application to commit the Command transaction.

◆ _openTransaction()

int Core::CoreDocument::_openTransaction	(	const char *	name = `0`,
		int	id = `0`
	)

protected

Open a new command Undo/Redo, an UTF-8 name can be specified

Parameters

name	transaction name
id	transaction ID, if 0 then the ID is auto generated.

Returns: : Return the ID of the new transaction.

This function creates an actual transaction regardless of Application AutoTransaction setting.

◆ abortTransaction()

void Core::CoreDocument::abortTransaction ( )

Abort the actually running transaction.

◆ add_GUID()

void Core::CoreDocument::add_GUID	(	const Base::GlobalId &	guid,
		Core::DocObject *	o
	)

protected

Adds a guid without checking.

◆ addFileToZip()

bool Core::CoreDocument::addFileToZip	(	const Base::String &	entryName,
		const Base::String &	path
	)

◆ addImmutableObject()

template<typename T >

T* Core::CoreDocument::addImmutableObject ( const Core::PropertyBundle< T > * po )

inline

Adds an immutable object to the document using templates. The Core::PropertyBundle is taken to compare the values with all existing immutable objects.

◆ addImmutableObject_NoCheck()

template<typename T >

T* Core::CoreDocument::addImmutableObject_NoCheck ( Core::PropertyBundle< T > * po )

inline

Adds an immutable object to the document using templates. The Core::PropertyBundle is taken to compare the values with all existing immutable objects.

◆ addImmutableObjectMaterial()

virtual Core::DocObject* Core::CoreDocument::addImmutableObjectMaterial ( Core::PropertyContainer * pc )

virtual

◆ addInventorDirectory()

virtual void Core::CoreDocument::addInventorDirectory ( const Base::String & )

inlinevirtual

Inventor search directories - needs to be stored for IV/Z export, but SoInput is not OK...

◆ addNewObjectsToGraph()

virtual void Core::CoreDocument::addNewObjectsToGraph ( )

protectedvirtual

Adds objects with status 'New' to the graph.

◆ addObject()

bool Core::CoreDocument::addObject ( Core::DocObject * e )

Adds an existing object to the document.

◆ addPropertyLinkError()

void Core::CoreDocument::addPropertyLinkError	(	const std::string &	from,
		const std::string &	to
	)

◆ addReferenceFrom()

void Core::CoreDocument::addReferenceFrom ( Core::DocObject * from )

◆ addToDocumentMaps()

virtual void Core::CoreDocument::addToDocumentMaps ( Core::DocObject * o )

protectedvirtual

Adds the object to all relevant maps.

◆ askAndSetNewFilename()

bool Core::CoreDocument::askAndSetNewFilename	(	QString &	newFilename,
		const Base::String &	initialDir = `Base::String()`
	)

Ask user for filename (if not already passed in as newFilename) and set it to document. Returns false if user cancelled the save.

◆ breakLinks()

void Core::CoreDocument::breakLinks ( Core::DocObject * from )

◆ build_savemap()

virtual std::vector<Core::DocObject*> Core::CoreDocument::build_savemap ( std::vector< std::string > & delete_log )

protectedvirtual

Build a map of the objects that get saved. Objects that are marked for delete get removed.

◆ check_graph()

virtual std::vector<std::string> Core::CoreDocument::check_graph ( )

virtual

◆ checkAndConfigureOpenedDocument()

virtual void Core::CoreDocument::checkAndConfigureOpenedDocument ( )

inlineprotectedvirtual

Is called when opening a document. Can be overwritten to do some custom check routines.

◆ checkAndConfigureOpenedDocumentAfterRecompute()

virtual void Core::CoreDocument::checkAndConfigureOpenedDocumentAfterRecompute	(	int	,
		int
	)

inlineprotectedvirtual

Is called when opening a document after recompute. Can be overwritten to do some custom check routines.

◆ checkBeforeObjectRestoring()

virtual void Core::CoreDocument::checkBeforeObjectRestoring	(	int	,
		int
	)

inlineprotectedvirtual

Is called before restoring objects of a document.

◆ checkDeletedObjectLinks() [1/2]

bool Core::CoreDocument::checkDeletedObjectLinks	(	const std::vector< const Core::DocObject * > &	objToCheck,
		std::vector< Core::LinkError > *	errors
	)

◆ checkDeletedObjectLinks() [2/2]

bool Core::CoreDocument::checkDeletedObjectLinks	(	const std::vector< const Core::DocObject * > &	objvec,
		const std::vector< const Core::DocObject * > &	objToCheck,
		std::vector< Core::LinkError > *	errors
	)

◆ checkObjectLinks() [1/3]

bool Core::CoreDocument::checkObjectLinks	(	const std::vector< const Core::DocObject * > &	objvec,
		const std::vector< const Core::DocObject * > &	objToCheck,
		std::vector< Core::LinkError > *	errors = `nullptr`
	)

◆ checkObjectLinks() [2/3]

bool Core::CoreDocument::checkObjectLinks	(	const std::vector< const Core::DocObject * > &	objvec,
		std::vector< Core::LinkError > *	errors = `nullptr`
	)

Checks the document for errors. Returns false if there is an error.

◆ checkObjectLinks() [3/3]

bool Core::CoreDocument::checkObjectLinks ( std::vector< Core::LinkError > * errors )

◆ checkRelGraph()

bool Core::CoreDocument::checkRelGraph ( )

◆ cleanTempDirectory()

void Core::CoreDocument::cleanTempDirectory ( )

protected

Cleans the temporary directory.

◆ cleanUndoStack()

virtual void Core::CoreDocument::cleanUndoStack ( )

inlineprotectedvirtual

Cleans the undo stack. Must be overwritten.

◆ clearCopyType()

void Core::CoreDocument::clearCopyType ( )

Sets the copy type to Base::Type::badType(), next copied object will be copied as its own type.

◆ clearUndos()

void Core::CoreDocument::clearUndos ( )

Remove all stored Undos and Redos.

◆ commitTransaction()

void Core::CoreDocument::commitTransaction ( )

Commit the Command transaction. Do nothing If there is no Command transaction open.

◆ convertFromOlderVersions()

virtual bool Core::CoreDocument::convertFromOlderVersions	(	int	docVersion,
		int	appVersion
	)

protectedvirtual

Converts document from older version. Is called when a document with an older version number is opened. Returns true if successful, false if failed to convert.

◆ copyObject() [1/2]

Core::DocObject* Core::CoreDocument::copyObject ( Core::DocObject * o )

◆ copyObject() [2/2]

Core::DocObject* Core::CoreDocument::copyObject	(	Core::DocObject *	o,
		DocObjectMap &	copyMap
	)

Creates a copy of 'o' and adds it to the document, provides map of pairs original-copy to see which object is a copy of another one.

◆ copyObjectShallow()

template<typename Type >

Type Core::CoreDocument::copyObjectShallow ( Type o )

inline

Creates a copy of 'o' and adds it to the document. Performs shallow copy.

◆ copySharedObject()

Core::DocObject* Core::CoreDocument::copySharedObject	(	Core::DocObject *	o,
		DocObjectMap &	copyMap
	)

Copy shared object. This is violating of the share, but in some cases this is useful. Use wisely!!

◆ copyToDifferentType()

Core::DocObject* Core::CoreDocument::copyToDifferentType	(	Core::DocObject *	o,
		Base::Type	typeToCreate,
		DocObjectMap &	copyMap
	)

Creates an object of type 'typeToCreate' and copy properties from 'o' to it. Provides map of pairs original-copy.

◆ createBackupFile()

bool Core::CoreDocument::createBackupFile	(	const Base::String &	path,
		bool	savePath
	)

protected

◆ createBackupFileAfterOpeningDoc()

bool Core::CoreDocument::createBackupFileAfterOpeningDoc	(	const Base::String &	path,
		bool	savePath
	)

protected

◆ createGroundPlate_deprecated()

virtual void Core::CoreDocument::createGroundPlate_deprecated ( )

inlinevirtual

To overwrite. Deprecated, do not use.

◆ createObject()

template<typename T >

T* Core::CoreDocument::createObject ( )

inline

Creates and adds a new object to the document using templates. If a Core::PropertyBundle is given the object is initialized with these properties.

◆ createObjectFromType()

Core::DocObject* Core::CoreDocument::createObjectFromType ( Base::Type type )

Creates an object from type and adds it to the document.

◆ createObjectFromTypeName()

Core::DocObject* Core::CoreDocument::createObjectFromTypeName ( const char * typeName )

Creates an object from type name and adds it to the document.

◆ createTempDirectory()

void Core::CoreDocument::createTempDirectory ( )

protected

Creates the temporary directory.

◆ deleteObject()

virtual void Core::CoreDocument::deleteObject ( Core::DocObject * o )

protectedvirtual

Physically deletes an object without informing the object maps.

◆ dumpGraph()

std::string Core::CoreDocument::dumpGraph ( void )

Returns a string representation of the graph.

◆ emitAndNotify()

virtual void Core::CoreDocument::emitAndNotify ( Core::DocChanges & aDocChanges )

virtual

◆ forceBackupOnNextSave()

void Core::CoreDocument::forceBackupOnNextSave ( )

Modifies the _lastBackupFileTime to force backup when the document is saved next time.

◆ getAllLinksByProperties()

Core::Link Core::CoreDocument::getAllLinksByProperties ( const Core::DocObject * source ) const

◆ getAppVersionFromDocument()

static std::pair<int,int> Core::CoreDocument::getAppVersionFromDocument ( Base::String filename )

static

◆ getAvailableRedoNames()

std::vector<std::string> Core::CoreDocument::getAvailableRedoNames ( ) const

Returns a list of the Redo names.

◆ getAvailableRedos()

int Core::CoreDocument::getAvailableRedos ( int id = 0 ) const

Returns the number of stored Redos. If greater than 0 Redo will be effective.

◆ getAvailableUndoNames()

std::vector<std::string> Core::CoreDocument::getAvailableUndoNames ( ) const

Returns a list of the Undo names.

◆ getAvailableUndos()

int Core::CoreDocument::getAvailableUndos ( int id = 0 ) const

Returns the number of stored Undos. If greater than 0 Undo will be effective.

◆ getBackLinksByProperties()

std::vector<const Core::DocObject*> Core::CoreDocument::getBackLinksByProperties ( const Core::DocObject * source ) const

◆ getBackLinksFromMe()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getBackLinksFromMe ( const Core::DocObject * o )

virtual

Returns all objects 'o' directly linked from 'o'.

◆ getBackLinksToMe()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getBackLinksToMe ( const Core::DocObject * o )

virtual

Returns all objects that directly linked to 'o'.

◆ getCopyType()

Base::Type Core::CoreDocument::getCopyType ( ) const

Return type of which new copied element should be created. setCopyType is intentionally not available because it is decided in copy methods.

◆ getDefaultVersionToSave()

static void Core::CoreDocument::getDefaultVersionToSave	(	int &	aMajorVersion,
		int &	aMinorVersion
	)

static

Returns application's mainversion to be saved in the document.

◆ getDocumentState()

const DocumentState& Core::CoreDocument::getDocumentState ( ) const

◆ getDocumentVersion()

int Core::CoreDocument::getDocumentVersion ( ) const

Returns the version of the document.

◆ getDocXMLAsString()

std::string Core::CoreDocument::getDocXMLAsString ( )

◆ getGuidPolicy() [1/2]

Base::GlobalId_Policy Core::CoreDocument::getGuidPolicy ( ) const

Returns the default GUID policy.

◆ getGuidPolicy() [2/2]

bool Core::CoreDocument::getGuidPolicy	(	const Base::String &	suffix,
		Base::GlobalId_Policy &	policy
	)		const

Returns the GUID policy for a file suffix.

◆ getImmutableObjects()

bool Core::CoreDocument::getImmutableObjects	(	Base::Type	t,
		ObjectSet &	set
	)		const

◆ getImmutableObjectWithSameValues()

Core::DocObject* Core::CoreDocument::getImmutableObjectWithSameValues	(	Base::Type	t,
		const Core::PropertyContainer *	pc
	)		const

protected

Returns the object that has the same values as 'pc'. Returns '0' if there is no such object.

◆ getImportedIFCFile()

QString Core::CoreDocument::getImportedIFCFile ( )

◆ getInBackLinks()

Core::Link Core::CoreDocument::getInBackLinks ( Core::DocObject * docObj )

◆ getInLinks()

Core::Link Core::CoreDocument::getInLinks ( Core::DocObject * docObj )

◆ getInner()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getInner	(	const Core::DocObject *	me,
		std::function< bool(const Core::DocObject )>	allowToAddObject = `0`
	)

virtual

Get ALL Links to me, also indirect.

◆ getLinkDescByProperties()

std::vector<PropertyLinkDesc> Core::CoreDocument::getLinkDescByProperties ( const Core::DocObject * o ) const

◆ getLinksByProperties()

std::vector<const Core::DocObject*> Core::CoreDocument::getLinksByProperties ( const Core::DocObject * o ) const

◆ getLinksFromMe()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getLinksFromMe ( const Core::DocObject * o )

virtual

Returns all objects 'o' directly linked from 'o'.

◆ getLinksToMe()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getLinksToMe ( const Core::DocObject * o )

virtual

Returns all objects that directly linked to 'o'.

◆ getMaxUndoStackSize()

unsigned int Core::CoreDocument::getMaxUndoStackSize ( void ) const

Set the Undo limit as stack size.

◆ getObjectByGlobalId()

Core::DocObject* Core::CoreDocument::getObjectByGlobalId ( const Base::GlobalId & guid ) const

Returns the DocObject with this GUID.

◆ getObjectById()

virtual Core::DocObject* Core::CoreDocument::getObjectById ( const DocObject::IdType & id ) const

virtual

Returns the object with this id.

◆ getObjectByUserName()

Core::DocObject* Core::CoreDocument::getObjectByUserName ( const Base::String & s ) const

Returns the object with this userName.

◆ getObjectMap()

const ObjectMap& Core::CoreDocument::getObjectMap ( ) const

protected

Returns the object map.

◆ getObjects()

std::vector<Core::DocObject*> Core::CoreDocument::getObjects ( bool includeDeletedObjects = false ) const

Returns all objects in the document.

◆ getObjectsByType() [1/2]

template<typename T >

std::vector<T*> Core::CoreDocument::getObjectsByType ( ) const

inline

Return all object of given type and all derived classes.

◆ getObjectsByType() [2/2]

template<typename T >

void Core::CoreDocument::getObjectsByType ( std::vector< T * > & objs ) const

inline

Returns all objects of type 'T'.

◆ getObjectsByTypeName()

std::vector<Core::DocObject*> Core::CoreDocument::getObjectsByTypeName ( const std::string & typeName ) const

Returns all objects of typeName.

◆ getObjectsConst()

std::vector<const Core::DocObject*> Core::CoreDocument::getObjectsConst ( bool includeDeletedObjects = false ) const

◆ getObjectsFromTypeMap()

void Core::CoreDocument::getObjectsFromTypeMap	(	Base::Type	t,
		std::vector< Core::DocObject * > &	ret
	)		const

Returns all objects of type 'T'.

◆ getObjectsSorted()

virtual std::vector<Core::DocObject*> Core::CoreDocument::getObjectsSorted ( ) const

virtual

Returns all objects topologically sorted.

◆ getObjectsToSave()

std::vector<Core::DocObject*> Core::CoreDocument::getObjectsToSave ( )

Returns all objects that will be saved in document. Basically interface for build_savemap().

◆ getOnSaveChangeToDefaultUser()

bool Core::CoreDocument::getOnSaveChangeToDefaultUser ( ) const

Return whether the user get changed to default user on next save.

◆ getOutBackLinks()

Core::Link Core::CoreDocument::getOutBackLinks ( Core::DocObject * docObj )

◆ getOuter()

virtual std::vector<const Core::DocObject*> Core::CoreDocument::getOuter ( const Core::DocObject * me )

virtual

Get ALL Links from me, also indirect.

◆ getOutLinks()

Core::Link Core::CoreDocument::getOutLinks ( Core::DocObject * docObj )

◆ getPatchedUserTypes()

virtual bool Core::CoreDocument::getPatchedUserTypes	(	const Base::String &	filename,
		std::map< QString, QString > &	id2TypeMap
	)

protectedvirtual

◆ getPendingTransactionName()

const char* Core::CoreDocument::getPendingTransactionName ( ) const

Returns pending transaction name. Returns nullptr if there is no pending transaction.

◆ getPreviousVersionToSave()

static void Core::CoreDocument::getPreviousVersionToSave	(	int &	aMajorVersion,
		int &	aMinorVersion
	)

static

Returns application's mainversion to be saved in the document saved as PREVIOUS version.

◆ getPreviousVersionToSaveStr()

static QString Core::CoreDocument::getPreviousVersionToSaveStr ( )

static

Returns application's version as string to be displayed in the menu for action Save as PREVIOUS version.

◆ getRecomputeCount()

size_t Core::CoreDocument::getRecomputeCount ( ) const

get count of recomputes()

◆ getReferences()

const std::set<Core::DocObject*>& Core::CoreDocument::getReferences ( ) const

◆ getSaveBlocksUntilFinished()

bool Core::CoreDocument::getSaveBlocksUntilFinished ( ) const

Returns whether saving will block until the whole save is finished and file is ready.

◆ getTmpDirectory()

Base::String Core::CoreDocument::getTmpDirectory ( )

Returns the temporary directory.

◆ getTransactionID()

int Core::CoreDocument::getTransactionID	(	bool	undo,
		unsigned	pos = `0`
	)		const

Return the undo/redo transaction ID starting from the back.

◆ getTypeMap()

const ObjectTypeMap& Core::CoreDocument::getTypeMap ( ) const

◆ getUndoMode()

int Core::CoreDocument::getUndoMode ( void ) const

switch the level of Undo/Redo

◆ getUniqueObjectId()

Core::DocObject::IdType Core::CoreDocument::getUniqueObjectId ( ) const

protected

Returns the next available unique id.

◆ getUniqueObjectIdFromInteger()

Core::DocObject::IdType Core::CoreDocument::getUniqueObjectIdFromInteger ( size_t input ) const

◆ hasErrorObjectsInRecompute()

bool Core::CoreDocument::hasErrorObjectsInRecompute ( )

get result of last recompute

◆ hasPendingTransaction()

bool Core::CoreDocument::hasPendingTransaction ( ) const

Check if a transaction is open.

◆ hasReferencesFrom()

bool Core::CoreDocument::hasReferencesFrom ( Core::DocObject * from ) const

◆ initDocument()

virtual void Core::CoreDocument::initDocument ( bool )

inlineprotectedvirtual

Initialize document.. Can be overwritten to do some custom initialization.

◆ isActive()

bool Core::CoreDocument::isActive ( ) const

Returns 'true' if the Document is the active Document. Otherwise returns 'false'.

◆ isCatalogFile()

bool Core::CoreDocument::isCatalogFile ( ) const

protected

Returns true if this document's file is part of catalog.

◆ isChanged()

virtual bool Core::CoreDocument::isChanged ( )

virtual

Returns 'true' if the document is changed.

◆ isPerformingTransaction()

bool Core::CoreDocument::isPerformingTransaction ( ) const

returns true if the document is in an Transaction phase, e.g. currently performing a redo/undo or rollback

◆ isTransactionEmpty()

bool Core::CoreDocument::isTransactionEmpty ( ) const

Check if a transaction is open and its list is empty. If no transaction is open true is returned.

◆ maybe_add_GUID()

bool Core::CoreDocument::maybe_add_GUID	(	const Base::GlobalId &	guid,
		Core::DocObject *	o
	)

protected

Adds a guid to the map IF this id is not in use yet.

◆ maybeSave()

virtual bool Core::CoreDocument::maybeSave ( )

inlinevirtual

Can be overwritten to check if the undo stack is clean etc.

◆ onAddBackLink()

void Core::CoreDocument::onAddBackLink	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		Core::DocObject *	o
	)

◆ onAddBackLinks() [1/2]

void Core::CoreDocument::onAddBackLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::list< Core::DocObject * > &	linkList
	)

◆ onAddBackLinks() [2/2]

void Core::CoreDocument::onAddBackLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::unordered_set< Core::DocObject * > &	linkSet
	)

◆ onAddLink()

void Core::CoreDocument::onAddLink	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		Core::DocObject *	o
	)

◆ onAddLinks() [1/2]

void Core::CoreDocument::onAddLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::list< Core::DocObject * > &	linkList
	)

◆ onAddLinks() [2/2]

void Core::CoreDocument::onAddLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::unordered_set< Core::DocObject * > &	linkSet
	)

◆ onBeforeChangeProperty()

void Core::CoreDocument::onBeforeChangeProperty	(	const Core::DocObject *	Who,
		const Property *	What
	)

callback from the Document objects before property will be changed

◆ onChangedDebug()

virtual bool Core::CoreDocument::onChangedDebug	(	Core::DocObject *	o,
		Core::Property *	p
	)

virtual

◆ onChangedProperty()

void Core::CoreDocument::onChangedProperty	(	const Core::DocObject *	Who,
		const Property *	What
	)

callback from the Document objects after property was changed

◆ onFileOpened()

virtual void Core::CoreDocument::onFileOpened ( )

inlinevirtual

Is called when the file was opened, but before the message FileOpened gets emitted. Can be overwritten to add custom behavior.

◆ onRemoveBackLink()

void Core::CoreDocument::onRemoveBackLink	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		Core::DocObject *	o
	)

◆ onRemoveBackLinks() [1/2]

void Core::CoreDocument::onRemoveBackLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::list< Core::DocObject * > &	linkList
	)

◆ onRemoveBackLinks() [2/2]

void Core::CoreDocument::onRemoveBackLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::unordered_set< Core::DocObject * > &	linkSet
	)

◆ onRemoveLink()

void Core::CoreDocument::onRemoveLink	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		Core::DocObject *	o
	)

◆ onRemoveLinks() [1/2]

void Core::CoreDocument::onRemoveLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::list< Core::DocObject * > &	linkList
	)

◆ onRemoveLinks() [2/2]

void Core::CoreDocument::onRemoveLinks	(	PropertyLinkBaseBase *	p,
		Core::DocObject *	from,
		const std::unordered_set< Core::DocObject * > &	linkSet
	)

◆ openTransaction()

int Core::CoreDocument::openTransaction ( const char * name = 0 )

Open a new command Undo/Redo, an UTF-8 name can be specified

Parameters

name	transaction name

This function calls App::Application::setActiveTransaction(name) instead to setup a potential transaction which will only be created if there is actual changes.

◆ recompute() [1/2]

virtual void Core::CoreDocument::recompute ( )

virtual

Recomputes the document.

◆ recompute() [2/2]

virtual void Core::CoreDocument::recompute ( std::function< void(DOCOBJECTS newObj, DOCOBJECTS updatedObj, DOCOBJECTS deletedObj, DOCOBJECTS_ERROR_MAP errorObj)> onRecomputedCB )

virtual

Recomputes the document. Takes a lambda as an argument -> { /*CODE*‍/ auto onRecomputedCB = [this] (DOCOBJECTS newObj, DOCOBJECTS updatedObj, DOCOBJECTS deletedObj, DOCOBJECTS_ERROR_MAP errorObj); }

◆ redo()

bool Core::CoreDocument::redo ( int id = 0 )

Will REDO one step, returns False if no redo was done (Redos == 0).

◆ remove_GUID()

void Core::CoreDocument::remove_GUID	(	const Base::GlobalId &	guid,
		Core::DocObject *	o
	)

protected

Removes a guid without checking.

◆ removeBackLinkInProperties()

void Core::CoreDocument::removeBackLinkInProperties	(	const Core::DocObject *	source,
		Core::DocObject *	link
	)

◆ removeLinkInProperties()

void Core::CoreDocument::removeLinkInProperties	(	const Core::DocObject *	source,
		Core::DocObject *	link
	)

◆ removeObject()

void Core::CoreDocument::removeObject ( Core::DocObject * e )

Removes an object from the document.

◆ removeObjectFinal()

virtual void Core::CoreDocument::removeObjectFinal	(	Core::DocObject *	e,
		bool	deep = `false`
	)

virtual

Removes an object from the document.

◆ removeObjects()

void Core::CoreDocument::removeObjects ( const std::vector< Core::DocObject * > & objects )

Removes objects from the document.

◆ removeReferenceFrom()

void Core::CoreDocument::removeReferenceFrom ( Core::DocObject * from )

◆ renameTransaction()

void Core::CoreDocument::renameTransaction	(	const char *	name,
		int	id
	)

Rename the current transaction if the id matches.

◆ renameTypeFromOlderVersions()

virtual bool Core::CoreDocument::renameTypeFromOlderVersions	(	int	,
		Base::String &
	)

inlineprotectedvirtual

Handles renaming of types between versions. This method looks whether it is necessary to create object of different type when restoring objects. Returns True if something was changed, false when there is no change.

◆ replaceLink()

bool Core::CoreDocument::replaceLink	(	Core::DocObject *	old,
		Core::DocObject *	newLink
	)

◆ resetHasErrorObjectsInRecompute()

void Core::CoreDocument::resetHasErrorObjectsInRecompute ( )

reset result of last recompute();

◆ resolveLinkInDocument()

void Core::CoreDocument::resolveLinkInDocument ( Core::PropertyLinkBase * link )

protected

After opening a document this method restores the links declared in the document header.

◆ restoreDirectory()

virtual void Core::CoreDocument::restoreDirectory ( const QString & )

inlineprotectedvirtual

Restores directory to temp.

◆ restoreDocument()

virtual int Core::CoreDocument::restoreDocument	(	Base::XMLReader &	reader,
		Core::Attachments &	attachments
	)

protectedvirtual

Restores the document. Returns the doc version of the restored document.

◆ restoreFileFromZip()

bool Core::CoreDocument::restoreFileFromZip	(	const Base::String &	entryName,
		const Base::String &	targetpath,
		bool	binaryMode
	)

◆ restoreGlobalAttachment()

virtual bool Core::CoreDocument::restoreGlobalAttachment	(	Base::GlobalAttachment *	gAtta,
		std::istream *	,
		uint64_t	streamsize,
		const Base::String &	entryName
	)

virtual

◆ restoreObject()

virtual Core::DocObject* Core::CoreDocument::restoreObject	(	const std::string &	typeName,
		const std::string &	typeHierarchy,
		const std::string &	id
	)

protectedvirtual

Tries to restore an object from a given type name.

◆ restoreProperty()

void Core::CoreDocument::restoreProperty	(	Core::Property *	property,
		const Base::String &	name,
		Base::AbstractXMLReader &	reader,
		Base::PersistenceVersion &	version
	)

overrideprotectedvirtual

Restores property from from reader in specified version.

Reimplemented from Core::PropertyContainer.

◆ saveAs()

virtual bool Core::CoreDocument::saveAs ( const Base::String & filename )

virtual

Saves the document under this name*.

◆ saveAsFile()

bool Core::CoreDocument::saveAsFile	(	const Base::String &	filename = `Base::String()`,
		bool	toExport = `false`,
		bool	saveBackupCopy = `false`,
		const Base::String &	initialDir = `Base::String()`
	)

Saves a new file under this name.

◆ saveAsFileVersion()

bool Core::CoreDocument::saveAsFileVersion	(	int	aMajorVersion,
		int	aMinorVersion,
		const Base::String &	filename = `Base::String()`,
		bool	toExport = `false`,
		bool	saveBackupCopy = `false`,
		const Base::String &	initialDir = `Base::String()`,
		bool	dontRename = `false`
	)

Saves a new file under this name.

◆ saveCopy()

bool Core::CoreDocument::saveCopy ( const Base::String & filename )

Saves a copy of the current document, no notify, only store the doc under this name.

◆ saveDocument()

virtual void Core::CoreDocument::saveDocument	(	std::shared_ptr< Base::AbstractWriter >	writer,
		int	versionMajor2save,
		int	versionMinor2save,
		bool	showProgress
	)

protectedvirtual

Saves the document.

◆ saveFile()

bool Core::CoreDocument::saveFile	(	bool	toExport = `false`,
		bool	saveBackupCopy = `false`
	)

Saves the file.

◆ setChanged()

virtual void Core::CoreDocument::setChanged ( bool changed )

virtual

◆ setFullFileName()

void Core::CoreDocument::setFullFileName ( const Base::String & fullfilename )

Sets the full file name including the path.

◆ setGuidPolicy() [1/2]

void Core::CoreDocument::setGuidPolicy ( const Base::GlobalId_Policy & policy )

Sets the default GUID policy. This determines what should be done if identical GUIDs are imported.

◆ setGuidPolicy() [2/2]

void Core::CoreDocument::setGuidPolicy	(	const Base::String &	suffix,
		const Base::GlobalId_Policy &	policy
	)

Sets the GUID policy for a file suffix. This determines what should be done if identical GUIDs are imported from files with this suffix.

◆ setImportedIFCFile()

void Core::CoreDocument::setImportedIFCFile ( QString a )

◆ setMaxUndoStackSize()

void Core::CoreDocument::setMaxUndoStackSize ( unsigned int UndoMaxStackSize = 20 )

Set the Undo limit as stack size.

◆ setOnSaveChangeToDefaultUser()

void Core::CoreDocument::setOnSaveChangeToDefaultUser ( bool onoff )

If true: Change to default user on next change. Usually from IFC User to Lexocad User.

◆ setRecommendFileNameForSave()

void Core::CoreDocument::setRecommendFileNameForSave ( const Base::String & s )

◆ setSaveBlocksUntilFinished()

void Core::CoreDocument::setSaveBlocksUntilFinished ( bool onoff )

If true, saving will block until the whole save is finished and file is ready.

◆ setStatusBits()

void Core::CoreDocument::setStatusBits	(	Status	pos,
		bool	on
	)

set the status bits

◆ setTransactionMode()

void Core::CoreDocument::setTransactionMode ( int iMode )

switch the transaction mode

◆ setUndoLimit()

void Core::CoreDocument::setUndoLimit ( unsigned int UndoMemSize = 0 )

Set the Undo limit in Byte!

◆ setUndoMode()

void Core::CoreDocument::setUndoMode ( int iMode )

switch the level of Undo/Redo

◆ storeDirectory()

virtual void Core::CoreDocument::storeDirectory	(	const QString &	,
		Base::AbstractWriter &
	)

inlineprotectedvirtual

Stores directory at given path to zip stream.

◆ subject_name()

virtual const char* Core::CoreDocument::subject_name ( void )

inlinevirtual

Reimplemented from Base::Subject< Core::DocChanges >.

◆ test_graph()

void Core::CoreDocument::test_graph ( )

◆ testStatusBits()

bool Core::CoreDocument::testStatusBits ( Status pos ) const

return the status bits

◆ undo()

bool Core::CoreDocument::undo ( int id = 0 )

Will UNDO one step, returns False if no undo was done (Undos == 0).

◆ waitForSaveIsFinished()

void Core::CoreDocument::waitForSaveIsFinished ( )

protected

Saving runs in Threads, wait for finish.

Friends And Related Function Documentation

◆ CoreApplication

friend class CoreApplication

friend

◆ CoreDocument_Factory

friend class CoreDocument_Factory

friend

◆ DocumentTimeStampSentinel

friend class DocumentTimeStampSentinel

friend

◆ PropertyGUID

friend class PropertyGUID

friend

Member Data Documentation

◆ _all_objects_map

ObjectMap Core::CoreDocument::_all_objects_map

protected

◆ _all_objects_vector

ObjectVector Core::CoreDocument::_all_objects_vector

protected

◆ _guid_map

std::map<Base::GlobalId, Core::DocObject*> Core::CoreDocument::_guid_map

protected

◆ _hasErrorObjectsInRecompute

bool Core::CoreDocument::_hasErrorObjectsInRecompute = false

protected

◆ _ifcId_map

std::map<long, Core::DocObject*> Core::CoreDocument::_ifcId_map

protected

◆ _immutableObjectsMap

ObjectTypeMap Core::CoreDocument::_immutableObjectsMap

protected

◆ _needRestoreBeforeRecompute

bool Core::CoreDocument::_needRestoreBeforeRecompute = false

protected

◆ _recomputeCnt

size_t Core::CoreDocument::_recomputeCnt = 0

protected

◆ _references

std::set<Core::DocObject*> Core::CoreDocument::_references

protected

◆ _relGraph

RelGraph* Core::CoreDocument::_relGraph

protected

◆ _relGraphBackLink

RelGraph* Core::CoreDocument::_relGraphBackLink

protected

◆ _state

DocumentState Core::CoreDocument::_state

protected

◆ _typeObjects

ObjectTypeMap Core::CoreDocument::_typeObjects

protected

◆ application_mainversion

Core::PropertyIndex Core::CoreDocument::application_mainversion

◆ application_minorversion

Core::PropertyIndex Core::CoreDocument::application_minorversion

◆ architect

Core::PropertyText Core::CoreDocument::architect

◆ comment

Core::PropertyText Core::CoreDocument::comment

◆ company

Core::PropertyText Core::CoreDocument::company

◆ compatibleInfo

Core::PropertyText Core::CoreDocument::compatibleInfo

◆ createdBy

Core::PropertyText Core::CoreDocument::createdBy

◆ creationDate

Core::PropertyText Core::CoreDocument::creationDate

◆ documentChanges

Core::PropertyIndex Core::CoreDocument::documentChanges

◆ documentGUID

Core::PropertyText Core::CoreDocument::documentGUID

◆ documentMaxID

Core::PropertyIndex Core::CoreDocument::documentMaxID

◆ documentTypeName

Core::PropertyText Core::CoreDocument::documentTypeName

◆ documentVersion

Core::PropertyText Core::CoreDocument::documentVersion

◆ filename

Core::PropertyText Core::CoreDocument::filename

◆ fileName

Base::String Core::CoreDocument::fileName

◆ lastModifiedBy

Core::PropertyText Core::CoreDocument::lastModifiedBy

◆ lastModifiedDate

Core::PropertyText Core::CoreDocument::lastModifiedDate

◆ mSolvingEnabled

bool Core::CoreDocument::mSolvingEnabled = true

protected

◆ name

Core::PropertyText Core::CoreDocument::name

◆ projectNumber

Core::PropertyText Core::CoreDocument::projectNumber

◆ signalBeforeChangeObject

boost::signals2::signal<void(const Core::DocObject&, const Core::Property&)> Core::CoreDocument::signalBeforeChangeObject

signal on visibility changed Object

signal before changing an Object

◆ signalBeforeRecompute

boost::signals2::signal<void()> Core::CoreDocument::signalBeforeRecompute

Signals before recompute.

◆ signalChangedObject

boost::signals2::signal<void(const Core::DocObject&, const Core::Property&)> Core::CoreDocument::signalChangedObject

signal on changed Object

◆ signalDefectLinks

boost::signals2::signal<void(const std::vector<Core::LinkError>&)> Core::CoreDocument::signalDefectLinks

Signals defect links from object1 to object2.

◆ signalDeletedObject

boost::signals2::signal<void(const Core::DocObject&)> Core::CoreDocument::signalDeletedObject

signal on deleted Object

◆ signalDocChanges

boost::signals2::signal<void(Core::DocChanges&)> Core::CoreDocument::signalDocChanges

Signals DocChanges (To be removed)

◆ signalNewFile

boost::signals2::signal<void()> Core::CoreDocument::signalNewFile

Signals new file.

◆ signalNewObject

boost::signals2::signal<void(const Core::DocObject&)> Core::CoreDocument::signalNewObject

signal on new Object

◆ signalRecomputed

boost::signals2::signal<void(const std::vector<Core::DocObject*>&, const std::vector<Core::DocObject*>&,const std::vector<Core::DocObject*>&)> Core::CoreDocument::signalRecomputed

Signals NewObjects, UpdatedObjects, DeletedObjects being recomputed.

◆ signalRecomputedErrorObjects

boost::signals2::signal<void(const std::map<Core::DocObject*, std::vector<std::string>>&)> Core::CoreDocument::signalRecomputedErrorObjects

Signals recomputed error DocObjects.

◆ signalRecomputeError

boost::signals2::signal<void()> Core::CoreDocument::signalRecomputeError

Signals a recompute error.

The documentation for this class was generated from the following file:

D:/CadworkJobs/SoftwareProjekte/Lexocad/LexoGit/Lexocad/lexocad/Core/include/Core/CoreDocument.h

Public Types

Public Member Functions

Public Attributes

Friends

Signals of the document

Additional Inherited Members

Member Enumeration Documentation

◆ Status

Constructor & Destructor Documentation

◆ CoreDocument() [1/2]

◆ CoreDocument() [2/2]

◆ ~CoreDocument()

Member Function Documentation

◆ __getEnableTimeStamps__()

◆ __setEnableTimeStamps__()

◆ _abortTransaction()

◆ _checkTransaction()

◆ _clearRedos()

◆ _commitTransaction()

◆ _openTransaction()

◆ abortTransaction()

◆ add_GUID()

◆ addFileToZip()

◆ addImmutableObject()

◆ addImmutableObject_NoCheck()

◆ addImmutableObjectMaterial()

◆ addInventorDirectory()

◆ addNewObjectsToGraph()

◆ addObject()

◆ addPropertyLinkError()

◆ addReferenceFrom()

◆ addToDocumentMaps()

◆ askAndSetNewFilename()

◆ breakLinks()

◆ build_savemap()

◆ check_graph()

◆ checkAndConfigureOpenedDocument()

◆ checkAndConfigureOpenedDocumentAfterRecompute()

◆ checkBeforeObjectRestoring()

◆ checkDeletedObjectLinks() [1/2]

◆ checkDeletedObjectLinks() [2/2]

◆ checkObjectLinks() [1/3]

◆ checkObjectLinks() [2/3]

◆ checkObjectLinks() [3/3]

◆ checkRelGraph()

◆ cleanTempDirectory()

◆ cleanUndoStack()

◆ clearCopyType()

◆ clearUndos()

◆ commitTransaction()

◆ convertFromOlderVersions()

◆ copyObject() [1/2]

◆ copyObject() [2/2]

◆ copyObjectShallow()

◆ copySharedObject()

◆ copyToDifferentType()

◆ createBackupFile()

◆ createBackupFileAfterOpeningDoc()

◆ createGroundPlate_deprecated()

◆ createObject()

◆ createObjectFromType()

◆ createObjectFromTypeName()

◆ createTempDirectory()

◆ deleteObject()

◆ dumpGraph()

◆ emitAndNotify()

◆ forceBackupOnNextSave()

◆ getAllLinksByProperties()

◆ getAppVersionFromDocument()

◆ getAvailableRedoNames()

◆ getAvailableRedos()

◆ getAvailableUndoNames()

◆ getAvailableUndos()

◆ getBackLinksByProperties()

◆ getBackLinksFromMe()

◆ getBackLinksToMe()

◆ getCopyType()

◆ getDefaultVersionToSave()

◆ getDocumentState()

◆ getDocumentVersion()

◆ getEnableTimeStamps()

◆ setEnableTimeStamps()
